CTC Union INJ-IG60-24 Quick Installation Manual

CTC Union Technologies Co., Ltd.
Far Eastern Vienna Technology Center
(Neihu Technology Park)
8F, No. 60 Zhouzi St., Neihu District, Taipei 114
Taiwan
T +886-2-26591021
F +886-2-26590237
E sales@ctcu.com
To download this QIG or a more complete user manual, please visit
http://www.ctcu.com/Industrial/
© 2014 CTC Union Technologies Co., Ltd.
All trademarks are the property of their respective owners.
Technical information in this document is subject to change without notice.

Introduction

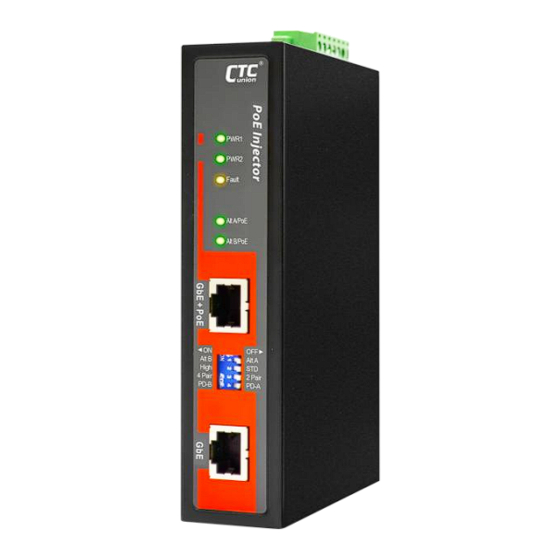

INJ-IG60-(E)24 is an industrial grade, single port, gigabit
Ethernet PoE (Power over Ethernet) injector. PoE technology
describes a system to pass electrical power safely, along with data,
on Ethernet cabling. The original IEEE 802.3af-2003 PoE standard
provides up to 15.4W of DC power to each device. The updated
IEEE 802.3at-2009 PoE standard also known as PoE+ or PoE plus,
provides up to 30W of power. Additionally, INJ-IG60-(E)24 can
provide up to 60W/72W through the non-standard use of all 4
pairs of category 5e cable. Housed in a rugged DIN rail or wall
mountable enclosure, this product is designed for harsh
environments, such as industrial
transportation systems (ITS) and is also suitable for many military
and utility market applications where environmental conditions
exceed commercial product specifications. Standard operating
temperature range models (-10°C to 60°C) and wide operating
temperature range models (-40°C to 75°C) fulfill the special needs
of industrial automation applications.

Features

 Provide one port IEEE 802.3af/at PoE
 Provide power up to 36W (2 pair mode) and 72W (4 pair mode)
 Function settings via DIP switch for easy installation
 24/48VDC (20VDC~57VDC) redundant dual input power and
built-in very high efficient power booster
 Constant and regulated PoE voltage at 55VDC
 Alarm relay output for power failure
 Smart LED indication
 Support auto detection and classification for PoE application
 Support short-circuit and current-overloading protection for
PoE application
 Industrial grade EMS, EMI, EN50121-4, EN61000-6-2,
EN61000-6-4
 Wide operating temperature range -40°C~75°C (INJ-IG60-E24)
 IP30 rugged metal housing

Specifications

Ethernet Interface
 Data input: Cat. 5e (above) RJ-45 (shielded) 10/100/1000M x 1
 Data + PoE output: Cat. 5e (above) RJ-45 (shielded)
10/100/1000M x 1
 Standards: IEEE 802.3, 802.3u, 802.3ab
 PoE Standards: IEEE 802.3af, IEEE 802.3at
www.ctcu.com
networking, intelligent
- 1 -

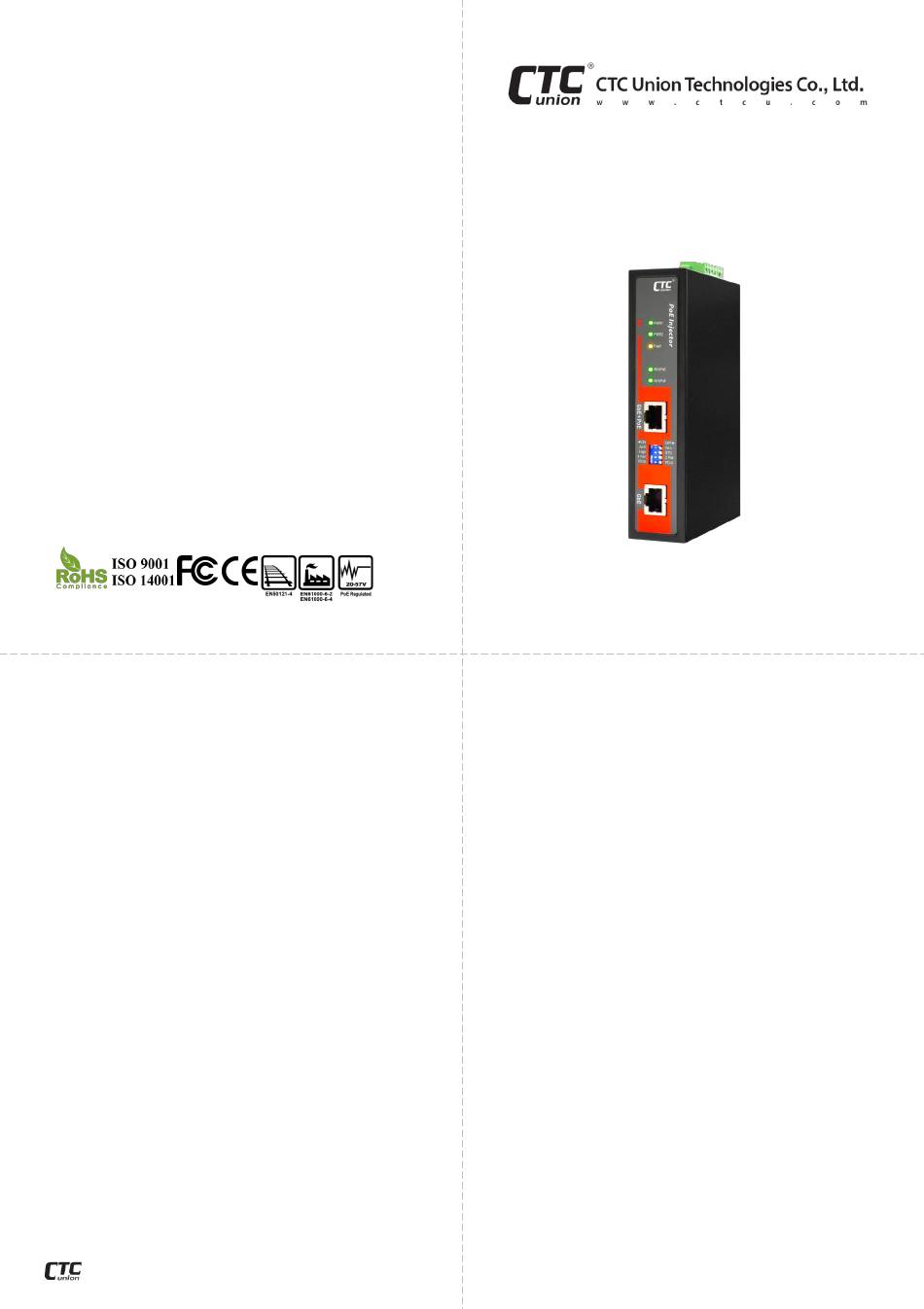

Quick Installation Guide
INJ-IG60-24 (V1.2)
INJ-IG60-E24 (V1.2)
Industrial Grade Gigabit Ethernet PoE Injector
sales@ctcu.com
Specifications (cont.)
Power
 24/48VDC (20VDC~57VDC) redundant dual input power
 Reverse polarity protection: Yes
 Overload protection: Yes
 Connector: terminal block
 PoE Power Output: Ultra High Power 60W/72W PoE output
IEEE 802.3at 30W PoE output
IEEE 802.3af 15.4W PoE output
 Consumption: Max. 31.5W@24VDC (30W for PoE output)
Max. 61.8W@24VDC (60W for PoE output)
Mechanical
 Water & Dust Proof: IP30 Protection
 Dimensions: 106 mm (D) x 39 mm (W) x 142 mm (H)
 Mounting: DIN-Rail, Wall Mount (kits included)
 Weight: 425 g
Environmental
 Operating Temperature: -10°C~60°C (INJ-IG60-24)
-40°C~75°C (INJ-IG60-E24)
 Storage Temperature: -40°C~85°C
 Humidity: 5%~95% (Non-condensing)
Certifications
 EMC: CE
 EMI (Electromagnetic Interference): FCC, FCC Part 15 Subpart
B Class A, CE EN55022 Class A
 Railway Traffic: EN50121-4
 Immunity for Heavy Industrial Environment: EN61000-6-2
 Emission for Heavy Industrial Environment: EN61000-6-4
 EMS (Electromagnetic Susceptibility) Protection Level:
 EN61000-4-2 (ESD) Level 3, Criteria B
 EN61000-4-3 (RS) Level 3, Criteria A
 EN61000-4-4 (Burst) Level 3, Criteria A
 EN61000-4-5 (Surge) Level 3, Criteria B
 EN61000-4-6 (CS) Level 3, Criteria A
 EN61000-4-8 (PFMF, Magnetic Field) Field Length:
300A/m, Criteria A
 Safety: UL60950-1 (Pending)
 Shock: EN60068-2-27
 Freefall: EN60068-2-32
 Vibration: EN60068-2-6
 MTBF (MIL-HDBK-217): 763,725 hours
- 2 -
V1.2
