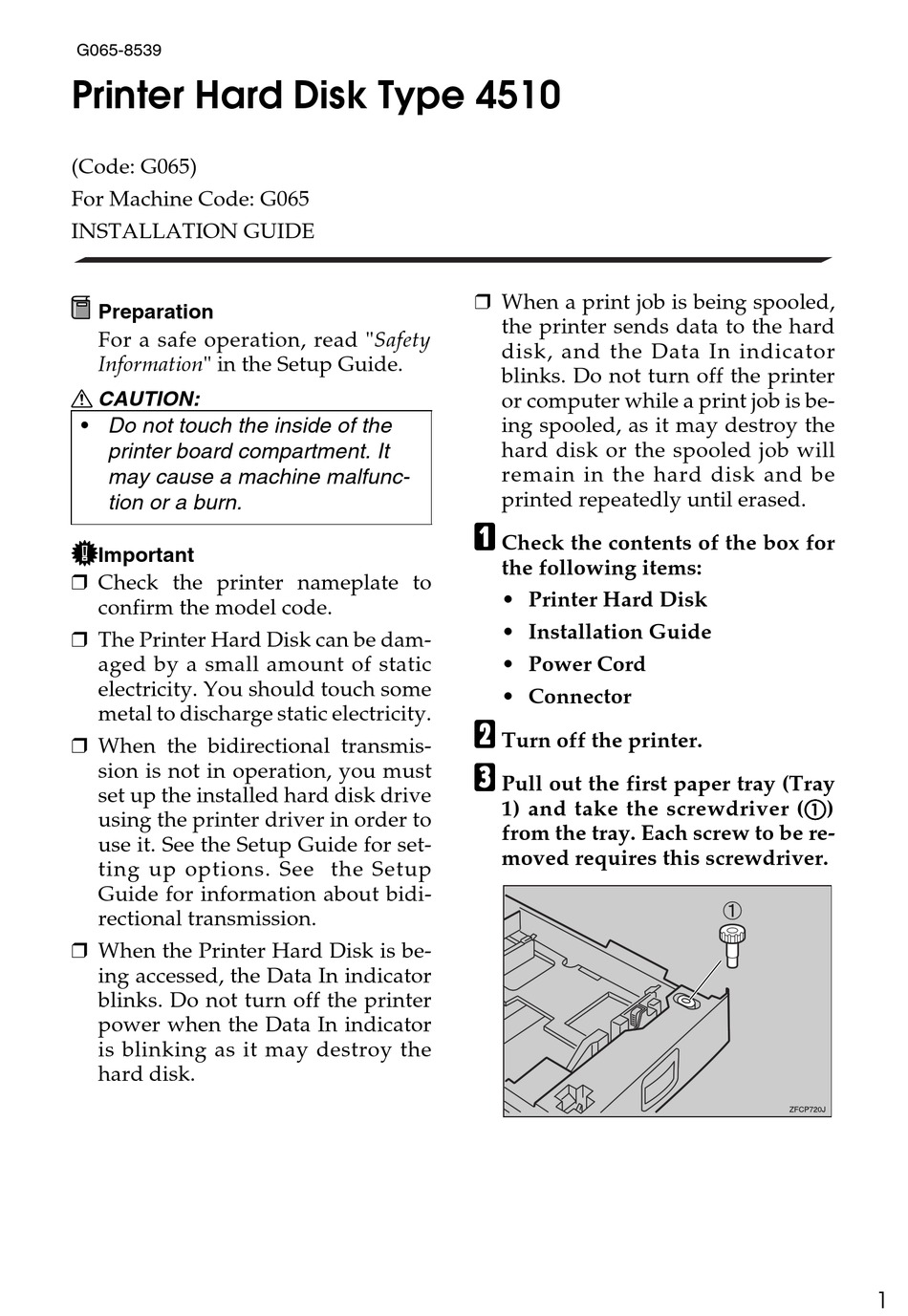

Ricoh AP4510 Installation Manual

G065-8539
Printer Hard Disk Type 4510
(Code: G065)
For Machine Code: G065
INSTALLATION GUIDE
Preparation
For a safe operation, read "Safety
Information" in the Setup Guide.
R CAUTION:
• Do not touch the inside of the
printer board compartment. It
may cause a machine malfunc-
tion or a burn.
Important
❒ Check the printer nameplate to
confirm the model code.
❒ The Printer Hard Disk can be dam-
aged by a small amount of static
electricity. You should touch some
metal to discharge static electricity.
❒ When the bidirectional transmis-
sion is not in operation, you must
set up the installed hard disk drive
using the printer driver in order to
use it. See the Setup Guide for set-
ting up options. See the Setup
Guide for information about bidi-
rectional transmission.
❒ When the Printer Hard Disk is be-
ing accessed, the Data In indicator
blinks. Do not turn off the printer
power when the Data In indicator
is blinking as it may destroy the
hard disk.
❒ When a print job is being spooled,
the printer sends data to the hard
disk, and the Data In indicator
blinks. Do not turn off the printer
or computer while a print job is be-
ing spooled, as it may destroy the
hard disk or the spooled job will
remain in the hard disk and be
printed repeatedly until erased.
A
Check the contents of the box for
the following items:
• Printer Hard Disk
• Installation Guide
• Power Cord
• Connector
B
Turn off the printer.
C
Pull out the first paper tray (Tray
1) and take the screwdriver (A A A A )
from the tray. Each screw to be re-
moved requires this screwdriver.
1
