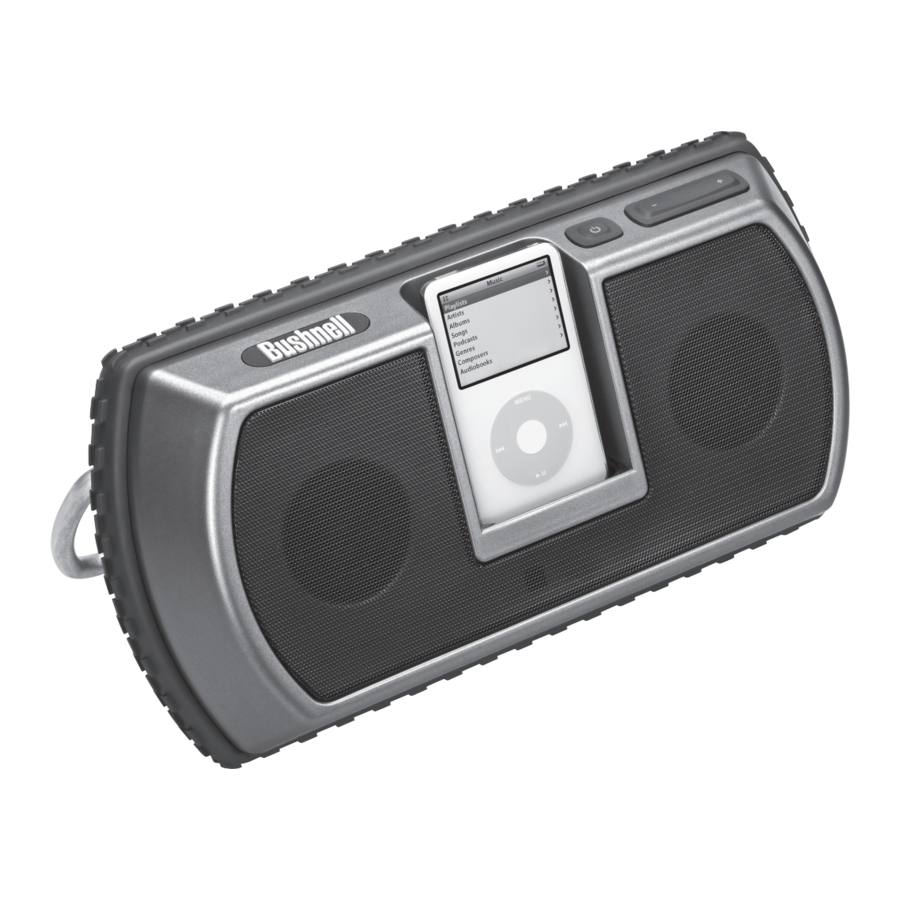

Bushnell TravelTunes 1.0, 940001-940001G-940001AP - Portable Speaker System Manual

FEATURES

• Engineered for optimal sound quality in the outdoors
• Water resistant 2.25" speakers
• 5 watts per channel amplifier w / "Z-Bass" boost
• Extended battery life with 8 "C" cells (not included)
• iPod recharges in dock (when using AC adapter)
• Compatible with all "docking" iPods including Nano and Mini
• 1/8" input jack for other MP3 players including iPod Shuffle
• Rubber coated exterior and rugged rubber trim
• Water resistant battery compartment
• Rubber doors protect iPod connector, rear panel jacks, and batteries
• Sturdy metal carry handle/folding stand
• Includes carrying case, AC adapter, remote control, dock inserts for G, G and Mini iPods (for G video iPods and Nano, use the dock inserts supplied by Apple with the iPod-see adapter chart)

Remote Control

Technical Specifications

Speakers: 2 x 2.25" driver w/neodymium magnet
Frequency response: 160Hz~20kHz
Amp: 2 x 5 watts per channel (rms)
Power: 8 x "C" batteries or AC adapter (provided)
Remote battery type: 3v lithium CR0
Operating temperature range (speakers): -25 ~ +60^oC
(-13~+140^oF), up to 9% humidity
Dimensions 7" (H) x 13.5" (W) x 3.25" (D)

All brand and/or product names are trademarks of their respective owners.
Specifications are subject to change without prior notice.

SETUP AND OPERATION

1. Install 8 "C" size alkaline batteries as indicated inside the battery compartment on the back of the TravelTunes, after pressing the tab at the top of the compartment cover to remove it (be sure the batteries are all securely in place before replacing the battery compartment cover), or connect the included AC adapter to the "DC 12v" input jack located behind the rubber strip on the lower right of the back panel, then plug the AC adapter into a wall outlet. Note that the AC adapter will charge a docked iPod, but the batteries will not. Make sure the TravelTunes power is off before "docking" an iPod or making any other connections.

   Main battery compartment interior (cover removed)
2. The versatile metal handle can be used in the upright position to carry the TravelTunes around, but should be moved down into the lower position to act as a stand when using the TravelTunes. Be sure the handle has locked securely into the stand position before proceeding.
3. If you will be using an iPod that has a docking port on the bottom, first lift the rubber dock connector cover (Fig 1a) on the TravelTunes up and press it into place in the indented area above the dock connector cover (Fig.1b). Then snap the plastic docking adapter designed for your model of iPod (see chart on next page) in place over the TravelTunes dock connector. Then insert the iPod carefully into the adapter, making sure the connector goes into the docking port on your iPod. If the iPod does not seem to fit, please check to make sure you installed the correct adapter for your model. iPod models without a docking port (Shuffl e, etc.) as well as other MP3 players and audio devices may be used as well, by connecting their headphone or line out jacks to the "Aux" jack on the back of the TravelTunes, located behind the rubber strip (Fig 2). This connection can be made with a short male-to-male 1/8"(3.5mm) stereo cable (not included, but provided with many portable audio devices or available at electronics retailers).


   Fig. 2-Rear Panel Jacks (L>R: AC Adapter In, Headphone Out, Aux/External Audio In)
4. Turn on the iPod or connected audio device (if it is not already on), then press the power button ( ) on the top of the TravelTunes. The LED power indicator will come on, and glow green. The LED will turn red to indicate a low battery condition.
5. Press Play on the iPod or connected device, and adjust the listening level with the volume rocker switch located next to the power button on top of the TravelTunes. Press and release or hold down the end of the volume control marked "+" to increase the volume level, and press the end marked "-" to decrease the volume level.Note that the volume control on the iPod itself is bypassed when docked in the TravelTunes. As with any speaker system, distortion may occur at very high volumes. If so, reduce the volume to a lower level. Refer to the "Troubleshooting" section of this manual if you experience other audio quality problems.
6. The included wireless remote control can be used instead of the controls on the TravelTunes to turn on the power, raise or lower volume and also play/pause and select the next or previous song on a docked iPod. The remote uses an infrared beam, and must be pointed towards the sensor behind the front grille of the TravelTunes to control it. Before using it, pull out the plastic protective battery cover sheet.


Model 940001G only
Before using the global version AC adapter, slide the plug adapter that matches the wall outlets in your country onto the AC transformer as shown. To remove the plug adapter, slide it off while pressing the release button as shown.

If the remote does not seem to work, please check the following:

• Move the remote closer to the TravelTunes and try again (max. range is about 18 ft.)
• Be sure you are not at too much of an angle relative to the front of the TravelTunes
• Make sure the iPod is securely mounted on the dock connector, and the iPod's display is on
• Open the remote battery compartment by sliding it straight out, and replace the battery with a new 3 volt lithium #CR0 battery.


DOCK ADAPTER SELECTION CHART

Select the correct dock adapter for your model of iPod based on the information in this chart. The.adapter # is.printed.on.each.included.white.plastic.adapter..Insert.the.adapter into the docking area of the TravelTunes, pressing down carefully until.it clicks into place, with the dock connector projecting through the cutout in the center of the adapter. When removing or changing dock adapters, you may find it helpful to use a small flat blade screwdriver inserted in the indent at the back of the adapter to gently pry up the adapter.

* Note that iPod models shaded in gray were not designed with a docking port/connector, but may be used.(as well as other audio devices with headphone jacks) by using a 1/8" (3.5mm) male-to-male stereo audio cable (not.included) to connect their headphone jack to the "Aux In" jack found on the back of the TravelTunes under the rubber cover strip, next to the AC adapter input.and headphone out jack.

Contact Bushnell Outdoor Products at the URL or customer service phone number provided on the inside cover of this manual with questions regarding compatibility or dock adapters for future iPod models not listed above.

TROUBLESHOOTING

SYMPTOM	POSSIBLE PROBLEM	SOLUTION
Power LED not lit (AC Adapter operation)	AC adapter isn't connected to an AC outlet, or the adapter plug is not inserted into the DC power jack.	Insert the connector from the AC adapter into the DC 12v In jack on the back of the TravelTunes, then plug the adapter into an AC outlet.
	Th e wall outlet is not working or surge protector/power strip is not turned on.	Plug another device into the wall outlet to confi rm it works and make sure any multiple outlet strip being used is turned on.
Power LED not lit (battery operation)	No batteries are installed, or they are installed incorrectly.	Install 8 "C" size alkaline batteries in the direction indicated inside the battery compartment.
Power LED not lit (battery or AC adapter operation)	TravelTunes power not turned on.	Turn on the TravelTunes by pushing the power button ( ) located on top of the unit. A green LED will illuminate the power icon on the button when the power is on.
No sound from speakers	Volume is set too low.	Th e rocker switch next to the power button is the volume control, Press the end marked "+" to increase the volume level.
No sound from speakers or crackling or distorted sound	Th e iPod is not correctly inserted on the dock connector.	Turn off the iPod, lift it off the dock connector, reseat it and turn it on again.
No sound from speakers or crackling or distorted sound	If using a non-docking type of MP3 player or other external audio device, it is not connected properly or there is a problem with this audio source.	Make sure your external audio device is connected to the "aux in" jack on the back of the TravelTunes (not the headphone jack), using a 1/8"(3.5mm) "male to male" stereo cable (not included) plugged into the line out or headphone output of the audio device. Make sure the audio device is turned on and playing. Set the volume on the audio source to mid-level, and start with the volume set low on the TravelTunes, gradually increasing it to the desired level. If sound quality is poor, reduce the volume of the external audio device.
Distorted sound	Th e TravelTunes volume is set too high, or batteries are weak.	Reduce the volume by pressing the "-" end of the volume rocker switch. Check for low battery condition (power LED turns red)
Radio interference	Th e TravelTunes is too close to a radio tower	Relocate the unit to determine if the interference goes away
Intermittent buzzing	A GSM type cell phone is nearby	Move the unit or the cell phone further away.

ADDITIONAL NOTES

Remote Control functions:
All recent models of iPod ("Video" and Nano) will respond normally to the included wireless remote control. However, some of the remote control buttons may not work with older models of the iPod. For example, the "Play/Pause" and "Next Track" & "Previous Track" buttons will not control the "3rd generation" iPod (sold in 2003). The "Power On/Off" button normally turns the iPod on and off, but may not work or may instead turn off the audio on older iPods. If you have an iPod that does not respond to the full range of functions on the included remote, make sure that you are using the newest software version available for your model. Software updates to your iPod can normally be done by selecting "Update iPod" from the "File" menu of iTunes on your computer. For a list of all iPod models to date, along with their current software version, go to: http://docs.info.apple.com/article.html?artnum=61688

If Your iPod Becomes "frozen" or Locked Up (Will Not function):
First, be sure the hold switch has not been set to "lock" on the iPod (a lock icon appears on its screen). Most "freezes" can be fixed with a simple reset procedure.
The steps vary with the model of iPod. For details, go to: http://www.apple.com/support/ipod/ or http://docs.info.apple.com/article.html?artnum=61705

Regarding Battery Disposal:
This product contains a small (non-rechargeable) lithium battery in the remote control. Lithium batteries should be disposed of by taking them to a household hazardous waste collection site. Some retailers that sell lithium batteries also provide a container to collect used batteries for proper disposal.
Batteries not provided with the product should be disposed of following the recommendations of the battery manufacturer. Contact the battery brand manufacturer for directions on battery disposal. Always follow state and local regulations regarding disposal of batteries.
