BOSCHE
Weighing Terminal
GTE / GTW
0
Operating manual
- Translation of the original -
(keep for future use)
Version 2.0
Last revised: 2023-07-17

Advertisement

loading
Need help?

Need help?

Do you have a question about the GTE and is the answer not in the manual?

Questions and answers

Related Manuals for Bosche GTE

Summary of Contents for Bosche GTE

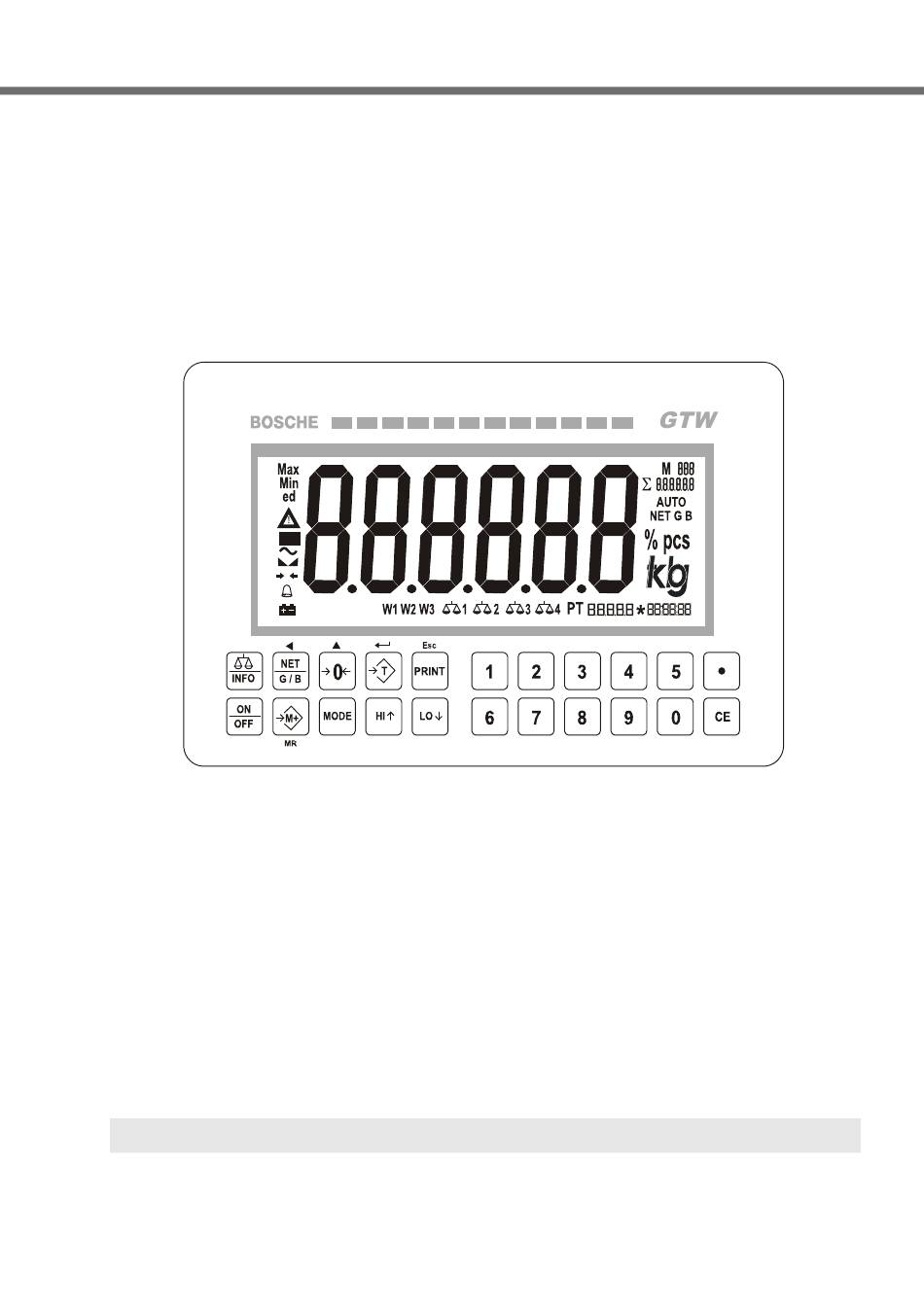

  • Page 1 BOSCHE Weighing Terminal GTE / GTW Operating manual - Translation of the original - (keep for future use) Version 2.0 Last revised: 2023-07-17...
  • Page 3 This manual has been created on: 2023-07-17 Copyright Bosche GmbH & Co. KG retains all rights for this document. Copying, disclosure to third parties or use of its contents are forbidden without our express approval © 2022 Type key...
  • Page 4 Type plate example Typ: S/N: XT50DC22000XXXX Rating: 12 V 1000 mA BOSCHE Wägetechnik GmbH & Co. KG Reselager Rieden 3 49401 Damme 05491-999689-0 www.bosche.eu...
  • Page 5 The manufacturer's contact data is listed on the reverse of the title page. If you have any queries or problems, please contact the manufacturer without delay. Note If you have any questions for Bosche GmbH & Co. KG, please have the serial number to hand. Version 2.0...
  • Page 6 3.2 Packaging and Disposal................14 3.3 Installation and Connection................15 3.4 Device Variants ..................... 16 3.4.1 GTE-N / GTW-N in Stainless Steel Housing ........16 3.4.2 GTE-T / GTW-T in Aluminium Housing..........16 3.5 System Configuration..................17 3.6 Interface ......................18 3.6.1 RS485 ....................
  • Page 7 Foreword Weighing Terminal GTE / GTW 4 Operation ......................23 4.1 Turn On ......................23 4.2 Power Zero Limits ..................24 4.3 Turn Off ......................25 4.4 Auto Off ......................25 4.5 Reseting the Scale to Zero................25 4.6 Zero Tracking ....................26 4.7 Gross - / Net Change ..................
  • Page 8 Weighing Terminal GTE / GTW Foreword 6 Password protected menu (Advanced functions) ......... 87 6.1 Navigation in the protected menu ..............87 6.2 Password protected menu - Overview ............88 6.2.1 Password protected menu - short description........89 6.2.2 Password protected menu P09 - Overview settings ......92 6.2.3 Password protected menu P08 - Overview CAL........
  • Page 9 1 | Safety Weighing Terminal GTE / GTW AFETY This chapter warns against possible risks when handling the device. The information for detection of risks contained in this chapter is intended to allow the save and correct operation. It is important to read and adhere to this operating manual and particularly this chapter prior to operating this device.
  • Page 10 Important notes and information about an efficient, economic and environ- mental friendly handling are specified here. NTENDED The Weighing Terminal GTE / GTW exclusively serves to display the weight in combination with suitable load cells. The load cells are intended for use as "non-automatic weighing instruments".
  • Page 11 The BOSCHE company offers a restricted warranty for components, which became faulty due to strain or material faults. The warranty starts with the date of delivery. The BOSCHE company retains the right to repair or replace components. Repair work executed during the warranty period will not extend the period of warranty.
  • Page 12 Description | 2 ESCRIPTION ENERAL The weighing terminal GTE / GTW has two menu levels for settings. The function menu serves to create and inquire values, which can be changed easily at any time. The menu protected by a password contains all adjustable parameters techni- cally relevant for weighing and the possibility to calibrate the scales.

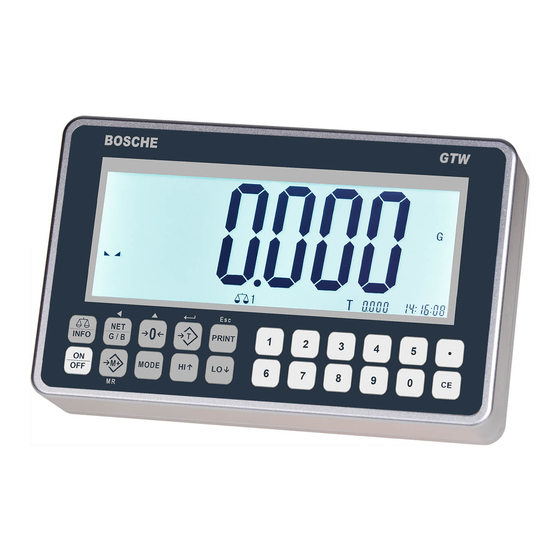

  • Page 13 EIGHING ERMINAL The weighing terminal GTE / GTW is a multifunction scale display and is used to display weighing values obtained in combination with suitable load cells. Up to 4 load cells can be connected. After reaching a stable weight value, the weight value are shown on the display.
  • Page 14 Weighing Terminal GTE / GTW Description | 2 2.2.1 ISPLAY VERVIEW Status indication: the weight on Active scale (the display can the scale above the selected only manage one scale). limit value. Status indication: the weight on Hand tare weighing (Pretara the scale below the selected limit value.
  • Page 15 2 | Description Weighing Terminal GTE / GTW 2.2.2 EGEND FOR THE EIGHING ALUE ISPLAY Version 2.0 BOSCHE Weighing Systems Page 11 2023-07-17...
  • Page 16 Weighing Terminal GTE / GTW Description | 2 2.2.3 EYBOARD VERVIEW Operating level Functional level Opens the "Quick menu" for Opens the function menu when quick settings the button is pressed during the self-test of the scale. INFO Switch between gross and net Moves the activated digit to the weight.
  • Page 17 Weighing Terminal GTE / GTW Value inputs Note The numeric keypad is not available in the GTE version. Numeric keys for enter parameters (tare weights, etc.) Decimal point / decimal separator Clear input value. Is used as a clear key when setting values for parameters or other functions.
  • Page 18 Weighing Terminal GTE / GTW Transport, Installation, Connection | 3 RANSPORT NSTALLATION ONNECTION ONTROL When the display is delivered, check the packaging, the device and possible accessories for visible damages. ACKAGING AND ISPOSAL Keep all parts of the original packaging for a possible return.
  • Page 19 3 | Transport, Installation, Connection Weighing Terminal GTE / GTW NSTALLATION AND ONNECTION Keep the device clean and do not expose to an environment influencing the display accuracy. +5º ~ +40º Protect against tilting a Protect against heat, Protect against draught!
  • Page 20 Weighing Terminal GTE / GTW Transport, Installation, Connection | 3 EVICE ARIANTS 3.4.1 GTE-N / GTW-N TAINLESS TEEL OUSING 232 mm 81 mm 84 mm 232 mm 110 mm 3.4.2 GTE-T / GTW-T LUMINIUM OUSING 45 mm 231 mm Version 2.0...
  • Page 21 3 | Transport, Installation, Connection Weighing Terminal GTE / GTW YSTEM ONFIGURATION In weighing systems, one or more load cells are connected for evaluating the measuring signal. Several load cells of a scale are connected in parallel in a junction box to deliver a common output signal.
  • Page 22 NTERFACE 3.6.1 RS485 The weighing terminals of the GTE/GTW series offer different options to connect load cells / weighing platforms (weighing bridges) to the transmitter. Basically: • Has the weighing terminal on the back one or more 5-pin plugs, these are used to connect 4-wire or 6 wire load cells.
  • Page 23 3 | Transport, Installation, Connection Weighing Terminal GTE / GTW Connecting a 4-wire load cell 5-pin plug connection of 4-wire load cells EXC+ 5 Shield 1 EXC + SIG- Zelle 4 SIG - SIG+ 2 EXC - 3 SIG +...
  • Page 24 In case of damage to the weighing terminal, the verification seal is broken and a replacement device can be connected. Recalibration is then mandatory. For further questions please contact the Bosche customer service. 5-pin plug connection for interface RS485 Pin assignment: 1.
  • Page 25 3 | Transport, Installation, Connection Weighing Terminal GTE / GTW 3.6.2 RS232 The weighing terminal is connected via this interface (COM 1) to a PC or a printer, it prints the weighing results along with the selected weighing unit. 5-pin plug connection for interface RS232 Pin assignment: 1.
  • Page 26 Weighing Terminal GTE / GTW Transport, Installation, Connection | 3 3.6.3 LAN- I NTERFACE The LAN interface is used to exchange and query data in a network. Pin assignment: 1. NC 2. NC 3. NC 4. RX- 5. TX+ 6. RX+ 7.
  • Page 27 4 | Operation Weighing Terminal GTE / GTW PERATION Note The basic functions of the weighing terminal are similar or identical used for all applications. The signal light shown in some pictures can be integrated as an option. The standard version of this weighing terminal does not have a signal light.
  • Page 28 Weighing Terminal GTE / GTW Operation | 4 OWER IMITS Legal for trade: Initial zero setting 20 % of the weighing range. Zero setting +/- 2 % of the weighing range. Not legal for trade: Initial zero setting +/- 100 % of the weighing range.
  • Page 29 4 | Operation Weighing Terminal GTE / GTW If you are in the menu, the scale is turned off without that any changes made are stored. In addition, a voltage tester is connected to indicate a low battery voltage by the battery symbol.
  • Page 30 Weighing Terminal GTE / GTW Operation | 4 Then the scale can be set by Tare button to "zero" and continues to work in the net mode. RACKING The zero point correction automatically corrects minor deviations of the Zero indicator. The zero range can be adjusted between:: 0.25d / 0.5d / 1d / 2d / 3d / 4d...
  • Page 31 4 | Operation Weighing Terminal GTE / GTW EIGHING Display Weighing Unstab Dat & Stab a tive T ar 4.8.1 IMPLE WEIGHING After switching on, the self-test and initialization of the scale, "zero" is shown. 30 kg If the weight of the weighing sample will exceed the set weighing range the fol- lowing message is displayed: >...
  • Page 32 Weighing Terminal GTE / GTW Operation | 4 4.8.2 EIGHING IN ULTI ANGE ULTI NTERVAL To use the weighing terminal as multirange or multi-interval scale, the appropri- ate settings must be made in the password protected menu. Attention Changes in the password-protected menu of a calibrated scale lead to the expiry of the verification.
  • Page 33 4 | Operation Weighing Terminal GTE / GTW EIGHING 4.9.1 ETERMINATION OF ARE BY EIGHING The weight of each weighing container can be removed by pressing , so that the net weight is displayed. Tare (with stable weight): 1 kg...
  • Page 34 Weighing Terminal GTE / GTW Operation | 4 Second tare (e.g. when weighing in several components): 0,6 kg 1 kg 0,6 kg 1 kg Clear Tare Version 2.0 BOSCHE Weighing Systems Page 30 2023-07-17...
  • Page 35 4 | Operation Weighing Terminal GTE / GTW Clear Tare by manual input: 4.9.2 UMERIC NPUT OF Version 2.0 BOSCHE Weighing Systems Page 31 2023-07-17...
  • Page 36 Weighing Terminal GTE / GTW Operation | 4 4.10 EMORY The display has several settings to add weights. Weights are added up manually or automatically. The stored weights are removed by turning off the scale or manually by deleting from memory.
  • Page 37 4 | Operation Weighing Terminal GTE / GTW 4.10.1 ANUAL UMMATION 11 kg oder 11 kg 5 kg max. max. 9999,99 kg Version 2.0 BOSCHE Weighing Systems Page 33 2023-07-17...
  • Page 38 Weighing Terminal GTE / GTW Operation | 4 Possible summation errors (with unstable weight): 11 kg „Memory Error“ 11 kg 5 kg > 9999,99 kg Version 2.0 BOSCHE Weighing Systems Page 34 2023-07-17...
  • Page 39 4 | Operation Weighing Terminal GTE / GTW 4.10.2 EMORY 2 sec 4.10.3 LEAR EMORY „Memory Clear“ Version 2.0 BOSCHE Weighing Systems Page 35 2023-07-17...
  • Page 40 Weighing Terminal GTE / GTW Operation | 4 4.11 UICK MENU 4.11.1 AVIGATION IN THE QUICK MENÜ Navigation Move the active number to the left <LEFT> G / B Change of the parameter <UP> Saving the settings <ENTER> Leaving the functional level (ESCAPE) PRINT Version 2.0...
  • Page 41 4 | Operation Weighing Terminal GTE / GTW 4.11.2 UICK VERVIEW Press the ON/OFF button (2 seconds) to switch on the weighing terminal. Then proceed as follows: 2 sec HILoGo MEMory ALIbI Fvnc dISPL Changes to the weighing mode Version 2.0...
  • Page 42 Weighing Terminal GTE / GTW Operation | 4 4.11.3 UICK HORT DESCRIPTION Note The Quick menu is used for simplified input or reading out of parameters and parameterization of the display. In the Quick Menu parameters to operate at check-weighing, the alibi memory, the printer and backlight and automatic...
  • Page 43 4 | Operation Weighing Terminal GTE / GTW Menu Submenu Option Function CLr.mo a02-00 Do not delete the sum memory. MEnorY CLr.AIb (Clear Alibi Memory) CLr.YES Delete the sum memory. 000000 Display of a specific entry from „ “ flashing -->...
  • Page 44 Weighing Terminal GTE / GTW Operation | 4 Menu Submenu Option Function WEi9h a05-00 Weight measuring Fvnc APP5 Covnt Count applikation (Selection of the active appli- HLG.WEI Percentage cation) HLG.CMT AM1nAL Animal weighing function. PEAK PEAK value storage. HOLd HOLD freezes the currently indi- cated measured value.
  • Page 45 4 | Operation Weighing Terminal GTE / GTW 4.11.4 A01 - O UICK VERVIEW IMIT ALUES Menu navigation HILoGo HiLoGo INFO 2 sec A01-00 HLG.Mod A01-01 beep A01-02 Store A01-03 8ri9hT Version 2.0 BOSCHE Weighing Systems Page 41 2023-07-17...
  • Page 46 Weighing Terminal GTE / GTW Operation | 4 Quick menu A01-00 - HLG.MOD (High-Low-Go-Mode) Menu navigation A01-00 HLG.Mod HiLoGo INFO 2 sec A01-00 3.CoLor 4.CoLor 3.CoLor DonE Version 2.0 BOSCHE Weighing Systems Page 42 2023-07-17...
  • Page 47 4 | Operation Weighing Terminal GTE / GTW Quick menu A01-01 - BEEP (Set acoustic signal) Menu navigation A01-01 bEEP HiLoGo INFO 2 sec A01-01 8E OK 8E Lo 8e Hi 8eHiLo 8e OuL DonE Version 2.0 BOSCHE Weighing Systems...
  • Page 48 Weighing Terminal GTE / GTW Operation | 4 Quick menu A01-02 - STORE (Storage of limit values)) A01-02 Menu navigation StorE HiLoGo INFO 2 sec A01-02 DonE Version 2.0 BOSCHE Weighing Systems Page 44 2023-07-17...
  • Page 49 4 | Operation Weighing Terminal GTE / GTW Quick menu A01-03 - BRIGHT (Settings for the brightness) Menu navigation A01-03 8ri9hT HiLoGo INFO 2 sec A01-03 8ri. 050 flashes Input using the numeric keys Value 0 - 100 DonE Version 2.0...
  • Page 50 Weighing Terminal GTE / GTW Operation | 4 4.11.5 A02 - MEMORY (S UICK EMORY Menu navigation MEnorY HiLoGo INFO 2 sec A02-00 CLr.ALb A02-00 CLr.Mo CLr.mo CLr,YES CL.DonE done Version 2.0 BOSCHE Weighing Systems Page 46 2023-07-17...
  • Page 51 4 | Operation Weighing Terminal GTE / GTW 4.11.6 A03 - A UICK LIBI EQUEST THE LIBI UMBER Menu navigation ALIbI HiLoGo INFO 2 sec A03-00 Edit.Ab flashes A03-01 GET.LSt EdiT.Ab A03-00 A03-00 A03-01 Edit.Ab GET.LSt 000000 flashes or with <UP>...
  • Page 52 Weighing Terminal GTE / GTW Operation | 4 4.11.7 A04 - P UICK RINT ETTINGS Note If parameters such as the date and time have been turned off on the menu, this can not be printed, even then, if the parameters for date and time have been set to ON.
  • Page 53 4 | Operation Weighing Terminal GTE / GTW 4.11.8 A05 - F UICK UNCTIONS Menu navigation Fvnc HiLoGo INFO 2 sec A05-00 Apps Covnt AMInAL PEAK HOLd WEi9h Covnt HLG.WEI done HLG.CnMt HLG.WEI done Version 2.0 BOSCHE Weighing Systems Page 49...
  • Page 54 Weighing Terminal GTE / GTW Operation | 4 HOLD: The Hold function freezes the currently indicated measured value, to allow you to read it. After pressing the -button the display returns to "0". PEAK: Highest measured value This function displays the highest load value (peak value) of an increasing load.
  • Page 55 4 | Operation Weighing Terminal GTE / GTW 4.11.9 A06 - D UICK ISPL ISPLAY Menu navigation D1sPL HiLoGo INFO 2 sec A06-00 8.Li9ht bL AU 8L. 10 bL on bl off Enter Value (in seconds) bL AU 10/20/30...120 DonE DonE Version 2.0...
  • Page 56 Weighing Terminal GTE / GTW Operation | 4 D1sPL A06-00 8.Li9ht A06-02 A06-01 AU Off AU 10 flashes DonE Enter value 0 - 99 (minutes) GTE: Enter with DonE Version 2.0 BOSCHE Weighing Systems Page 52 2023-07-17...
  • Page 57 4 | Operation Weighing Terminal GTE / GTW 4.12 HECK EIGHING With the checkweighing you can specifically check weights. At the check- weighing a beep sounds when the weight on the scale reaches or exceeds a stored limit. 4.12.1 ETTING...
  • Page 58 Weighing Terminal GTE / GTW Operation | 4 Example: Set the limit values oder >HI 60 kg <LO 5 kg <HI >LO 40 kg Version 2.0 BOSCHE Weighing Systems Page 54 2023-07-17...
  • Page 59 4 | Operation Weighing Terminal GTE / GTW Example: Limit value error LOW > HI LOW < HI Version 2.0 BOSCHE Weighing Systems Page 55 2023-07-17...
  • Page 60 Weighing Terminal GTE / GTW Operation | 4 4.12.2 EQUEST OF THE IMIT ALUES 2 sec 2 sec HIGH 50.00 20.00 Example values 4.12.3 LEAR THE IMIT ALUES 2 sec 2 sec HIGH 005000 002000 Press the numeric „CE“ button.
  • Page 61 4 | Operation Weighing Terminal GTE / GTW 4.13 RINTOUT Before a printer can be put into operation, the appropriate parameter settings in the function menu (see technical manual) and in the quick menu (see chapter 4.11.7 “Quick Menu A04 - Pri (Print Settings)“) must be made.
  • Page 62 Weighing Terminal GTE / GTW Operation | 4 4.13.2 „ C“ RINTOUT WITH ELECTED ARAMETER When a weight is placed and it is stable, the indicator sends the following infor- mation to the printer. In addition, the data are stored in the sum memory of the...
  • Page 63 4 | Operation Weighing Terminal GTE / GTW 4.13.3 „PR1“ RINTOUT WITH ELECTED ARAMETER When a weight is placed and it is stable, the indicator sends the following infor- mation to the printer if the PRINT button is pressed. Standard...
  • Page 64 Weighing Terminal GTE / GTW Operation | 4 4.13.4 „PR2“ RINTOUT WITH ELECTED ARAMETER When a weight is placed and it is stable, the indicator sends the following infor- mation to the printer if the PRINT button is pressed. In addition, the data are stored in the sum memory of the weighing terminal.
  • Page 65 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW UNCTION MENU DVANCED FUNCTIONS AVIGATION IN THE FUNCTION MENU Navigation Move the active number to the left <LEFT> G / B Change of the parameter <UP> Saving the settings <ENTER>...
  • Page 66 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 UNCTION MENU VERVIEW To access the function menu, proceed as follows: 2 sec C0M1 Press the “INFO“- Button while the scale counts down. C0M 2 time func SPEEd LEgAL...
  • Page 67 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW 5.2.1 hort description UNCTION MENU Menu Submenu Option Function No data are transmitted F01-01 C0M 1 Mode 1 CONT Continous transmission. C0M 2 Mode 2 Do not use for connected...
  • Page 68 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 Menu Submenu Option Function f01-02 C0M 1 oUtP 1 PRinT 1 Citizen CBM C0M 2 outp 2 PRiNT 2 HPP-250 Peripheral devices PRiNT 3 LP-50 (Selection of the attached PRiNT 4 HPP-250 for pallet trucks HLS.
  • Page 69 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW Menu Submenu Option Function F03-01 // Alibi data blocks: an Setting of the saving method of Sin9LE individual file is created for measured data on the USB each measuring day dur- stick.
  • Page 70 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 Menu Submenu Option Function f06-01 ADC sampling rate Speed SmpLnG Sampling rate of the external ADC (Attention: The setting does usually not require any changes! Effect on the weight calculation!).
  • Page 71 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW 5.2.2 F01 - O COM1 UNKTION MENU VERVIEW Note This manual only describes the settings of interface COM1. The interfaces COM2 is to be set identically. COM1 F01-01 MoDE 1...
  • Page 72 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 Function menu F01-01 - MODE 1 (selection of the transmission mode) F01-01 Mode1 F01-01 COnT F01-02 Note! Automatically changes to the next submenu! Version 2.0 BOSCHE Weighing Systems Page 68...
  • Page 73 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW Function menu F01-02 - OUTP 1 (peripheral devices) F01-02 oUTP1 PRINT1 PRINT2 PRINT3 PRINT4 PRINT5 RMTDSP LIGHTS F01-03 9600 Note! Automatically changes to the next submenu! Version 2.0 BOSCHE Weighing Systems...
  • Page 74 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 Selection of the attached printer or device The indicator transmits the data to different peripheral devices. The peripheral devices must be addressed with specific data formats to interpret or print the received data (from the display) correctly.
  • Page 75 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW PRINT3 Print 2: Data transmitted to printer LP- 50 Data format: N<CR><LF> A0,1,0,0,1,1,B,"01.04.22 14:39:04"<CR><LF> LO0,26,380,3<CR><LF> A0,33,0,0,1,1,B,"Net: Tare: Gross:"<CR><LF> A0,58,0,0,1,1,B," 0.0Kg 0.0Kg 0.5Kg "<CR><LF> LO0,83,380,3<CR><LF> P1<CR><LF> PRINT4 Print 4: Data transmitted to printer HLS Data format: <CAN>_<CAN>_<CAN>_<CAN>_<CAN>_<CAN>_<CAN>_<CAN>_<CAN>_<CA...
  • Page 76 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 RMTDSP rmtdsp: Data transmitted to large display Data format: ST,GS,+ 0.0Kg<CR><LF> LIGHTS Lights: Data transmitted to signal lamp SL 3 Data format: Signal lamo Off: PC <CR><LF> Signal lamp Yellow: PC <CR><LF>...
  • Page 77 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW Function menu F01-03 - BAUD 1 (baud rate) F01 -03 bAUD1 9600 14400 19200 28800 38400 57600 115200 1200 2400 4800 9600 F01-04 Note! Automatically changes to the next submenu! Version 2.0...
  • Page 78 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 Function menu F01-04 - PART 1 (parity) F01-04 PART1 COM1 Version 2.0 BOSCHE Weighing Systems Page 74 2023-07-17...
  • Page 79 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW NWRST Function menu F01-05 - (network reset) F01-05 NWAST1 DoME WAIT COM1 Version 2.0 BOSCHE Weighing Systems Page 75 2023-07-17...
  • Page 80 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 5.2.3 F03- O UNCTION MENU VERVIEW F03-01 5in9Le MULtPL 5in9Le DonE Version 2.0 BOSCHE Weighing Systems Page 76 2023-07-17...
  • Page 81 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW 5.2.4 F04 - O TIME ( UNCTION MENU VERVIEW DATE TIME Note No automatic changing of winter and summer time. time F04-00 HoUr F04-01 F04-02 F04-03 F04-04 Month F04-05 YEAr Version 2.0...
  • Page 82 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 Function menu F04 - TIME (Time and date) F04-00 HoUr Enter (hours) using the numeric keys. flashes flashes Enter (minutes) using the numeric keys. flashes Enter (seconds) using the numeric keys.
  • Page 83 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW flashes Enter (month) using the numeric keys. flashes Enter (year) using the numeric keys. F04-06 Sh ALL Note! Automatically changes to the next submenu! Version 2.0 BOSCHE Weighing Systems...
  • Page 84 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 Function menu F04 - 06 SHOW (show date/time on the display) F04-06 ShoW F04-06 SHDATE SH.ALL SH.oFF SH.TIME SH.DATE DonE Version 2.0 BOSCHE Weighing Systems Page 80 2023-07-17...
  • Page 85 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW 5.2.5 F05 - O UNCTION MENU VERVIEW FUNCTION FUnc F05-01 UnitS F05-02 EHt.dEv Version 2.0 BOSCHE Weighing Systems Page 81 2023-07-17...
  • Page 86 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 Function menu F05-01 UNITS F05-01 UnitS SEL 2 SEL 3 SEL 4 SEL 5 SEL 0 SEL 2 DonE Version 2.0 BOSCHE Weighing Systems Page 82 2023-07-17...
  • Page 87 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW 5.2.6 F06 - O SPEED UNCTION MENU VERVIEW SPeed F06-01 SMPLnG DonE Version 2.0 BOSCHE Weighing Systems Page 83 2023-07-17...
  • Page 88 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 5.2.7 F07 - O UNKTION MENU VERVIEW EGAL Note In the menu item "Legal" the alibi memory can be activated or deac- tivated, when needed. On legal-for-trade scales, the alibi memory is by default always active and can not be disabled.
  • Page 89 5 | Function menu (Advanced functions) Weighing Terminal GTE / GTW F07-02 ALb.SHW F07-02 EditAb EditAb GetL5t F07-02 F07-02 GEtLSt EditAb 000000 flashes Enter using the Number of storded numeric keys. values are displayed. Display Alibi value Version 2.0 BOSCHE Weighing Systems...
  • Page 90 Weighing Terminal GTE / GTW Function menu (Advanced functions) | 5 F07-03 Display TAC counter 0 - 9999 F07-03 Version 2.0 BOSCHE Weighing Systems Page 86 2023-07-17...
  • Page 91 6 | Password protected menu (Advanced functions) GTE / GTW ASSWORD PROTECTED MENU DVANCED FUNCTIONS AVIGATION IN THE PROTECTED MENU Navigation Move the active number to the left <LEFT> G / B Change of the parameter <UP> Saving the settings <ENTER>...
  • Page 92 GTE / GTW Password protected menu (Advanced functions) | 6 ASSWORD PROTECTED MENU VERVIEW Menü-Navigation CoDE C0M1 CoDE INFO Enter the CODE = „0000“ using the <UP> and <LEFT> - - - - keys or the numeric keys then confirm with <ENTER>.
  • Page 93 6 | Password protected menu (Advanced functions) GTE / GTW 6.2.1 hort description ASSWORD PROTECTED MENU Menu Submenu Option Function P07-01 0; 0.0; 0.00; 0.000; 0.0000; Setting of the desired SETINg dEc1 0.00000 number of digits after the decimal point.
  • Page 94 GTE / GTW Password protected menu (Advanced functions) | 6 Menu Submenu Option Function p08-01 Display of the current raw SPAN measured value of the A / „67442“ (example) D converter. Two-point cali- bration (zero Calibration of the zero Zero point, load point.
  • Page 95 6 | Password protected menu (Advanced functions) GTE / GTW Menu Submenu Option Function P09-01 Set the range for Zero-M AU2Ero OFF; 0,25d; 0,5d; 1d; 2d; 3d; 4d “Zero_Tracking”. (Zero tracing function). Off (default) Zero Range Percentage of the capac- P09-02 0;...
  • Page 96 GTE / GTW Password protected menu (Advanced functions) | 6 6.2.2 P09 - O ASSWORD PROTECTED MENU VERVIEW SETTINGS Menü-Navigation SET Ing C0M1 CoDE „0000“ SetIn9 INFO P07-01 dEc1 Dezimalstellen P07-02 Increment size P07-03 Capacity P07-04 Overload P07-05 Underload Multi-range/...
  • Page 97 6 | Password protected menu (Advanced functions) GTE / GTW Password protected menu P07-01 - DECI (decimal place) P07-01 dEcI 0.000 0.0000 0.00000 0.00 0.000 Version 2.0 BOSCHE Weighing Systems Page 93 2023-07-17...
  • Page 98 GTE / GTW Password protected menu (Advanced functions) | 6 Password protected menu P07-02 - INC (increment size) P07-02 DonE Version 2.0 BOSCHE Weighing Systems Page 94 2023-07-17...
  • Page 99 6 | Password protected menu (Advanced functions) GTE / GTW Password protected menu P07-03 - CAP (capacity) P07-03 If multirange/ multi-interval has been selected in the Password protected menu P07-06 (see page 90). CAP.rn1 CAP.max Cap.rn2 Cap.max 020.000 flashes Enter using the numeric keys.
  • Page 100 GTE / GTW Password protected menu (Advanced functions) | 6 Password protected menu P07-05 - OLP (overload control) Note This parameter cannot be changed for vericated systems. P07-04 Version 2.0 BOSCHE Weighing Systems Page 96 2023-07-17...
  • Page 101 6 | Password protected menu (Advanced functions) GTE / GTW Password protected menu P07-05 - ULP (underload control) P07-05 Version 2.0 BOSCHE Weighing Systems Page 97 2023-07-17...
  • Page 102 GTE / GTW Password protected menu (Advanced functions) | 6 Password protected menu P07-06 - RNIN (setting multi-range / multi- interval) P07-06 rnIn Version 2.0 BOSCHE Weighing Systems Page 98 2023-07-17...
  • Page 103 6 | Password protected menu (Advanced functions) GTE / GTW 6.2.3 P08 - O ASSWORD PROTECTED MENU VERVIEW Note Acclimatisation of the weighing system to the environment (min.10 minutes) is necessary for successful calibration. Make sure there are no objects on the weighing plate.
  • Page 104 GTE / GTW Password protected menu (Advanced functions) | 6 Password protected menu P08-01 - SPAN (calibration with reference weight) P08-01 SPAn Display of the raw measured value P08-01 71882 Take all weights off P08-02 ZEro 71875 the scale. Press the button as...
  • Page 105 6 | Password protected menu (Advanced functions) GTE / GTW 2000.00 flashes Enter the calibration weight (min. 50 % of the max. weight) (000000-999999) Display of the raw measured value 277663 done P08-13 Load P08-01 SPAn Version 2.0 BOSCHE Weighing Systems...
  • Page 106 GTE / GTW Password protected menu (Advanced functions) | 6 Function menü P08-02 - mV-V (theoretical calibration with mV/V value of the load cells) P08-02 Mv-v P08-02 FIELD SEn5 tcap 2ero 5ens Version 2.0 BOSCHE Weighing Systems Page 102 2023-07-17...
  • Page 107 6 | Password protected menu (Advanced functions) GTE / GTW P11-01 SEn5 00.2000 flashes Enter using the numeric keys. GTE: Enter with DonE Version 2.0 BOSCHE Weighing Systems Page 103 2023-07-17...
  • Page 108 GTE / GTW Password protected menu (Advanced functions) | 6 P11-01 P11-01 TCAP 2ero 020000 72423 flashes example Enter using the DonE numeric keys. GTE: Enter with P11-01 2ero DonE P11-01 TCAP Version 2.0 BOSCHE Weighing Systems Page 104 2023-07-17...
  • Page 109 6 | Password protected menu (Advanced functions) GTE / GTW Password protected menu P08-03 - GRAVITY (correction) P08-03 GrAvTy 9.81301 flashes Enter using the numeric keys. GTE: Enter with DonE Version 2.0 BOSCHE Weighing Systems Page 105 2023-07-17...
  • Page 110 GTE / GTW Password protected menu (Advanced functions) | 6 Password protected menu P08-04 - CALSL (calibration method) P08-04 CALSL P08-04 FIELD FActorY SPAn FIELD DonE Version 2.0 BOSCHE Weighing Systems Page 106 2023-07-17...
  • Page 111 6 | Password protected menu (Advanced functions) GTE / GTW 6.2.4 P09 - O ZERO ( ASSWORD PROTECTED MENU VERVIEW ZERO MENU ZEro-M P09-01 Auto Zero AUZero Zero Range P09-02 rnzero P09-03 onzero On Zero Version 2.0 BOSCHE Weighing Systems...
  • Page 112 GTE / GTW Password protected menu (Advanced functions) | 6 P09-02 rnzero P09-03 onzero P09-01 AUzero DonE 0.25d 0,5d DonE DonE Version 2.0 BOSCHE Weighing Systems Page 108 2023-07-17...
  • Page 113 6 | Password protected menu (Advanced functions) GTE / GTW 6.2.5 P10 - RESET (R ASSWORD PROTECTED MENU ESET TO FACTORY SETTINGS reset P10-01 DonE Version 2.0 BOSCHE Weighing Systems Page 109 2023-07-17...
  • Page 114 GTE / GTW Password protected menu (Advanced functions) | 6 PPLICATION EXAMPLE FOR A CALIBRATION • Ensure that no load is on the scales. • Switch on the scales using the key “<ON/OFF>”. • Press the key while the scales counts down.
  • Page 115 6 | Password protected menu (Advanced functions) GTE / GTW - The current raw measured value of the A/D converter appears on the display. • Press the key PRINT - Changes to the raW menu. • Press the key - You enter the next submenu.
  • Page 116 GTE / GTW Password protected menu (Advanced functions) | 6 • Press the key 4 x to exit the calibration. PRINT - The following message appears on the display: - The following message appears on the display:: SAve 7 • Press the key - The message “done“...
  • Page 117 7 | Troubleshooting Weighing Terminal GTE / GTW T ROUBLESHOOTING N THE EVENT OF A MALFUNCTION We recommend switching off the scales briefly and disconnecting it from the mains, if a malfunction occurs in the program sequence. Then restart the weighing process.
  • Page 118 If error messages occur again, please contact the Bosche customer service. USTOMER ERVICE ONTACT Bosche GmbH & Co. KG...
  • Page 119 7 | Troubleshooting Weighing Terminal GTE / GTW NFORMATION FOR THE CONTACT TO THE CUSTOMER SERVICE Owner/user Specifications Name of your company Name of a contact person Contact data Telephone Email Tabelle 7.1: Your company Product Specifications Model name Serial number...
  • Page 120 Weighing Terminal GTE / GTW Technical Data | 8 ECHNICAL EIGHING ERMINAL Feature Value / Unit Dimensions (B x H x T) Stainless steel housing • Table unit 232 x 154 x 90 mm • Wall unit 232 x 154 x 110 mm...
  • Page 121 8 | Technical Data Weighing Terminal GTE / GTW COPE OF ELIVERY Component Note Weighing terminal Mains adapter Operating manual Table/wall holder Not included for the version with stand Version 2.0 BOSCHE Weighing Systems Page 117 2023-07-17...
  • Page 122 Weighing Terminal GTE / GTW Customer service | 9 USTOMER SERVICE ONTACTING CUSTOMER SERVICE Bosche GmbH & Co. KG Reselager Rieden 3 49401 Damme +49 5491 999 689 0 +49 5491 999 689 9 E-Mail info@bosche.eu NFORMATION NEEDED WHEN CONTACTING CUSTOMER SERVICE...
  • Page 123 Internet: www.bosche.eu EU-Konformitätserklärung Declaration of conformity • Déclaration de conformité Conformiteitsverklaring • Declaración de conformidad Typ / Modell GTW / GTC / GTE / GTS Type /Model • Modèle für nicht selbsttätige, ungeeichte Waagen Model • Tipo / Modelo for non-automatic, scales pour balances non automatiques et non étalonnées...
  • Page 124 BOSCHE GmbH & Co. KG 05491 999 689 0 Reselager Rieden 3 Fax 05491 999 689 9 49401 Damme www.bosche.eu Germany info@bosche.eu...
