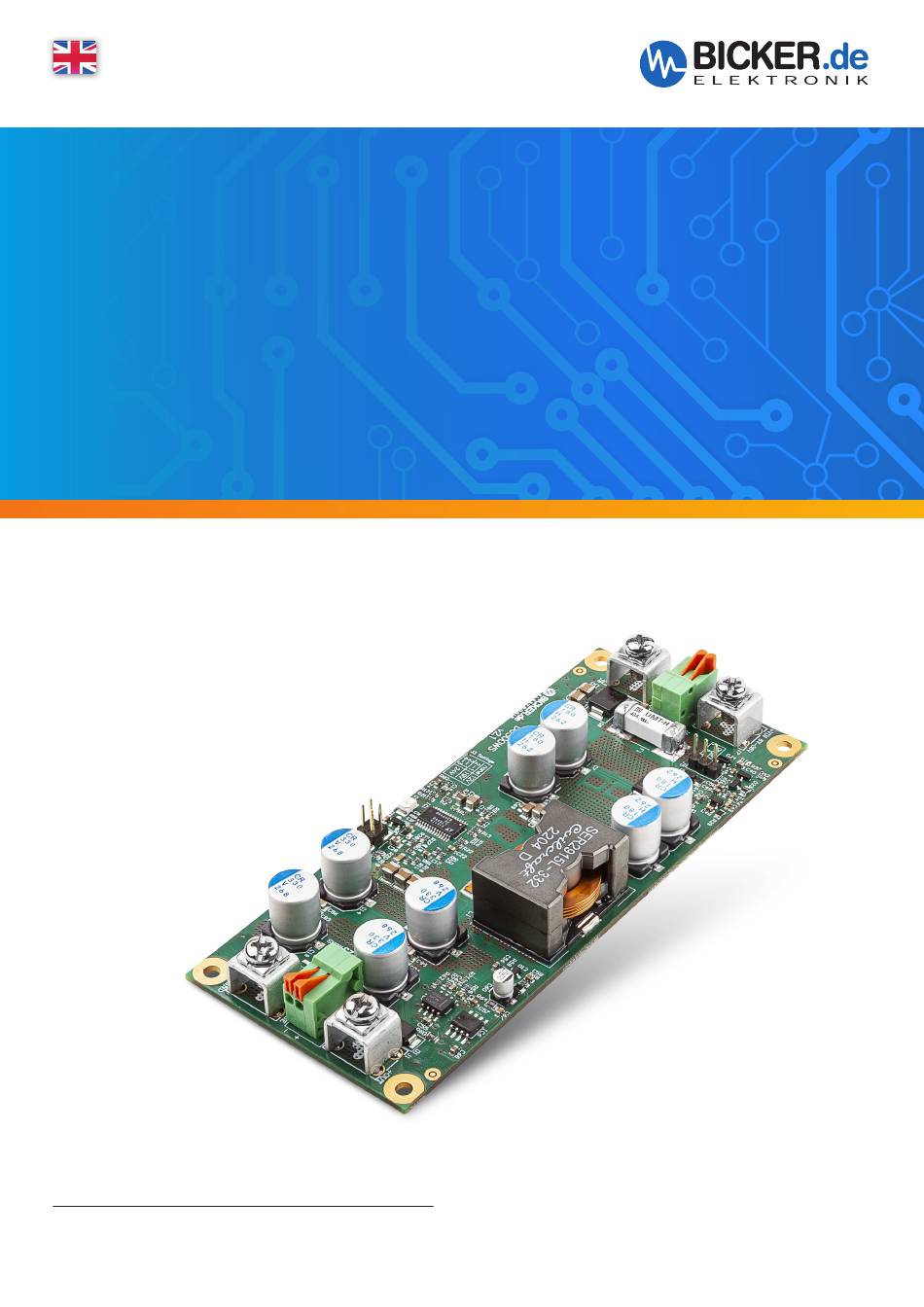

- Page 1 English USER MANUAL USER MANUAL DC300WS DC /DC 300W POWER SUPPLY Bicker Elektronik GmbH Ludwig-Auer-Straße 23 | 86609 Donauwörth · Germany...
- Page 2 DC300WS Legend of used symbols Symbol Description Attention! Important hazard warning. Do not dispose of in the domestic waste. Warning of electrical voltage. Revision Directory Date Change 16.05.2023 Initial version Revision 0-4 19.06.2023 Release version Revision 1-0 Revision 1-0...
- Page 3 DC300WS A Brief specification DC300WS Powerful DC/DC converter with 300 W output power from 6–36 V Ultra wide input range 6…36 V DC Adjustable ourput voltage +12 V, +19 V or +24 V DC Very compact design ...
- Page 4 DC300WS Legend of used symbols ..............................2 Revision Directory ..................................2 Brief specification ....................3 Introduction and description ................5 B1 Description of the product and its functions ....................5 B2 Intended use .................................5 Safety instructions ....................6 Technical Data ....................... 7 D1 General Technical Data ............................7 D2 Derating ..................................
- Page 5 B1 Description of the product and its functions The DC300WS is a powerful DC/DC converter with an output power of up to 300 W and a wide input voltage range of 6 - 36 V. From an input voltage of 11 V, full power can be drawn over the entire ambient temperature range from -20 to +70°C without derating.
- Page 6 4. The assembly of the device and the electrical installation have to be state of the art. 5. The electrical, thermal and mechanical limit values have to be observed. 6. The DC300WS wiring specifications - as described in this manual - have to be followed. Revision 1-0...
- Page 7 DC300WS D Technical Data D1 General Technical Data INPUT DATA Unless otherwise stated, all specifications apply to +25 °C ambient temperature, 6–36 V DC input voltage and nominal output current (I Input voltage Input voltage range 6–36 V DC Electric strength max.
- Page 8 DC300WS OUTPUT DATA Unless otherwise stated, all specifications apply to +25 °C ambient temperature, 6–36 V DC input voltage and nominal output current (I Output voltage 12 V, 19 V, 24 V – adjustable via Jumper Output voltage tolerance +5 % / –1.5 % Capacitive load 4700 µF...
- Page 9 DC300WS GENERAL DATA Flammability class according to UL 94 (housing / terminal blocks) Weight ~115 g UPS connection in parallel UPS connection in series HOUSING Degree of protection n.a. Protection class n.a. Mounting type n.a. Housing version n.a. Dimension W / H / D n.a.
- Page 10 DC300WS INTERFERENCE IMMUNITY ACCORDING TO EN 61000 (INDUSTRY) Basic standard CE Fulfilled requirements according to EN 61000 (CE) (Interference immunity of industrial environment) Electrostatic discharge EN 61000-4-2 Contact discharge 4 kV Air discharge 8 kV Comment Criterion A Fast transients (Burst)
- Page 11 DC300WS D2 Derating 12 V 19 V : Temperature directly at the components Revision 1-0...
- Page 12 DC300WS 24 V : Temperature directly at the components Revision 1-0...
- Page 13 DIN ISO 2768 T2 - K 124,1mm 131,7mm E Name / Address / Support E-Mail / Phone number of the manufacturer Bicker Elektronik GmbH · Ludwig-Auer-Straße 23 · 86609 Donauwörth · Germany E-Mail: support@bicker.de · Tel.: +49 (0) 906 70595-0 Revision 1-0...
- Page 14 F2 Installation and cooling Using the provided gap pad the DC300WS has to be mounted in a metal case via the bottomside of the board. In order to cool the power supply, a heat-absorbing surface of at least 170 cm² and a minimum mate- rial thickness of 1.5 mm are required (drawing below).
- Page 15 UPSI- UPSI- UPSI- DC300WS 2406D 2406D 2406D UPSI- 2406D F3 Anschlussbeschreibung F3 Anschlussbeschreibung F3 Anschlussbeschreibung F3 Description of connectors F3 Anschlussbeschreibung Sense Sense Sense Sense ote On/Off (+) ote On/Off (+) Remote On/Off (+) ote On/Off (+) Sense Sense GND (-)
- Page 16 DC300WS REMOTE SENSE (J4) Via the connection (J4) measuring lines can be connected to the input points of the device to be operated. This automatically compensates for voltage drops caused by high currents, when lines are too long. The connection of the lines must be done when power supplies are switched off! It must be ensured that the polarity is correct and both measuring lines (Sense + and Sense –) have to be connected!
- Page 17 DC300WS F4 Initial operation The correct installation of the power supply has to be ensured. Alle cables at the connectors have to be checked for proper contact, seating and polarity. The desired output voltage is to be set via the jumpers as in „Output voltage configuration“.
- Page 18 F10 Disclaimer We, the Bicker Elektronik GmbH, have checked the contents of this document for compliance with the hard- ware and software described. Nevertheless, deviations can not be ruled out, so we assume no liability for the complete agreement. The information in this publication is checked regularly, necessary corrections are inclu- ded in the updated versions.
- Page 19 Bicker Elektronik GmbH Ludwig-Auer-Straße 23 86609 Donauwörth · Germany Tel. +49 (0) 906 70595-0 Note: Subject to errors and technical modifications! +49 (0) 906 70595-55 Windows® is a registered trademark of the Microsoft Corp. E-Mail info@bicker.de Status as at: 19.06.2023 – Revision 1-0...
