- Page 1 TECHNIVOLT Operating instructions TECHNIVOLT 1100 1100 SMART 2200 SMART Charging station for charging electric vehicles...
- Page 2 LED status indicator ............12 Julius-Saxler-Str. 3 RFID reader and brightness sensor ....... 14 D-54550 Daun, Germany MID energy meter ............14 TechniVolt is a registered trademark of: Charging process ..........15 Autostart charging mode ..........15 TechniVolt GmbH Authorised charging mode ........16 Julius-Saxler-Str.
- Page 3 CE mark and declaration of conformity CE mark and declaration of conformity The TECHNIVOLT charging station has the CE mark. TechniSat hereby declares that TECHNIVOLT 1100, TECHNIVOLT 1100 SMART TECHNIVOLT 2200 SMART equipment complies with Directive 2014/53/EU. The full text of...
- Page 4 TECHNIVOLT 1100 TECHNIVOLT 1100 SMART TECHNIVOLT 2200 SMART and is aimed at people who want to use a TECHNIVOLT charging station. The following text explains how the charging station is connected to the electric vehicle to charge it.
- Page 5 Introduction Symbols used in this manual Symbol Meaning General warning symbol Warns about electrical danger Indicates tips and recommendations Bullet point/List entry • A condition has been met. Step 1, 2, 3...n Steps with a fixed sequence Result of a step Symbols used on the unit Safety signs are affixed to the charging station and must be complied with.
- Page 6 Introduction Warning signs in this manual The following symbols and warning signs are used in this manual and must be observed. Warnings prevent life-threatening or fatal injuries. Observe all notes and follow all instructions. DANGER Indicates a danger that can lead to death or severe injury if not avoided.
- Page 7 Safety information Safety information DANGER Danger to life from electrical power. There is an immediate danger to life by electrocution if you touch live parts. h For your own protection, please read through the safety instructions carefully prior to installation. h Follow all safety instructions.
- Page 8 Safety information • The ambient temperature must be between –25 °C and +50 °C, out of direct sunlight, and the relative humidity must be between 5% and 95%. The charging station may only be used within these operating conditions. • Do not expose the charging station to direct jets of water, such as that from a garden hose or high-pressure cleaner.
- Page 9 Safety information • When repairing the charging station, only system parts approved by the manufacturer may be used. • Signs and markings affixed by the manufacturer must not be altered, removed, or made unrecognisable. • It is forbidden to make any changes to the housing, the charging cable, or the internal circuitry.
- Page 10 Identification of the product variants Identification of the product variants The TECHNIVOLT charging station is available in different versions, which differ electrically and are equipped with different functions. Identify your product using the item no. on the type plate. Variants...

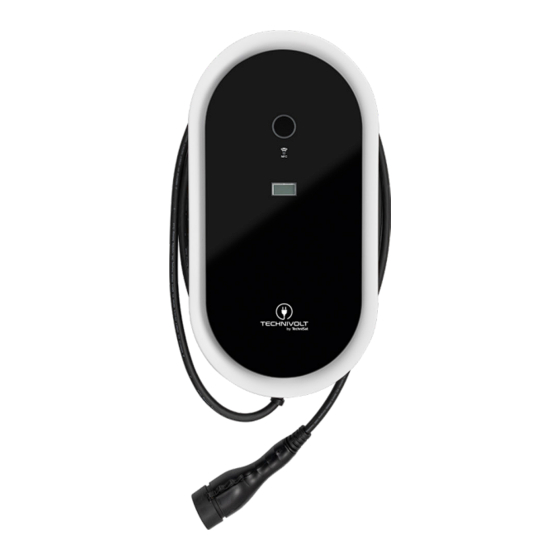

- Page 11 Operating elements and connections Operating elements and connections ❶ Device overview ❷ Light ring, LED status indicator ❸ RFID reader and brightness sensor ❶ ❶ ❹ MID energy meter (SMART only) ❷ ❷ ❺ Front glass panel ❸ ❸ ❻ Charging cable ❼...
- Page 12 Operating elements and connections LED status indicator The TECHNIVOLT charging station is equipped with a multi- coloured, animated LED display that informs you of the status of the charging station. The meanings of the light statuses are described in this chapter.
- Page 13 Operating elements and connections Status of the LED Status of the charging station Rotating green Charging process under way Flashing Charging process is complete green every 2 seconds Rotating The charging current was reduced during the yellow charging process, e.g. due to the charging station overheating.
- Page 14 LED status display. The adjustment is time-delayed. MID energy meter The TECHNIVOLT 1100 SMART and TECHNIVOLT 2200 SMART charging stations are equipped with an energy meter. The energy meter shows the total consumption at the charging station in kWh on its display.
- Page 15 Charging process Charging process The TECHNIVOLT charging station works in Autostart charging mode by default. Autostart charging mode The Autostart charging mode functions without an RFID card. Charging takes place without authorisation. The charging station is ready for charging when the LED status indicator is constantly blue blue.
- Page 16 Charging process Authorised charging mode In authorised charging mode, you use a user RFID card to release the charging station and start the charging process. To this end, a user RFID card must be registered at the charging station (see "User RFID card registration“...
- Page 17 Charging process The LED status indicator lights up green green. The vehicle and charging station are communicating with one another. The LED status indicator lights up rotating green rotating green. The charging process is running and the vehicle is being charged. The LED status indicator flashes green flashes green.
- Page 18 1. Switch to the WLAN settings on your mobile device or PC. The charging station appears under the network name (SSID) TechniVolt [serial number]. Please take the serial number from the type plate. 2. Select the network name TechniVolt [serial number].
- Page 19 You can make a note of it here. User: operator Password: Access the configuration interface - the main menu and dashboard are displayed. The dashboard displays current information about the TECHNIVOLT charging station. ❶ ❶ ❶ Main menu (left menu bar)
- Page 20 You can open a CSV file type using a spreadsheet program such as 'Excel' or 'LibreOffice Calc'. The file gives you an overview of the charging processes in the current and previous month, with the charged energy [Wh] (only TECHNIVOLT SMART with MID). Session Number Start Date Start Time Duration Energy [Wh] RFID-Tag 1 03.11.2021...
- Page 21 Settings on the charging station User RFID card registration For authorised charging mode, a user RFID card is required to start the charging process. Read on to find out how to register user RFID cards at the charging station. ; You have access to the configuration interface and are in the dashboard.
- Page 22 Settings on the charging station Activate authorised charging To use authorised charging, authorisation must be enabled. ; You have access to the configuration interface and are in the dashboard 1. Click on "AUTHORISATION" in the main menu (left menu bar). ...
- Page 23 Faults and fault conditions Faults and fault conditions The TECHNIVOLT charging station has internal protection devices and function monitors. If discrepancies or errors are detected by the protective devices, this is signalled and charging is prevented. Status of the LED...
- Page 24 Shutting down and restarting the charging station Shutting down and restarting the charging station The charging station does not have its own mains switch. The charging station can be taken out of service temporarily or for the long-term if required. Carry out the following steps: 1.
- Page 25 Maintenance and cleaning Maintenance and cleaning The TECHNIVOLT charging station does not require any periodic maintenance. In the event of contamination, the charging station can be wiped down using a soft damp cloth. Do not use any solvent-based, aggressive or abrasive cleaning agents.
- Page 26 Disposal Disposal Electronic devices do not belong in the household waste and must be disposed of properly in accordance with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL dated 04 July 2012 concerning waste electrical and electronic equipment. Please return this device to the designated public collection point for disposal at the end of its service life.
- Page 27 2238001000100 - 20212121...
- Page 28 TECHNIVOLT 20220714- 2238001000100...
