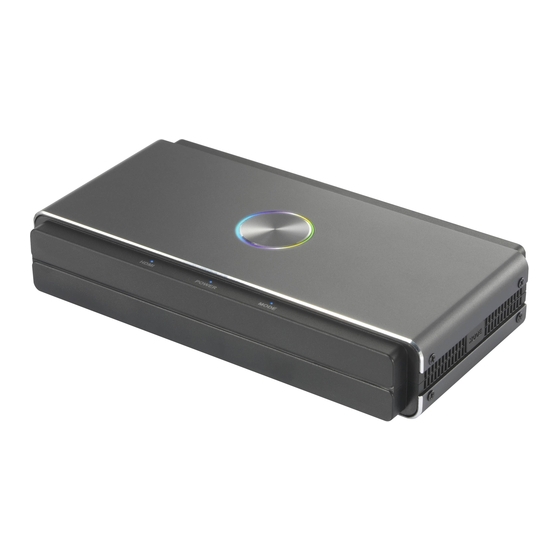

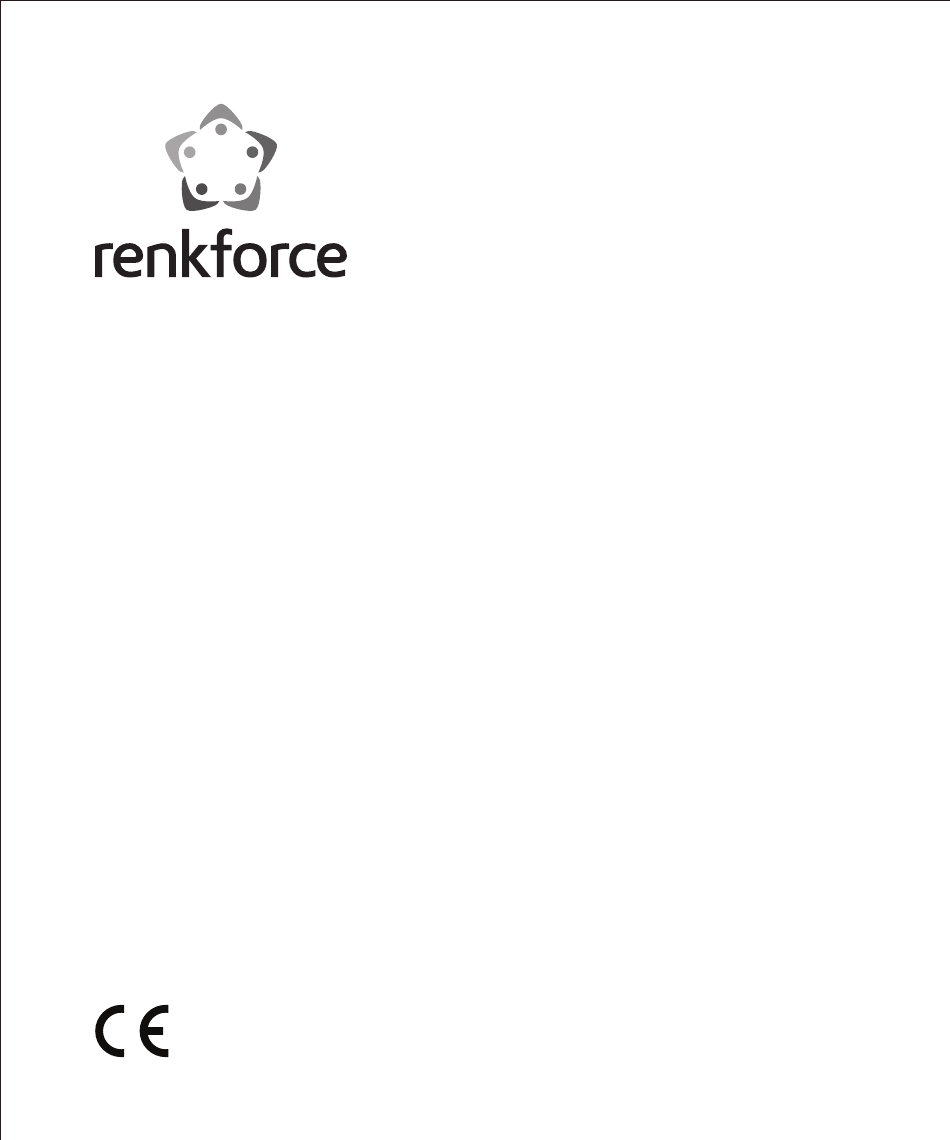

- Page 1 Operating Instructions HDMI Capture with USB Storage Item No. 2620931...
-
Page 2: What's In The Box
What’s In The Box Product Type-C® to USB HDMI to HDMI Instruction manual... - Page 3 Signals and Buttons Instruction 1. LED light - Multi-color: Ready to record - Stable red light: Recording to external storage - Flash in red: Warning message - Light o : Power o Note: When the LED light is ashing in red, it means the setup or con gurations are incorrect: - No HDMI input signal - No USB Storage inserted on Storage/ Phone port - Incorrect System Format for USB Storage (Click MODE button to x)
-
Page 4: Ports Introduction
Ports Introduction 1. POWER Power up by a USB-C® adapter with 5V/2A power supply. 2. HDMI OUT Connect HDMI cable to a monitor for pass-thru of HDMI IN port with up to 4K@60Hz resolution. Note that the signals from Storage/ Phone port does not support pass-thru to HDMI output source. -
Page 5: Hardware Installation And Connection
Hardware Installation and Connection Capture to PC 4K pass-thru HDMI HDMI OUT 4K@60Hz HDMI HDMI HDMI USB-C® USB-A Stream/ record HDMI IN UVC/ PC ™ software 4K@60Hz 1080p@60Hz *Power should be supplied by 5V/2A while using. Capture to Standalone USB Disk 4K pass-thru Click to record LED light... - Page 6 Hardware Installation and Connection Capture to PC and Standalone USB Disk Simultaneously UVC/ PC and Storage are able to record simultaneously only as H.264 format. 4K pass-thru HDMI HDMI OUT USB-C® USB-A 4K@60Hz HDMI Stream/ record HDMI HDMI UVC/ PC software 1080p@60Hz HDMI IN...
- Page 7 Hardware Installation and Connection Capture from Camera/ Gaming Station Standard HDMI for camera includes: HDMI, mini-HDMI, micro-HDMI Please use an adapter to transmit data. 4K pass-thru HDMI HDMI OUT HDMI/ Camera mini-HDMI/ HDMI 4K@60Hz micro-HDMI HDMI USB-C® USB-A Stream/ record HDMI IN UVC/ PC ™...
- Page 8 Hardware Installation and Connection Capture from Phone Note: 1. Capture from phone does not support pass-thru via HDMI OUT port. 2. Mobiles can be captured via HDMI IN port for those support HDMI output. Android USB-C Download MiraPlug App Lightning for capture and settings USB-C®...
- Page 9 Settings on Android/ iOS Mobile 1. Download MiraPlug App on mobile Download MiraPlug App on your mobile (Android/ iOS supported). 2. Connect mobile to product Power up the product by an independent power 5V/1A adapter. Connect the product to the mobile with a USB data cable. MiraPlug App USB data cable 5V/2A...
-
Page 10: Product Information
System/ Hardware Requirement Operating System - Windows10 (64bits) - Mac OS X 10.14 or later - Intel® CoreTM i5 CPU i5-8xxx or above / AMD Ryzen 7 or above - NVIDIA® GeForce® GTX 660 or above / AMD RadeonTM RX 870 or above - 8GB RAM (dual channel) or above Laptop - Intel®...
