Summary of Contents for Breezy BB01-WC

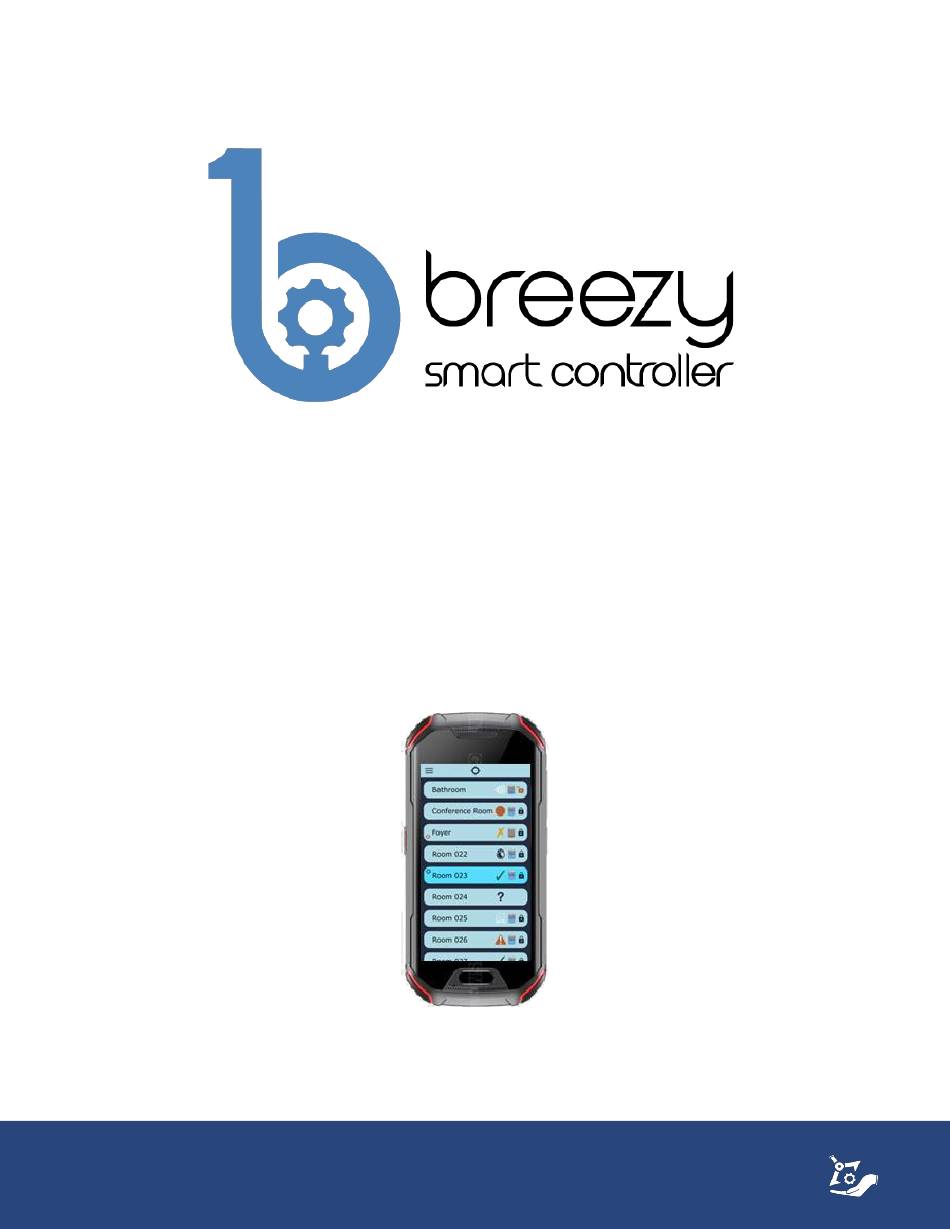

- Page 1 User Manual Breezy Smart Controller (SKU: BB01-WC) D001128 Rev A.1 www.BuildWithRobots.com Page 1...
-
Page 2: Manufacturer And Contact Information
For product information, sales, service, and technical support: https://buildwithrobots.com/ Customer Support Phone: (833) 273-3991 Email: info@buildwithrobots.com This manual covers the model: Breezy Smart Controller (BB01-WC) SPECIFICATIONS: Dimensions: 134.5 × 65 × 17.5 mm (5.3 x 2.56 x 0.69 inches) Weight: 224.5 g (0.495 pounds) USB: Type C Wi-Fi: WLAN 802.11 a/b/g/n/ac 2.4GHz/5GHz... -
Page 3: Environmental Considerations
Environmental Considerations This section provides information about the environmental impact of the product. Product End-of-Life Handling Observe the following guidelines when recycling an instrument or component: Equipment recycling. Production of this device required the extraction and use of natural resources. The device may contain substances that could be harmful to the environment or human health if improperly handled at the product’s end of life. -
Page 4: Table Of Contents
Contents Manufacturer and Contact Information .................... 2 Environmental Considerations ......................3 BB01-WC Breezy Smart Controller Setup ................... 5 Controller navigation overview ....................5 Connecting to Wi-Fi ......................... 6 Setting lock screen PIN (optional) ....................8 Updating Android Kiosk PIN for Wi-Fi and settings (optional) ..........9 Log-in.............................. -
Page 5: Bb01-Wc Breezy Smart Controller Setup
2. The recent button is located at the bottom right of the screen (right picture above). This button can be used to close or quickly refresh the Breezy Blue app if problems are encountered. 3. Power button. This is used to shut down and restart the controller. -
Page 6: Connecting To Wi-Fi
Connecting to Wi-Fi Connecting to Wi-Fi is required for receiving app and firmware updates. App updates will occur automatically if connected to Wi- 1. Power controller on 2. Select settings from the icon on the main screen a. If you don’t see the icon, press the home button on the controller 3. - Page 7 Setting screen timeout (optional) 1. Select settings from the icon on the main screen 2. Enter 0000, then press OK 3. Select Hardware 4. Select Display Timeout (seconds) 5. Select the preferred display timeout from list of options. D001128 Rev A.1 www.BuildWithRobots.com Page 7...
-
Page 8: Setting Lock Screen Pin (Optional)
Setting lock screen PIN (optional) 1. Select settings from the icon on the main screen. 2. Enter 0000, then press OK. 3. Select the settings gear. 4. Select Security 5. Select Screen lock 6. Select PIN (or other options) and follow in screen instructions If you choose to change the default PIN to a customized PIN, BWR will NOT be able to recover your controller in the event you lose or forget your customized PIN. -
Page 9: Updating Android Kiosk Pin For Wi-Fi And Settings (Optional)
Updating Android Kiosk PIN for Wi-Fi and settings (optional) 1. Select settings from the icon on the main screen. 2. Enter 0000, then press OK. 3. Select Admin 4. Select Settings Password and follow on-screen instructions to set a new PIN, then press OK. This PIN is used to configure any system settings on the controller. -
Page 10: Log-In
Log-in Press the physical home button on the controller. 1. Select the Breezy Blue logo on the upper left-hand side of the screen to open the app – if it doesn’t open automatically. 2. Select CONTINUE AS GUEST or CREATE ACCOUNT to proceed as a first-time user. - Page 11 Bluetooth scan and clearing all currently unseen devices. 5. Breezy Blue status – This section of the device card will auto update with device status, device tank level, and device lock status. This data will be shown even if the Breezy Blue device isn’t paired to the controller.
-
Page 12: Settings Page Overview
4. Logout button – Logs out the current user. Logging out of the current user will also un-pair all previously paired Breezy Blues. 5. App Version – Displays the current version of the Breezy Smart Controller app. 6. Latest Firmware Version – The version of the latest available firmware update file. -
Page 13: Pairing
Pairing 1. All the available devices are shown as a list on the home screen. 2. Select a device that needs to be paired. For example, “Mauricio-dev” 3. Press the PAIR & CONNECT button from the notification bar. 4. Press PAIR in the pop-up window. 5. -
Page 14: Forget Device
Forget Device 1. Unplug or move out of range of the device. 2. Select the settings icon towards the upper right corner of the app to open the settings page. 3. Press the STOP SCAN button. 4. Close the settings page by pressing the ‘X’ button in the upper left corner. - Page 15 Device Control Page 1. Device Alias – The default alias is configured as the Breezy Blue’s serial number. This can be renamed. 2. Page description. 3. Device Information Button – Displays detailed information about the device, including serial number, MAC address, and more.
- Page 16 6. Breezy Controller Icon – This is associated with the status of the device. See the explanation of icons in Table 1. 7. Start / Stop Button – Used to initiate and cancel a fogging event remotely. 8. Button Mode – Enable this slider to allow Breezy Blue operation without a remote.
-
Page 17: Configuration
Configuration Alias Button (Rename) Limited to 24 characters. (ex. Class 202, Firehouse 12, Casino 1st floor) 1. Press the menu button and select the "edit name” option to edit the Alias. 2. Type a new Alias name in the Alias Field 3. -
Page 18: Fogging Duration Button
Fogging Duration Button Fogging duration defines the time Breezy Blue dispenses fog in the area. 1. Fogging duration is set to 30 seconds at the factory. It can be changed by pressing anywhere over the time value or pencil next to Fogging Duration. - Page 19 Countdown duration Defines the time duration that the Breezy Blue alerts people in the area that a fogging event will occur soon and they should leave the area or press the disable button. 1. The countdown duration is set to 20 seconds at the factory. It can be changed by pressing anywhere over the time value or pencil next to Countdown Duration.
-
Page 20: Schedule Button
Schedule Button SYNC TIME aligns the Breezy Blue time with the controller time. This is necessary to ensure that the scheduled fogging events occur when intended. The Breezy Blue time should be synchronized every few months if it is important to fog at a specific time. - Page 21 5. Repeat steps 1 to 4 to schedule additional times for the Breezy Blue to fog. DELETE SCHEDULE Allows the operator to clear the existing schedule so the Breezy Blue will no longer fog on a regular schedule. D001128 Rev A.1 www.BuildWithRobots.com...
- Page 22 1. On the device control page, press the “SCHEDULE” button 2. On the Schedule screen, press the “DELETE” icon. 3. The schedule card will be deleted. Edit Schedule time: Allows the operator to edit the time of the day from an existing schedule. 1.
-
Page 23: Update Dialog
If connected to Wi-Fi, the controller will automatically update the app as new versions are released. The updated app may also include a firmware update that can be applied to each Breezy Blue device using the instructions below. 1. Breezy Blue devices requiring a firmware update will display a red icon on the home screen next to the device name. -
Page 24: View Log
Breezy Blue device. Lock and Unlock Devices The Breezy Blue devices can be locked to a user account to secure them from unauthorized user access. Once locked to an account, the Breezy Blue device can only be operated from that account. - Page 25 5. The device will flash green and white ring light for 30 seconds. Toggle the top button on the Breezy Blue device twice to confirm access lock while the ring light is flashing. 6. If the device lock is successful, the lock icon appears in the device information card on the home screen.
- Page 26 5. The device will flash green and white ring light for 30 seconds. Toggle the top button on the Breezy Blue device twice to confirm access lock while the ring light is flashing. 6. If the device lock is successful, the lock icon appears in the device information card on the home screen.
- Page 27 Unlock device: 1. Press the info icon on the top right corner of the device control page. 2. Press the UNLOCK ACCESS button on the device information window. 3. Press UNLOCK button on the confirm Device Unlock window. D001128 Rev A.1 www.BuildWithRobots.com Page 27...
-
Page 28: Remote Controlled Operation
Fog” on the controller display, then press the “START” button. 2. A countdown (default of 20 seconds) to fogging will initiate. The Breezy Blue waistband light will flash red, and there will be an audible warning to leave the area. Press the “STOP” button on the controller or the “DISABLE”... - Page 29 Table 1: Device status icons Status LED Ring Button Audio Status Breezy LEDs Icon Controll er Icon Not currently seen by option Option controller, below below previously seen by controller Idle + Blue Ready to Enabled Idle + Yellow Yellow...
-
Page 30: Troubleshooting
Breezy Blue device device Controller shows “?” next Controller display is not Press “recent” button to each Breezy Blue on list properly refreshing on bottom right corner of controller, then reselect app on the screen to refresh. Flashlight on controller is... -
Page 31: Limited Warranty (Usa/Canada)
LIMITED WARRANTY (USA/CANADA) Build With Robots warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Build With Robots, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
