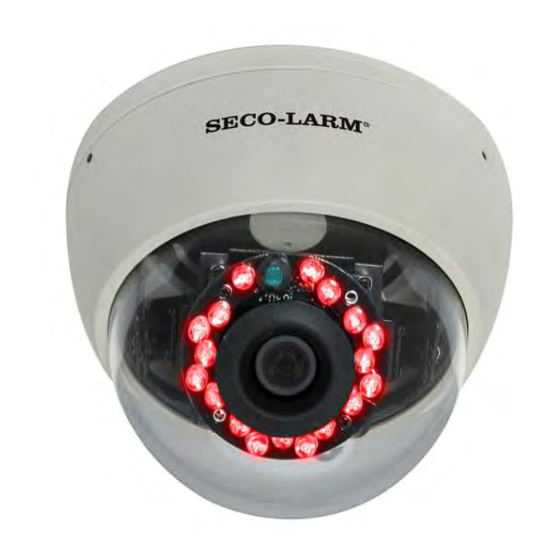

Mid-Size Vandal Dome Camera
Model No.
NTSC
EV-2166-N3WQ
EV-2166-NVWQ
EV-2766-N3WQ
EV-2766-NVWQ
PAL
EV-2166-P3WQ
EV-2166-PVWQ
EV-2766-P3WQ
EV-2766-PVWQ
Note: Products with model numbers that end with "Q" or that have a round green "Q" sticker are RoHS compliant.
Manual
Resolution
480 TV lines
480 TV lines
600 TV lines
600 TV lines
480 TV lines
480 TV lines
600 TV lines
600 TV lines
Lens Size
3.6mm
4~9mm varifocal
3.6mm
4~9mm varifocal
3.6mm
4~9mm varifocal
3.6mm
4~9mm varifocal
Advertisement
Table of Contents
Related Manuals for SLI SECO-LARM ENFORCER EV-2166-N3WQ
Summary of Contents for SLI SECO-LARM ENFORCER EV-2166-N3WQ
- Page 1 Mid-Size Vandal Dome Camera Manual Model No. Resolution Lens Size NTSC EV-2166-N3WQ 480 TV lines 3.6mm EV-2166-NVWQ 480 TV lines 4~9mm varifocal EV-2766-N3WQ 600 TV lines 3.6mm EV-2766-NVWQ 600 TV lines 4~9mm varifocal EV-2166-P3WQ 480 TV lines 3.6mm EV-2166-PVWQ 480 TV lines 4~9mm varifocal EV-2766-P3WQ 600 TV lines...
- Page 2 SECO-LARM Mid-Size Vandal Dome Cameras Specifications: NTSC 2166-N3WQ 2166-NVWQ 2766-N3WQ 2766-NVWQ 2166-P3WQ 2166-PVWQ 2766-P3WQ 2766-PVWQ Type Mid Size Vandal Dome ” Sony Super HAD II Resolution 480 TV lines 600 TV lines Lens 3.6mm 4~9mm 3.6mm 4~9mm # of IR LEDs 18 (850nm) IR range 65ft (20m)
- Page 3 SECO-LARM Mid-Size Vandal Dome Cameras Overview: Camera Set screw Mounting base Dome cover Female BNC connector Wiring notch DC plug with terminal block DC jack Mounting screw Important: Do not cut the DC jack or the female BNC connector as this will void the warranty. Before Starting: 1.
- Page 4 SECO-LARM Mid-Size Vandal Dome Cameras Troubleshooting: Check that the camera is powered up. Check that the power supply’s polarity is correct. Check that the monitor is powered up. The screen is blank. Check that the video cable connecting the camera to the monitor is connected properly.
