Features
600 TV Lines
Digital Noise Reduction (DNR)
/
" Sony Super HAD II Color CCD
1
3
3mm Lens
120° Viewing Angle
30 IR LEDs
Note: Model numbers that end with "Q" or that have a round green "Q" sticker signify RoHS-compliant products.
Corner Mount Camera

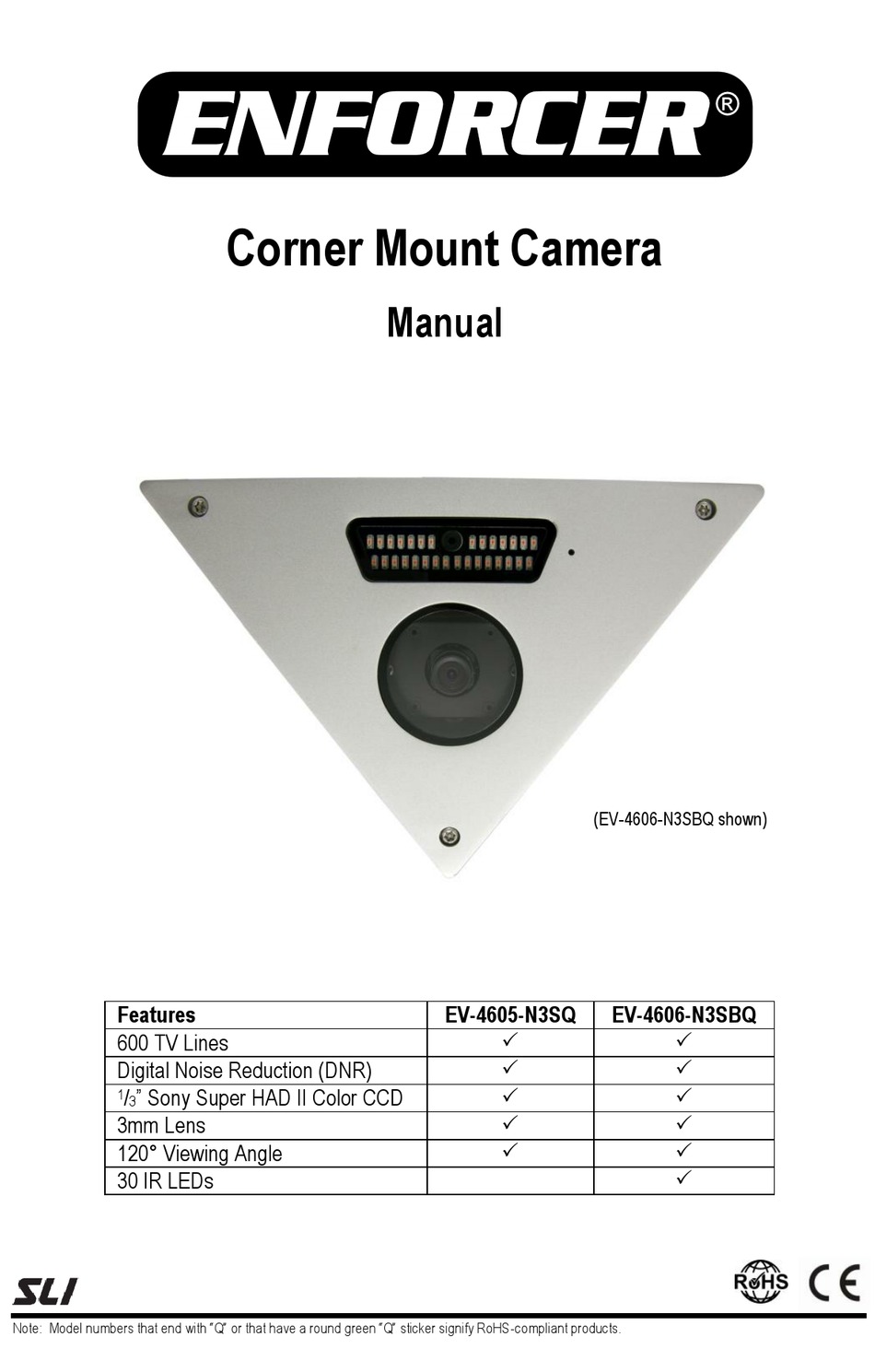

Manual
(EV-4606-N3SBQ shown)
EV-4605-N3SQ
EV-4606-N3SBQ
Advertisement
Related Manuals for SLI EFNORCER EV-4605-N3SQ
Summary of Contents for SLI EFNORCER EV-4605-N3SQ
- Page 1 Corner Mount Camera Manual (EV-4606-N3SBQ shown) Features EV-4605-N3SQ EV-4606-N3SBQ 600 TV Lines Digital Noise Reduction (DNR) ” Sony Super HAD II Color CCD 3mm Lens 120° Viewing Angle 30 IR LEDs ...
- Page 2 EFNORCER Corner Mount Camera Specifications: EV-4605-N3SQ EV-4606-N3SBQ Type Corner Mount Camera ” Sony Super HAD II Color CCD Resolution 600 TV lines Pickup elements 768x494 pixels Video output format NTSC Video output 1.0Vp-p composite video, 75Ω Scanning system 2:1 Interlace Lens Viewing angle 120°...
- Page 3 ENFORCER Corner Mount Camera Overview: DC Jack Pigtail connector Female BNC connector (Wire comes from bottom of camera.) Mounting screw Important: Do not cut DC jack or BNC connector as warranty will be voided. Camera cover Note: EV-4606-N3SBQ shown. Security screw Before Starting: 1.
- Page 4 EFNORCER Corner Mount Camera Troubleshooting: Check that the camera is powered up. Check that the power supply’s polarity is correct. The screen is blank. Check that the monitor is powered up. Check that the video cable connecting the camera to the monitor is connected properly.
