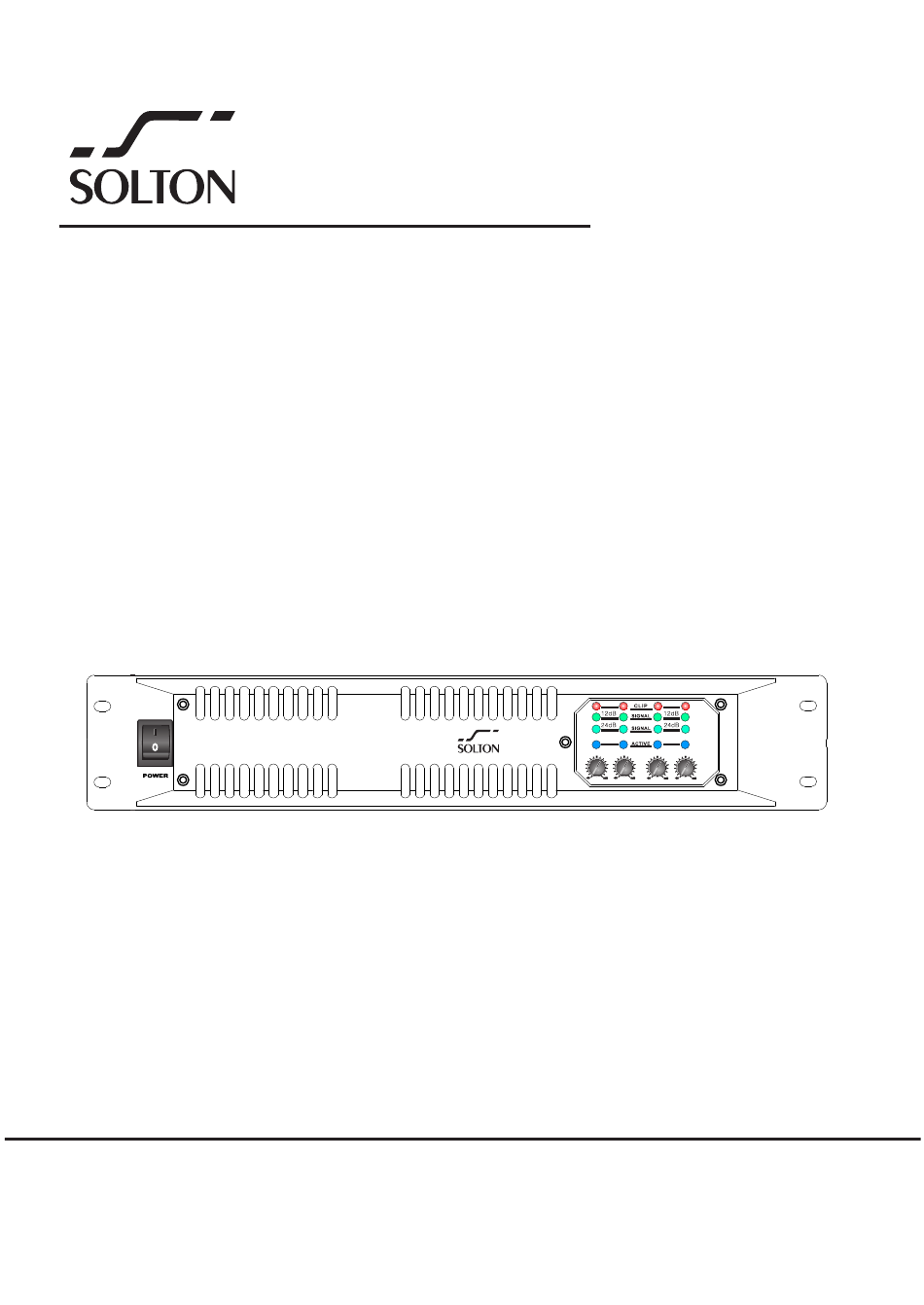

  • Page 1 CH 1 CH 2 CH 3 CH 4 ENGLISH DEUTSCH USER MANUAL www.solton.de...

  • Page 2: Important Safety Instructions

    In case of questions about power supply or high voltage. Connect of disconnect any SOLTON Service Center. In the case that an SOLTON product cable, please ask your local SOLTON dealer. speaker cable ONLY if the unit is switched off requires service, the owner must contact SOLTON or an •...

  • Page 3: Wichtige Sicherheitshinweise

    Inverkehrbringer übernimmt keinerlei Haftung fordern, wenn Nebenschäden durch ein Produkt oder Verantwortung für Hörschäden und andere aus dem Hause der SOLTON ACOUSTIC GmbH & Co. KG gesundheitliche Schäden durch die Verwendung, den entstehen. Dies schließt Folge- und/oder Nebenschäden Transport oder die Installation dieses Produkts.

  • Page 4: Front View

    Front View CH 1 CH 2 CH 3 CH 4 Rear and Side View PIN1=GND PIN1=GND PIN2=IN+ PIN2=IN+ PIN3=IN- PIN3=IN- INPUTS OUTPUTS INPUTS OUTPUTS STEREO STEREO PARALLEL PARALLEL BRIDGE BRIDGE PIN1=GND PIN1=GND PIN2=IN+ PIN2=IN+ PIN3=IN- PIN3=IN- INPUTS OUTPUTS INPUTS OUTPUTS www.solton.de...
  • Page 5 CH 2 CH 3 CH 4 CH 1 1. Rack Mounting Ears. 2. Volume Knobs. Volume knobs allow precise setting of input gain for CH1, CH2, CH3 and CH4. 7. AC Power Switch. 8. Air Out Slots. www.solton.de...
  • Page 6 Mode parallel: 2 inputs (CH1 and CH3) and 4 outputs are used. Mode bridge: 2 inputs (CH1 and CH3) and 2 outputs are used. 12. Output Connectors. Make connection by using speakon-type speaker cables, connect to the channel 1,2,3 and 4. 13. AC Power Connection. 14. Air cooling slots www.solton.de...
  • Page 7 Speaker + to PIN 1+ BRIDGE BRIDGE Speaker - to PIN 2+ PIN1=GND PIN1=GND PIN2=IN+ PIN2=IN+ PIN3=IN- PIN3=IN- INPUTS OUTPUTS INPUTS OUTPUTS ! ! A t t e n t i o n ! ! Max. Load 8 Ohms www.solton.de...
  • Page 8 Specification of DX 43 Power Amplifier DX 43 Rated Power 8 ohm stereo 4x 300 W (1KHz THD+N=0.1%) 4 ohm stereo 4x 450 W 8 ohm bridge 2x 900 W Protection DC protect, Short circuit protect, High temperature protect, current inrush...
  • Page 9 Tel: +49 (0) 8531 / 913880 Fax: +49 (0) 8531 / 978507 Web: www.solton.de E-mail: info@solton-acousitc.de All rights reserved to SOLTON Acoustic. All features and content might be changed without prior notice. Any photocopy, translation, or reproduction of part of this manual without written permission is forbidden.
