0-10VDC Casambi Scene Selector
with Casambi CBM003 Long Range Radio

Product Description

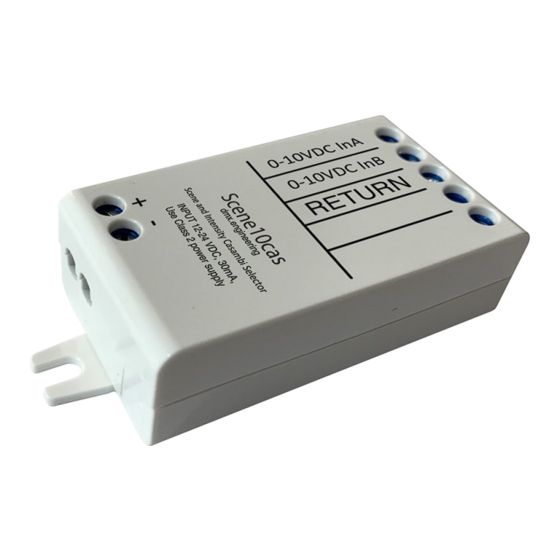

Scene10cas is a Casambi "Gateway" device designed to utilize a connection to a standard
0-10VDC analog dimming master controller to provide remote selection of pre-defined
Casambi Scenes and Scene Intensity. Scene10cas is connected between a 12-24 VDC
Class 2 power supply and a two-channel 0-10VDC master.
Scene10cas decodes both 0-10VDC channels, and provides Scene selections by mapping
the first 0-10V channel into voltage segments, which are then selected depending on the
voltage level. The second 0-10VDC channel provides 0-100% intensity selection for the
selected Casambi Scene.
Voltage trim and hysteresis values are also provided to implement installations where the
0-10VDC levels may not be full range, or are noisy due to installation factors.
Scene10cas can be configured with the Casambi app which can be downloaded free of

Typical Connection Diagram

12-24VDC
Class 2
Power
Supply

Mechanical Data

Dimensions: 2.2 x 1.2 x 0.7 inch
72.6 x 30.0 x 18.0 mm
Weight: 0.8 oz (23 g)
DMX Engineering LLC
9221 E. Baseline Road, Suite 109-492
Mesa, AZ 85209
USA & Canada
0-10VDC In A
0-10VDC A
0-10VDC In B
0-10VDC B
RETURN
Ground

Certifications

FCC ID: 2ALA3-CBM002A
IC: 22496-CBM002A
Conforms to UL STD 916
Certified to CSA STD C22.2#205
**RATED FOR INDOOR USE ONLY**
Compatible devices:
iPhone 4S or later
iPad 3 or later
iPod Touch 5th gen or later
Android 4.4 or later devices
produced after 2013 with full
BT 4.0 support

Technical Data

Input
Voltage range: 12-24 VDC, Class 2
No-load input current: 30 mA
0-10VDC Input (A and B) Configuration
2-wire analog 0-10VDC, two channels
1mA source current, input must sink for control
Top and bottom "trim" and hysteresis user pro-
grammable Casambi Vendor Parameters
Scene Control/Selection
Number of Scenes—determines the voltage win-
dow range for each Scene. For example, if 4
Scenes are desired, this sets the voltage window
to 2.5V (10V/4 = 2.5V)per Scene
Channel 1—Scene selection
Channel 2—Intensity level
Radio transceiver
Casambi CBM003B Radio Module
Operating frequencies: 2.401-2.483 Ghz
Maximum output power: typ. +8 dBm
-103 dBm RX sensitivity in long-range mode
Operating conditions
Ambient temperature, ta: -13...+113°F (-25...+45°
C)
Max. case temperature, tc: +167°F (+75°C)
Storage temperature: -13...+167°F (-25...+75°C)
Max. relative humidity: 0...80%, non-cond.
Connectors
Wire range, solid & stranded: 0.5 - 1.5 mm
14 - 22 AWG
