User Manual
99-3375

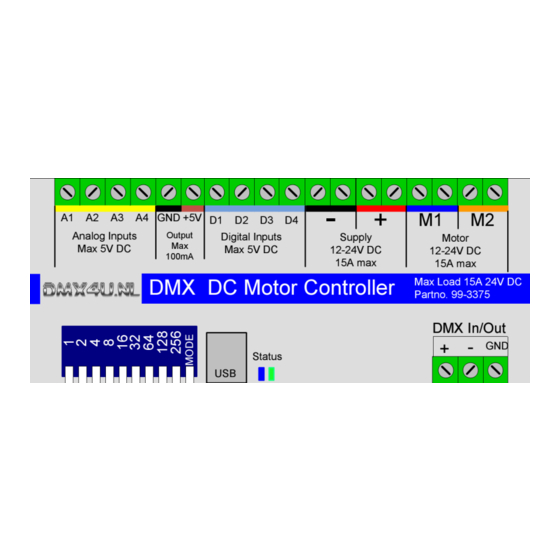

DMX DC Motor-controller
Description
This DMX DC Motor-controller is intended to use with DC motors only.
Technical data
Power Supply: 12V - 24V DC
DMX-Channels: 6
Output: PWM Driven maximal 15 Ampere DC
Connection with screw terminals
Size: Din Rail module, 6 units wide, railmount 35mm, 85x105x58mm (lxwxh)
Page 1 of 4
99-3375 DMX DC Motor controller
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DMX 99-3375
Summary of Contents for DMX 99-3375
- Page 1 User Manual 99-3375 DMX DC Motor-controller Description This DMX DC Motor-controller is intended to use with DC motors only. Technical data Power Supply: 12V - 24V DC DMX-Channels: 6 Output: PWM Driven maximal 15 Ampere DC Connection with screw terminals...
- Page 2 The DMX Start-address can be set by a dipswitch. On the dipswitch is the value of each switch printed. Summing of all switched set to ON represents the DMX address Switch 10 is for Future use. Page 2 of 4...
- Page 3 The deployment of the device where the safety of persons depends on the device is prohibited. Environment: Electronic and electrical equipment has to be disposed via a recycling center. You can also in our any products returned to us, we will take care for proper disposal. Page 3 of 4 99-3375 DMX DC Motor controller...
- Page 4 For this reason I see myself compelled to point out that I am neither a guarantee nor have legal responsibility or liability for the consequences of incorrect information. This document contains no explicit guarantee. The instructions and features are subject to change without notice. Page 4 of 4 99-3375 DMX DC Motor controller...
