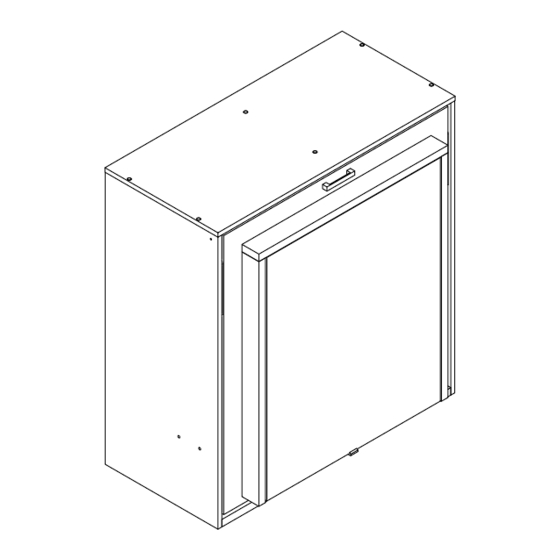

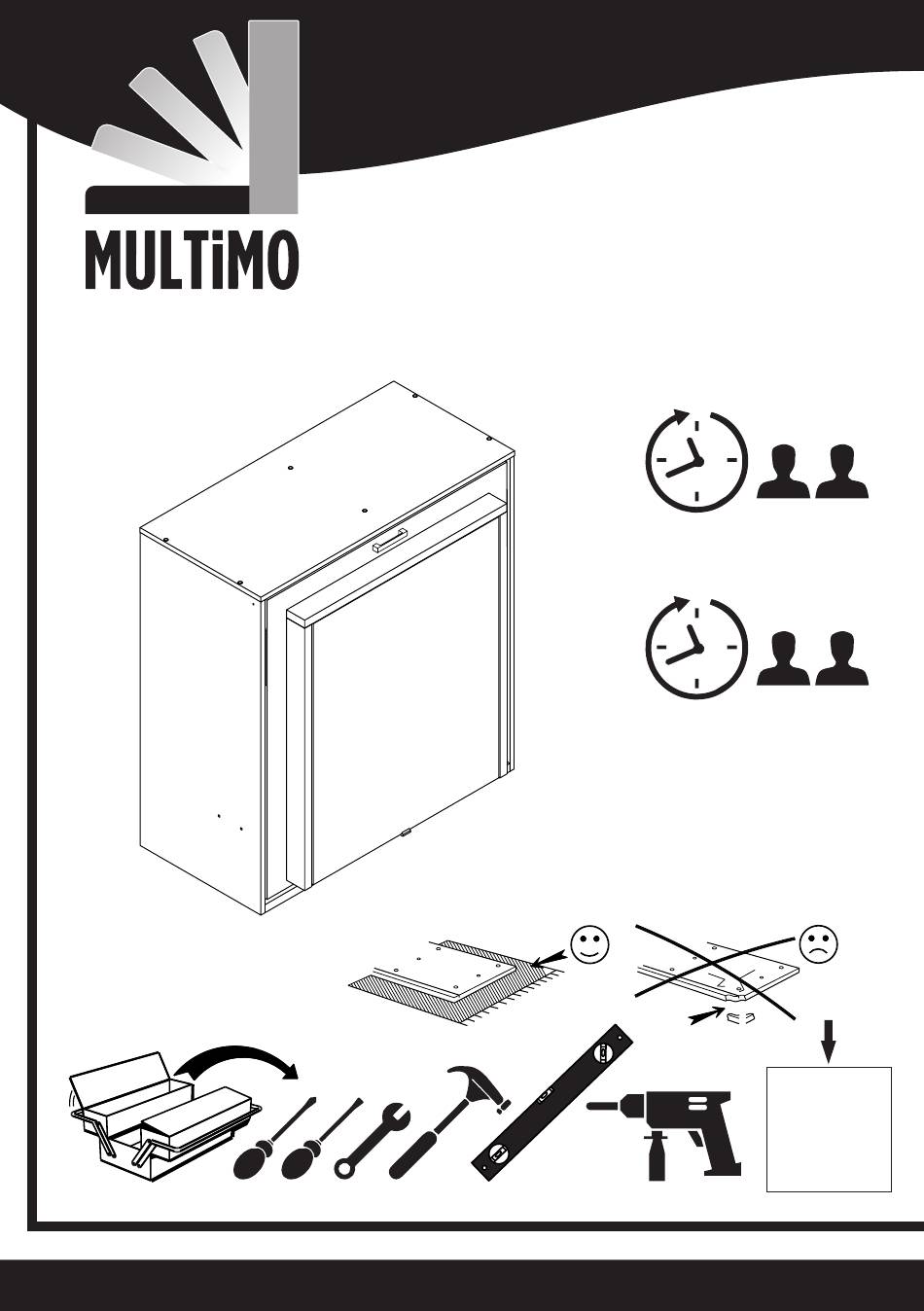

- Page 1 A 209-CAPSULE FOLDING SINGLE BED A 402-D SECRET TABLE MODULE min. Technical Service min. End User VIDEO link Assembly Instructions...
- Page 2 (inch) (mm) Track Title Piece Piece T hickness Length Width T hick H eight M ost 18 1170 A-R / A-L 0,71 46,06 20,47 30 1056 1,18 41,57 20,47 18 1094 0,71 43,07 20,51 18 1056 0,71 41,57 17,72 18 1056 0,71 41,57 5,91...
- Page 3 A 402-D Page 2...
- Page 4 STEP 1 KVL - 01 x 2 MNX - 02 KVL 01 A-(R/L) MNX - 02 x 6 MNX - 02 x 7 VIDEO link Page 3...
- Page 5 STEP 2 MNX - 02 KVL 01 MNX - 02 x 3 KVL - 01 x 4 KVL - 01 x 6 VIDEO KVL - 01 x 6 link Page 4...
- Page 6 STEP 3 MNG - 01 MNG - 01 x 3 210° STEP 4 MNG - 01 MNG - 01 x 6 210° VIDEO link Page 5...
- Page 7 STEP 5 MNG - 01 MNG - 01 x 6 210° STEP 6 MNG - 01 MNG - 01 x 7 210° VIDEO link Page 6...
- Page 8 STEP 7 Ø 10 mm / 0,254 nch DD - 01 DSE - 02 VD - 01 TAP - 03 VD - 03 TAP - 01 VIDEO link Page 7...
- Page 9 STEP 8 OT - 54 CT - 02 AL - 01 CAUTION DO NOT UNLOCK BEFORE INSTALL MKZ - 01 D IM - 02 X 2 VIDEO AL - 02 link Page 8...
- Page 10 STEP 9 45-50 LET THE STOPPER LOCK MOVE DOWN !!! VIDEO link Page 9...
- Page 11 STEP 10 PL-05 OT-10 SN-02 SC-99 VIDEO SC-99 link Page 10...
- Page 12 STEP 11 YSB - 01 PL - 04 KP - 01 CTHY - 01 X 2 VIDEO link Page 11...
- Page 13 STEP 12 SC - 100 SC - 100 SN - 02 SC - 100 VIDEO CTM - 02 AL - 02 link Page 12...
- Page 14 STEP 13 VTB - 02 X 4 KMT-01 TTC 01 X 1 KLF -FRONT (fabric cover) VIDEO link Page 13...
- Page 15 STEP 14 VIDEO link Page 14...
- Page 16 STEP 15 DEL WITH Ø 9 mm DRILL SKT - 01 X 4 VIDEO link Page 15...
- Page 17 STEP 16 A 402-D CT - 03 X 4 A 402-D AL - 01 SN - 01 X 4 PL - 03 X 4 VIDEO link Page 16...
- Page 18 A 209 A 402-D Page 17...
- Page 19 ATTENTION / HOW TO / READ ME / OWNER'S GUIDE 1. When mount ng on a regular drywall, furn ture must be fastened to wood or metal studs. Sol d walls made of br ck, concrete or s m lar strong mater al are also accaptable.
