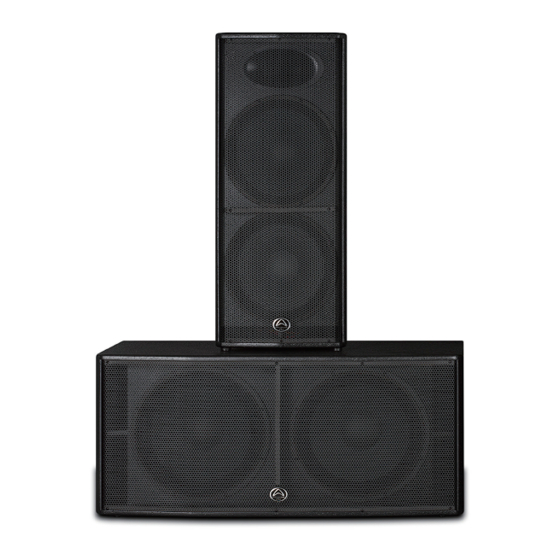

- Page 1 IMPACT-X Series Passive Loudspeakers USER MANUAL IMPACT-X15 IMPACT-X15L IMPACT-X215 IMPACT-X215L IMPACT-X215LL IMPACT-X18B IMPACT-X18BL IMPACT-X218B IMPACT-X218BL IMPACT-X15ML www.wharfedalepro.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important warnings & safety instructions ………………………………………….1 Product features ………………………………………………………………………2 Connections ….………………………………………………………………………3 Dimensional drawings …………………………..……………………………………4 - 9 Specifications …………………..………………………….…………………………10 - 12... -
Page 3: Important Warnings & Safety Instructions
UNPACKING All Wharfedale Pro products are fully checked before leaving our factory. After unpacking please inspect the cabinets for any physical damage Please retain the shipping carton if possible and internal packing material incase the unit ever needs to be returned. -
Page 4: Product Features
350w RMS 700w Programme 700w Programme 700w Programme 1400w Peak 1400w Peak 1400w Peak IMPACT-X215 IMPACT-X215L IMPACT-X215LL Dual 15" Passive loudspeaker Dual 15" Passive loudspeaker Dual 15" Passive loudspeaker 2800w peak 2800w peak 3200w peak 135dB max SPL 135dB max SPL >135dB max SPL... -
Page 5: Connections
3 - Power up your amplifier with levels set to zero. Carefully turn up amplifier volumes to confirm that the connections are working. IMPACT-X15 IMPACT-X15L IMPACT-X215 IMPACT-X215L IMPACT-X215LL IMPACT-X FULL RANGE IMPACT-X Series full range system Full range output from amp... -
Page 6: Dimensional Drawings
DIMENSIONAL DRAWINGS IMPACT-X15 443.5 429.2 IMPACT-X215 429.2 443.5... - Page 7 DIMENSIONAL DRAWINGS IMPACT-X15L 460.0 450.0 IMPACT-X215L 467.0 502.0...
- Page 8 DIMENSIONAL DRAWINGS IMPACT-X215LL 519.0 500.0 IMPACT-X15ML 445.0 505.1...
- Page 9 DIMENSIONAL DRAWINGS IMPACT-X18B 606.5 611.5 IMPACT-X18BL 638.8 528.0...
- Page 10 DIMENSIONAL DRAWINGS IMPACT-X218B 610.0 1222.0...
- Page 11 DIMENSIONAL DRAWINGS IMPACT-X218BL 1020.0 610.0...
-
Page 12: Specifications
SPECIFICATIONS Model Name IMPACT-X15 IMPACT-X15L IMPACT-X15ML IMPACT-X215 System Type Passive Passive Passive Passive Configuration Two-way Two-way 15" two-way Monitor Two-way Frequency Response (+/-3dB) 50-18kHz 50-18kHz 55-18kHz 45-18kHz Frequency Range (-10dB) 45-20kHz 45-20kHz 50-20kHz 40-20kHz Sensitivity (2.83v/1m) 98dB 98dB 98dB 101dB Calculated Maximum SPL @1m 130dB 130dB... - Page 13 SPECIFICATIONS Model Name IMPACT-X215L IMPACT-X215LL IMPACT-X18B IMPACT-X18BL System Type Passive Passive Passive Passive Configuration Two-way Two-way 18" Subwoofer 18" Subwoofer Frequency Response (+/-3dB) 45-18kHz 45-18kHz 40-220Hz 40-220Hz Frequency Range (-10dB) 45-20kHz 40-20kHz 30-250Hz 30-250Hz Sensitivity (2.83v/1m) 101dB 101dB 100dB 100dB...
- Page 14 SPECIFICATIONS Model Name IMPACT-X218B IMPACT-X218BL System Type Passive Passive Configuration 2x18" Subwoofer 2x18" Subwoofer Frequency Response (+/-3dB) 35Hz-1.2kHz 35Hz-1.2kHz Frequency Range (-10dB) 30Hz-1.5kHz 30Hz-1.5kHz Sensitivity (2.83v/1m) 101dB 102dB Calculated Maximum SPL @1m 137dB 139dB System Rated Impedance 4Ω 4Ω Low Frequency Transducer Size 2 x 470mm / 18"...
