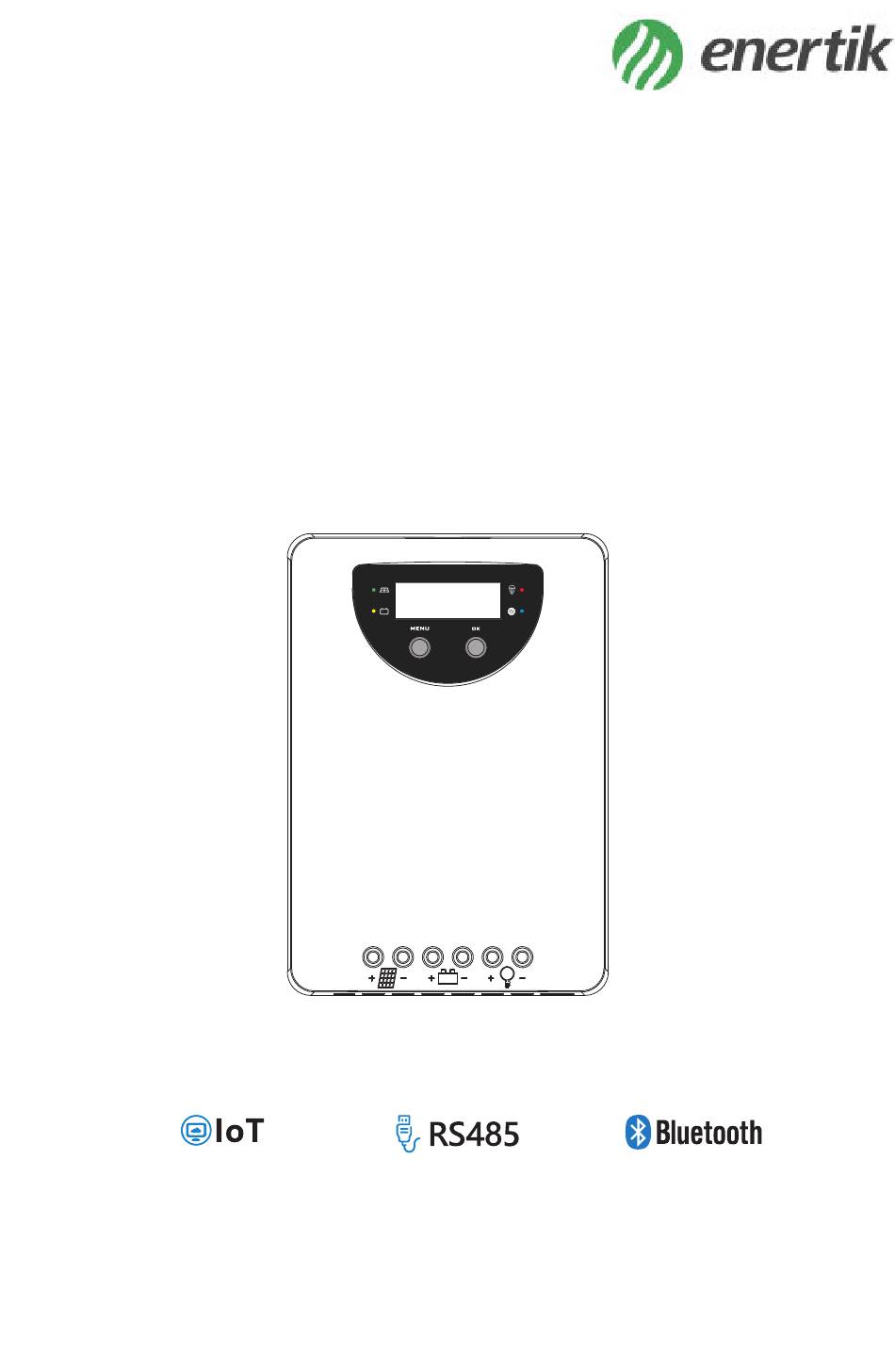

- Page 1 Solar Controller MP-20-12/24 MP-40-12/24 MP-60-12/24 MP-60-12/24/48 User Manual CE, Rohs, ISO9001:2015 Subject to change without notice!
-
Page 2: Table Of Contents
Safety instructions and waiver of liability ....................Safety Instructions ..................................1.2 Liability Exclusion..................................1 Pruduct Overview ............................. Dimensions ..............................3.1 The dimensions of MP-20-12/24............................3 3.2 The dimensions of MP-40-12/24............................4 3.2 The dimensions of MP-60-12/24 and MP-60-12/24/48....................5 Structure & Accessor y..........................Structure &... -
Page 3: Safety Instructions And Waiver Of Liability
Dear Clients, Thank you for purchasing our MP Charge Controller Your support and trust in us are much appreciated. Please take time to read this manual this will help you make full use of the many advantages this controller can provide your PV System with This manual presents important recommendations for installing... - Page 4 2, Over view MP series solar controller is based on an advanced maximum power point tracking (MPPT) technology developed, dedicated to the solar system, the controller conversion efficiency up to 98%. It comes with a number of outstanding features, such as: A combination of multiple tracking algorithms enables tracking the maximum power point quickly and accurately Innovative Max Power Point Tracking(MPPT) technology, tracking efficiency >99.9%...
- Page 5 High Voltage Strings and Grid-Tie Modules Another benefit of MPPT technology is the ability to charge batteries with solar arrays of higher nominal voltages. For example, a 12 Volt battery bank may be charged with a 12-, 24-, 36-, or 48-Volt nominal off- grid solar array.
-
Page 6: Pruduct Overview
2.3 MPPT—Four Charging Stage MP series controller has a 4-stage battery charging algorithm for rapid, efficient, and safe battery charging. U(V) Equalize Charge 14.8V 14.5V 13.7V Night MPPT Boost Float Night Charge Charge Charge TIME MPPT Charge In this stage, the battery voltage has not yet reached boost voltage and 100% of available solar power is used to recharge the battery. -
Page 7: Dimensions
3, Dimensions 3.1 The dimensions of MP-20-12/24 Unit:mm 67.10 136.60 120 . 00... -
Page 8: The Dimensions Of Mp-40-12/24
3.2 The dimensions of MP-40-12/24 Unit:mm 136.60 67.10 120.00... - Page 9 3.3 The dimensions of MP-60-12/24 and MP-60-12/24/48 Unit:mm 97.50 186.50 166.00...
-
Page 10: Structure & Accessor Y
4, Structure & Accessor y Structure & Characteristics ①Heat Sink —dissipate controller heat ③ ②Plastic Case —Internal protection ③LED & LCD — Display settings and operating status, system parameters ④ ④Key: MENU、OK —Set and view the operating parameters ⑤Temperature Sensor Port —Collect temperature information, Temperature compensation. -
Page 11: Optional Accessories
Option Accessories 4.4.1 Bluetooth Communication Two options are available: 1. BT inside 2. BT external (Cyber-BT), and connected via RJ11 connector. Bluetooth communication has the following characteristics： 1. Support Android/iOS mobile phone App 2. Realizes wireless monitoring function of PV charge controller 3. -
Page 12: Installation
5, Installation CAUTION: Please read all instructions and precautions in the manual before proceeding with the installation It is recommended to remove the protective film cover from the LCD screen before operation 5.1 Installation Notes ⑴ This charge controller must only be used in PV systems in accordance with requirements given in this user manual and the specifications of other system components provided by their manufacturers. -
Page 13: Mounting Location Requirements
5.2 Mounting Location Requirements Do not subject the PV charge controller to direct sunlight or any other heat sources. Protect the PV charge controller from any dust, dirt and moisture. Mount it flat to a vertical wall. Must be a non-flammable material. - Page 14 We strongly recommend connecting a fuse directly to the battery terminal to protect from any short circuit in the battery circuit. PV-modules generate current whenever light shines on them. The generated current is directly proportional to the light intensity. Even low levels of light, will deliver the PV-Modules no load, full voltage.
-
Page 15: Wiring Specifications
(mm²/AWG) (mm²/AWG) (mm²/AWG) 6/10 6/10 6/10 MP-20-12/24 10/8 10/8 MP-40-12/24 MP-60-12/24 16/5 16/5 MP-60-12/24/48 The indicated cable/wire sizes are for reference only. If longer runs between the PV array and the controller or between the controller and the battery are required, than larger capacity cables must be used to reduce voltage drop and improve system performance. -
Page 16: Key Function
6.2 Key function MENU Operating Mode Short press OK. Browse interface Press the MENU and OK key at the same time for 1s, the LCD screen will lock the interface. Static display Press the MENU and OK key again for 1s, the LCD interface will unlock and start scrolling. - Page 17 6.3.2 The interface automatically cycles in the displayed sequence 6.3.3 Press OK to browse the interface...
-
Page 18: Parameters Setting
6.3.4 Fault indication Icon Status Description Load off, fault icon display,the LCD screen displays E1. Short circuit Load off, fault icon display,the LCD screen displays E2. Over current Load off, battery level shows empty, fault icon display, Low voltage battery frame flashes, the LCD screen displays E3. The charge and discharge are off, b attery level shows full, fault Over voltage... - Page 19 6.4.4 Batter y type When the LCD shows as displayed at left, press the MENU key for 1s,the icon flashes , now you can set the battery type. Display Batter y type GEL(Default) Lithium Liquid 1.Charging Voltage Parameters(Liquid, GEL, AGM) When choosing Liquid, GEL or AGM for battery type, the parameters of boost, equalization and float...
-
Page 20: Protections, Troubleshooting And Maintenance
2. Street Lamp Function When the load is set to Dusk to Dawn or Evening mode, the Day/Night threshold voltage and the Day/Night delay t can be set b IoT, RS485 or bluetooth APP, and the load can be turned on or off by the test function during the day charging process. -
Page 21: Protection
7.2 Protection Protection Description The controller will limit charging power to the rated level. PV Over Current Over-sized PV array will not be able to operate at maximum power point. When PV short circuit occurs, the controller will stop charging. PV Short Circuit Remove it to resume normal operation. -
Page 22: Technical Data
8, Technical Data Item MP-20-12/24 MP-40-12/24 MP-60-12/24 Max Charging Current System Voltage 12/24V automatic recognition MPPT Charging Voltage before boost or equalization charging stage Boost Voltage 14~14.8/28~29.6V @25℃(default: 14.5/29V) Equalization Voltage 14~15.0/28~30V@25℃(default: 14.8/29.6V)(Liquid, AGM) Float Voltage 13~14.5/26~39V @25℃(default: 13.7/27.4V) Low Volt. Disconnect 10.8~11.8V/21.6~23.6V(default: 11.2/22.4V) - Page 23 Item MP-60-12/24/48 Max Charging Current System Voltage 12/24/36/48V automatic recognition MPPT Charging Voltage before boost or equalization charging stage Boost Voltage 14~14.8/28~29.6/42~44.4/56~59.2V@25℃(default:14.5/29/43.5/58V) Equalization Voltage 14~15/28~30/42~45/56~60V@25℃ (default:14.8/29.6/44.4/59.2V)(Liquid, AGM) Float Voltage 13~14.5/26~29/39~43.5/52~58V@25℃(default:13.7/27.4/41.1/54.8V) Low Volt. Disconnect 10.8~11.8/21.6~23.6/32.4~35.4/43.2~47.2V Battery Param (default:11.2/22.4/33.6/44.8V) eters Reconnect Voltage 11.4~12.8/22.8~25.6/34.2~38.4/45.6~51.2V(default:12/24/36/48V) Overcharge Protect 15.8/31.3/46.8/62.3V...
- Page 24 9.Conversion Efficiency Cur ves Test conditions：Illumination intensity: 1000W/m² Temperature: 25℃ Model: MP-20-12/24 Conversion Efficiency Curves Solar Module MPP Voltage 18V/36V Charging Power(W) Conversion Efficiency Curves Solar Module MPP Voltage 36V/54V/72V Charging Power(W)
- Page 25 Model：MP-40-12/24 Conversion Efficiency Curves Solar Module MPP Voltage 18V/36V Charging Power(W) Conversion Efficiency Curves Solar Module MPP Voltage 36V/54V/72V 1040 Charging Power(W)
- Page 26 Model：MP-60-12/24/48 Conversion Efficiency Curves Solar Module MPP Voltage 34V/51V/68V 1100 1300 1500 Charging Power(W) Conversion Efficiency Curves Solar Module MPP Voltage 68V/85V 1000 1250 1500 1750 2000 2250 2500 2750 3000 Charging Power (W)
