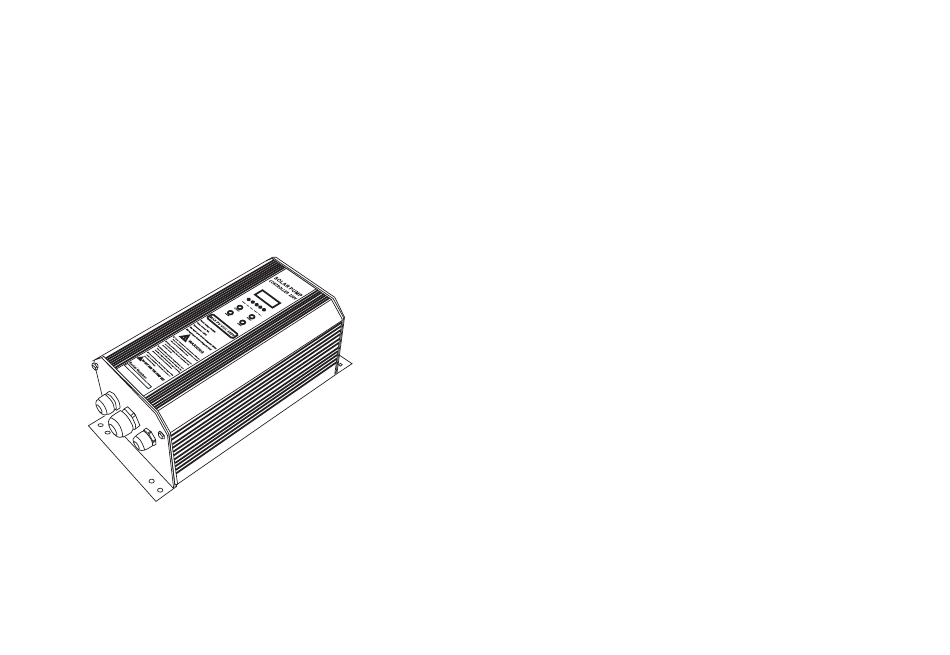

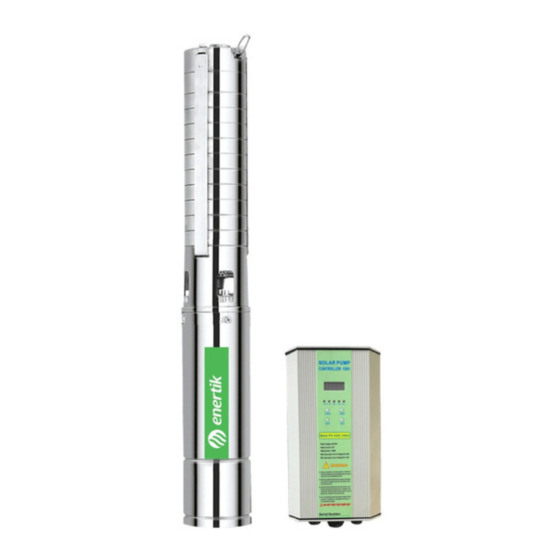

Pump Controller Manual
BSSC4-29-1000-110V
BSSC4-53-10000110V
BSSC4-88-1000-110V
BSSC4-60-1500-150V
BSSC4-77-1500-150V
BSSC4-130-1500-150V
BSSC4-47-2200-220V
Attention:
1. Please carefully check the manual before installation.
2. The only usage of the product is to control the matched DC solar pumps.
CONTENTS
1.Safety------------------------------------------------------------------------------3
3.Protect Function Manualy------------------------------------------------------4
4.Installation Guidey----------------------------------------------------------------5
5.Operating Board Instructiony--------------------------------------------------8
6.Angle of installation of the solar panel---------------------------------------10
7.Test Runningy-------------------------------------------------------------------11
8.Maintanance Methody----------------------------------------------------------11
9.Error Code and Meaningsy-----------------------------------------------------12
Advertisement
Table of Contents
Related Manuals for enertik BSSC4-29-1000-110V
Summary of Contents for enertik BSSC4-29-1000-110V
- Page 1 Pump Controller Manual CONTENTS BSSC4-29-1000-110V 1.Safety------------------------------------------------------------------------------3 BSSC4-53-10000110V BSSC4-88-1000-110V 2.Technical Specificationy--------------------------------------------------------4 BSSC4-60-1500-150V 3.Protect Function Manualy------------------------------------------------------4 BSSC4-77-1500-150V BSSC4-130-1500-150V 4.Installation Guidey----------------------------------------------------------------5 BSSC4-47-2200-220V 5.Operating Board Instructiony--------------------------------------------------8 6.Angle of installation of the solar panel---------------------------------------10 7.Test Runningy-------------------------------------------------------------------11 8.Maintanance Methody----------------------------------------------------------11 9.Error Code and Meaningsy-----------------------------------------------------12 Attention: 1. Please carefully check the manual before installation.
- Page 2 1.Safety 2.Technical Specification Table 1 Specification 1.1 Before Power On Model 150V 220V 300V ●Make sure the terminal wire connections are correct,“P+”、“P-”are for Specification panel connection,“1”、“2”、“3”for pump connection,wrong connection will Rated Voltage 150VDC 220VDC 300VDC lead to controller damage. Rated Current Max working Current Min working Current 1.3A...
- Page 3 4.2 Terminal Instruction： 4. Installation Guide 4.1 Wire connection Typical wire connection as below pictures: 3 COM2 TH COM1 WL WH 3 COM2 TH COM1 WL WH Table 3 Terminal instruction Terminal Instruction Anode of solar panel Earth Cathode of solar panel solar panel Blank Connect with Pump motor Wire 1...
- Page 4 4.3 Instruction of water level sensors 5.Operating Board Instruction Tank water level sensor: The tank water level senor is used to detect the water level of tank.Once the tank is full,the sensor will stop the system.When installation,connect“COM2”at 5.1 Operating Board the bottom of tank,connect“TH”at the top of tank.Once the water level is full,the system will stop in 8s;once the tank is empty,the system will re-start to work in 5mins.
- Page 5 6. Angle of installation of the solar panel 5.3 Digital Display Manual Use the following graphics to help determine your optimal mounting angle. If you are located Ta b le 5 D ig it a l D is p la y S h o w s in the Northern hemisphere, face your panels south, and tilt back to an angle equal to your latitude.
- Page 6 7.Test Running 8.2 Attentions during the maintanance 7.1 Key check project before test running ●Disconnect the input power of controller before maintanance; ●The demounted metal spare parts are not allowed to put into controller,it will lead to open- ● Set all the terminal screws tight before running. circuit of controller;...
