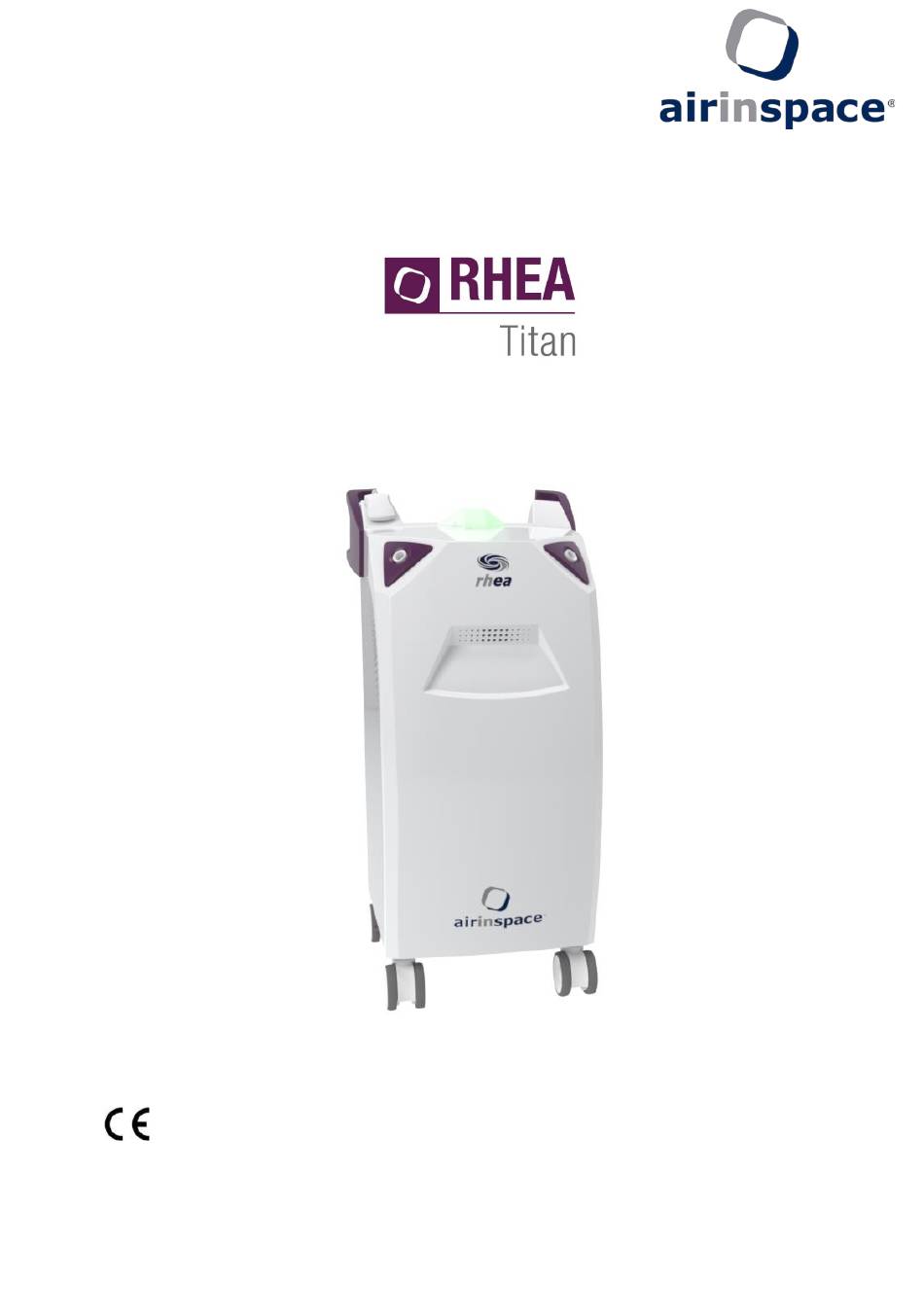

- Page 1 MOBILE AIRBORNE SURFACE DISINFECTION UNIT USER MANUAL RHEA Titan/X-CID In line with the Low Voltage Directives 2006/95/EC and EMC Directive 2004/108/EC RHEA Titan User Manual EN_ ed19_21-mars-2022 pg.1/35...
- Page 2 WARNING We strongly recommend that you read these instructions in their entirety before operating the RHEA Titan/X- for the first time (see section 2 – Use). To make it easier for different types of users to access more detailed information, these instructions consist of 3 sections: •...
-
Page 3: Table Of Contents
Operating principles ..........................8 1.6.3 Description of the disinfection cycle: ....................... 9 1.6.4 Physical characteristics of the RHEA Titan ................... 10 Installation instructions ..........................11 Operating recommendations for RHEA TITAN ..................11 Instructions for handling, storing and warehousing ................13 1.9.1... -
Page 4: General Information
Never obstruct or cover the air inlets when the device is in operation. • supplies to replace the bottles (see section 2 – chapter 2.4 – Bottle ® Only use airinspace Replacement). • Do not twist, stretch or damage the power supply cable. •... -
Page 5: Regulatory Standard
REGULATORY STANDARD RHEA Titan devices are CE-marked and comply with European regulations: Low Voltage Directive 2006/95/EC EMC Directive 2004/108/EC NORMATIVE STANDARDS NF EN 61010-1 (2011): Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use - Part 1: General Requirements EN 61326-1 (2013). -
Page 6: Description Of The Device
DESCRIPTION OF THE DEVICE 1.4.1 OVERVIEW Handle NFC reader Cover with light Outlet nozzle x2 Front plastic casing Metal frame Wheels with brake Wheels without brake Touchscreen Printer Bottle access door Maintenance ports Power supply socket Storage access door RHEA Titan User Manual EN_ ed19_21-mars-2022 pg.6/35... -
Page 7: View Of The Open Removable Casing
1.4.2 VIEW OF THE OPEN REMOVABLE CASING 15 Quick connector to attach to the dip tubes 16 NFC TAG 17 XCID product label 18 XCID 2.5 L bottle 19 Dip tube to screw into the bottle RHEA Titan User Manual EN_ ed19_21-mars-2022 pg.7/35... -
Page 8: Labelling
EN 17272 : 2020. ® Please contact airinspace for more information on these certifications. The safety time is the time required for the concentration of hydrogen peroxide to become sufficiently low (the Exposure Limit Value is 1 ppm). -
Page 9: Description Of The Disinfection Cycle
1.6.3 DESCRIPTION OF THE DISINFECTION CYCLE: • Manually bio clean the room. • If needed, caulk the windows, doors, and intake and return outlets, as well as the smoke detectors. If covering the smoke detectors, you must inform those responsible for fire safety on the site. •... -
Page 10: Physical Characteristics Of The Rhea Titan
* See §2.1.2 PROTOCOL SELECTION GUIDE. The information contained in this table is for information only. For any information on measurements and tolerance ® intervals, please contact airinspace at the address provided at the end of this document. RHEA Titan User Manual EN_ ed19_21-mars-2022 pg.10/35... -
Page 11: Installation Instructions
5. Switch on the unit and check that it starts up correctly (see 2.1.3 - Starting). 6. Write down any anomalies and potential damage on the delivery slip and notify the distributor or airinspace®. If you wish to contact the manufacturer or distributor, please provide the serial number and date of purchase. - Page 12 Beyond the single volume of the room, it is advisable to use several units to optimise the spatial coverage of the disinfection process in the following cases: • Significantly long room: consider an optimal diffusion range over a length of approximately 10 metres/15 metres.
-
Page 13: Instructions For Handling, Storing And Warehousing
INSTRUCTIONS FOR HANDLING, STORING AND WAREHOUSING 1.9.1 STORING THE RHEA TITAN UNIT The unit must be stored with its bottles inside in the operating position (4 months maximum for bottles, see. §1.8.2). Check that the unit is switched off. Arrange the power supply cable. Position the unit in its storage area. -
Page 14: Transporting The X-Cid Product
Transport must be carried out by duly trained and qualified personnel. The unit must be transported in its original packaging, maintained on its wheels, firmly anchored, and kept in an enclosed space (not transported on an open-air platform, for example). ATTENTION : ONLY TRANSPORT THE UNIT IN THIS POSITION 1.10.2 TRANSPORTING THE... -
Page 15: Use
DESCRIPTION OF THE USER INTERFACE RHEA Titan has been programmed to offer a simple, user-friendly interface to its users. The user interface comprises a 4.3-inch resistive colour touchscreen. It has an audible warning system. 2.1.1 FIRST BOOT Check that the RHEA Titan is connected to a ~230 V -50 Hz electrical network... - Page 16 The next step is to choose the disinfection protocol: There are 9 protocols: – 2 hours of contact time 3 ml/m – 2 hours of contact time 6 ml/m – 2 hours of contact time 8 ml/m – 1 hour of contact time 3 ml/m –...
-
Page 17: Protocol Selection Guide
2.1.2 PROTOCOL SELECTION GUIDE RHEA Titan has been validated according to standard EN 17272 depending on the different protocols, in order to give the user the choice to adapt to the best use. The table below will help with protocol choice: Available protocols Biocide range (Target X-CID... -
Page 18: Switching On The Unit
2.1.3 SWITCHING ON THE UNIT Check that the RHEA is connected to a ~230 V -50 Hz electrical network is connected to the mains via the power cable and the switch is set to “1”, the home When the RHEA Titan screen is displayed for several seconds during software start-up. -
Page 19: Description Of Navigation Icons
DESCRIPTION OF NAVIGATION ICONS Run and set the disinfection cycle Access the bottle menu Access the datalog Access the maintenance menu Return to previous menu Validate Open the bottle compartment Bottle replacement Turn the page Print the ticket Data extraction to USB drives RHEA Titan User Manual EN_ ed19_21-mars-2022... -
Page 20: Settings Menu For The Asd Cycle
SETTINGS MENU FOR THE ASD CYCLE Step 1: On the main screen, press the Run disinfection cycle (1) icon. Step 2: After pressing the button to launch the cycle, the machine will check the weight of the drums presents or not before going to the next step. It can take 10 seconds Step 3: During first use, or if the bottles are empty, or if they... - Page 21 Step 7: The use of an air chemical decontamination unit is validated. Position it in front of the RHEA Titan, ensuring that the display of the air chemical decontamination unit is visible. Check that the air chemical decontamination unit is switched on and that the red dot is present.
- Page 22 Step 8: Press “Yes” if the chaser is active. Press “No” if the chaser is inactive, and move on to step 8 bis Step 8 bis: Having pressed “No” in the previous step, it is possible to navigate to the pairing menu or to go back: Press “Yes”...
- Page 23 Step 10: After validating the summary table, the cycle launch screen appears. There are two options to start the cycle: Automatic start: Press the start button (1), which goes directly to step 10 Manual start: Press the remote control button (2). Leave the room. Once outside the room, press the “play”...
- Page 24 Step 13 (if air chemical decontamination unit): If using with an air chemical decontamination unit (see steps 5 to 7), this is started by the RHEA Titan at the end of the contact time. A theoretical purification time proportional to the size of the room is then displayed.
-
Page 25: Management And Replacement Of Bottles
X-CID diffusion is through a single nozzle while the other only produces a product-free airflow. The RHEA Titan total spray speed is thus halved, and the diffusion time required to diffuse the quantity of biocide is automatically adjusted. - Page 26 exceptionally when no other bottles of X-CID are available to reload the RHEA Titan and to restore optimum operation with 2 nozzles. Step 1: On the main screen, press the bottle button (1). Step 2: Once in the bottle menu, you can check the quantity of product remaining in the bottles.
- Page 27 Step 3: Disconnect the old bottle: Disconnect the quick connector by pressing the top and turning it a quarter turn to unlock it then lift it upwards carefully Remove the bottle from the bottle compartment Unscrew the dip tube and remove it (use gloves and a cloth) Take a new bottle Screw the dip tube on top...
-
Page 28: Changing The Language
CHANGING THE LANGUAGE Step 1: On the main screen, press the maintenance button (1). Step 2: Once in the maintenance menu, select the “language” button (2). To change the language, simply press the appropriate button. The flag as well as the text in the menu will change. -
Page 29: Setting The Date And Time
SETTING THE DATE AND TIME Step 1: Go to the maintenance menu (see step 1 for changing the language) Once in the maintenance menu, use the “date and time” button (1). Press this button to move on to the next step. Step 2: Once in the menu, press the boxes to display the digital keyboard and type in the figures... - Page 30 Step 2: After pressing the protocol button, a digital keyboard appears. Enter the 4-digit password. Type the code to move on to the next step or press the back button to go back to the previous screen Step 3: Once the password is validated, the “protocol” menu appears There are 9 protocols: –...
-
Page 31: Datalog Menu
Titan is compatible with USB drives with a capacity of less than 32 GB and formatted to a FAT32 file system. Use the airinspace® USB provided. Erase the Datalog file before loading any new information. RHEA Titan User Manual EN_ ed19_21-mars-2022... -
Page 32: Warnings And Error Reporting
WARNINGS AND ERROR REPORTING 2.9.1 WARNINGS “Leave the room” warning This screen appears when the cycle is launched. You have 45 seconds to leave the room. After this, spraying begins For 45 seconds, the red LED flashes and a warning beep sounds. -
Page 33: Error Reporting
2.9.2 ERROR REPORTING Power outage This screen appears when there is a power outage during a disinfection cycle. The three LEDs flash. Press the validation button to exit the error. Emergency stop This screen appears when the operator has stopped the cycle during spraying. The three LEDs flash. -
Page 34: Maintenance - Repair
Use a single-use or recyclable wipe. DISTRIBUTOR WARRANTY Contact your local airinspace® dealer. Note: any problems arising from an unauthorised repair attempt, modification, fall, use at incorrect voltage or operations that do not comply with the instructions in the User Manual, are not covered by the warranty. -
Page 35: Model Identification
RHEA and its date of purchase: ® airinspace CONTACT Airinspace S.E. +33 1 30 07 01 01 14, Rue Jean Monnet +33 1 30 07 01 02 78990 Elancourt France contact@airinspace.com www.airinspace.com...
