Summary of Contents for airinspace RHEA One

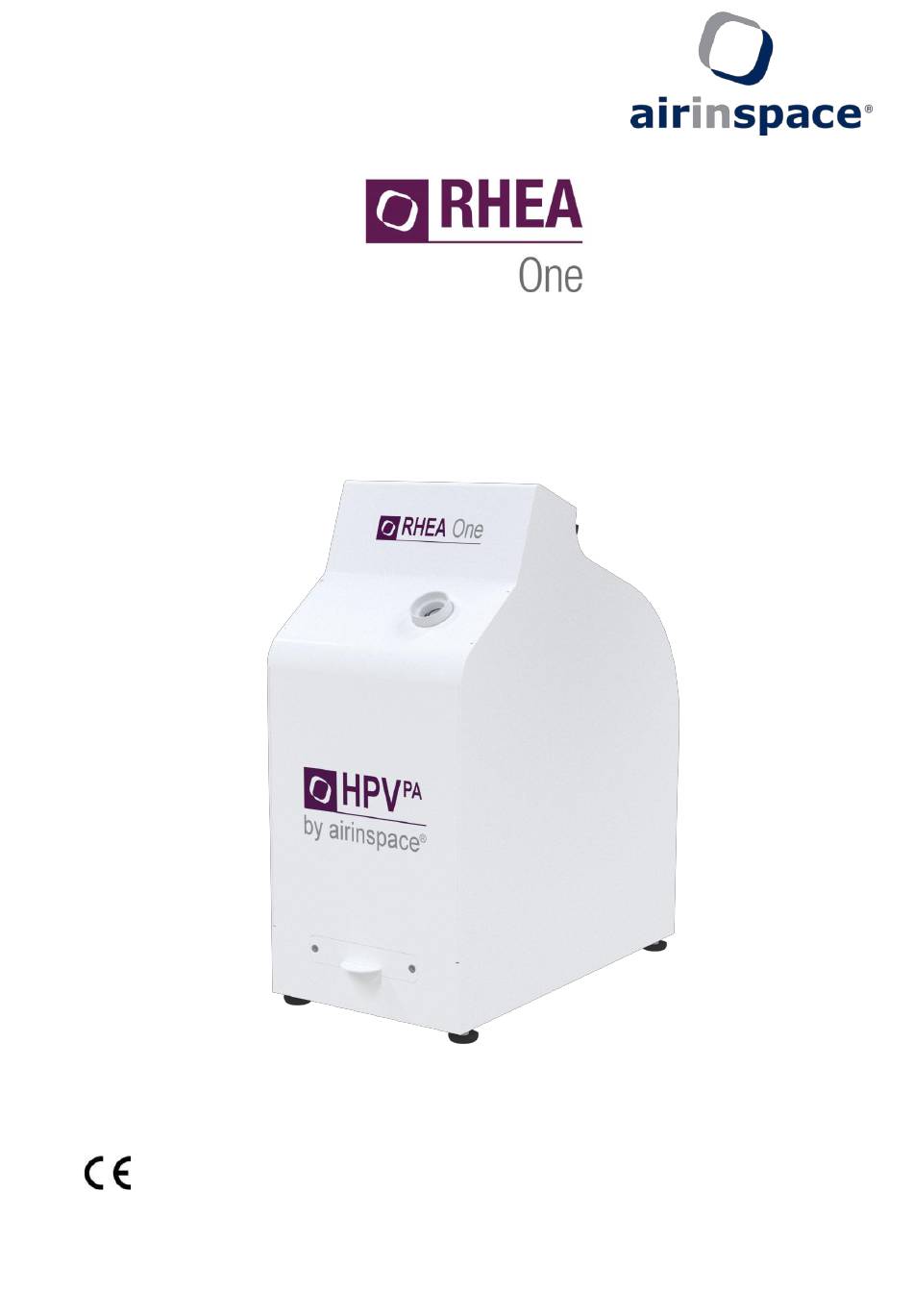

- Page 1 Device for airborne room disinfection by automated process USER MANUAL RHEA One/X-CID In line with the Low Voltage Directives 2014/35/EC, EMC Directive 2014/30/EC, and RED Directive 2014/53/CE p. 1/36 RHEA User Guide EN_ed02_06-décembre-2022...
- Page 2 WARNING Please read these instructions in their entirety before operating the RHEA One/X-CID for the first time (see section 2 – Use). To make it easier for different types of users to access more detailed information, these instructions consist of 3 sections: •...
-
Page 3: Table Of Contents
Transport ................................15 1.10.1 Transporting the RHEA One ......................15 1.10.2 Transporting the X-CID product ....................15 1.11 Disposal of the RHEA One unit ..........................15 SECTION 2 - USE ................................16 Description of the user interface .........................16 2.1.1 First boot ............................16 2.1.2 Protocol selection guide ........................ -
Page 4: Section 1 - General Information
RHEA O ORK ON THE INCLUDING ELECTRICAL CIRCUITS ELECTRONIC BOARDS MUST ® ONLY BE CARRIED OUT BY AIRINSPACE MAINTENANCE PERSONNEL OR DULY TRAINED PERSONNEL HE USER IS LIABLE FOR ANY DAMAGE REGARDLESS OF ITS NATURE CAUSED BY NON COMPLIANCE WITH THE USAGE RULES AND SAFETY INSTRUCTIONS p. -
Page 5: Regulatory Standard
Type of protection against electric shocks Earthing for all accessible metallic elements and internal metallic elements. IP 40 Degree of protection against water and solids The product is not ATEX certified. The RHEA One cannot be used in ATEX environment explosive area p. 5/36... -
Page 6: Description Of The Device
DESCRIPTION OF THE DEVICE 1.4.1 OVERVIEW Fixed housing Outlet nozzle Filter access Grip handle User interface Bottle Feet Power supply socket RJ45 connector for RHEA Satellite Compact or Wi-Fi dongle p. 6/36 RHEA User Guide EN_ed02_06-décembre-2022... -
Page 7: View Towards The X-Cid Bottle
1.4.2 VIEW TOWARDS THE X-CID BOTTLE Quick connector to attach to the dip tubes 2.5 L bottle of X-CID Dip tube to screw into the bottle p. 7/36 RHEA User Guide EN_ed02_06-décembre-2022... -
Page 8: Labelling
® contamination must be controlled. It should only be used with the X-CID solution sold by airinspace 1.6.2 OPERATING PRINCIPLES RHEA generates a hydrogen peroxide (7%), acetic acid (5%) and peracetic acid (0.4%)-based disinfection solution using a technique that provides a diffusion of micro-droplets that form a dry and cold mist. -
Page 9: Description Of The Disinfection Cycle
1.6.3 DESCRIPTION OF THE DISINFECTION CYCLE: • Clean the room with a detergent. • If needed, caulk the windows, doors and intake and return outlets, as well as the smoke detectors. covering the smoke detectors, you must inform those responsible for fire safety on the site. If covering intake and return outlets, check the technical feasibility and potential peripheral impacts. -
Page 10: Specifications Of Rhea One
1.6.4 SPECIFICATIONS OF RHEA Power supply ~200/240 V; 50/60 Hz Maximum electrical power 1205 VA max/1190 W Isolated by removable power cable Electrical protection Fuse protection Ph + N bipolar switch (2x10AT) Bluetooth Low Energy (Utilization in band from 2400 MHz to 2483.5 MHz with maximal radiated power: 1 mW) Wireless communication protocols 802.11B Wi-Fi (only active when extracting data) -
Page 11: Installation Instructions
The information contained in this table is for information only. For any information on measurements and ® tolerance intervals, please contact airinspace at the address provided at the end of this document. INSTALLATION INSTRUCTIONS NOTA : if the device is supplied without a carrying case, skip directly to step 3. - Page 12 Beyond the single volume of the room, it is advisable to use several units to optimise the spatial coverage of the disinfection process in the following cases: • Significantly long room: consider an optimal diffusion range over a length of approximately 10 metres/15 metres.
- Page 13 p. 13/36 RHEA User Guide EN_ed02_06-décembre-2022...
-
Page 14: Instructions For Handling, Storing And Warehousing
INSTRUCTIONS FOR HANDLING, STORING AND WAREHOUSING 1.9.1 STORING THE RHEA The device can be stored with the bottle inside in its operating position. Check that the unit is switched off. Arrange the power supply cable. Position the unit in its storage area. The unit must be stored in a clean area with an atmosphere not polluted by industrial activities. -
Page 15: Transport
1.10 TRANSPORT 1.10.1 TRANSPORTING THE RHEA Before transport: remove the bottle from the unit, seal it them with its original cap and store it in a dedicated place. Protect the unit against impacts and scratches. The unit must be transported in its original packaging, maintained on its feet, firmly anchored, and kept in an enclosed space (not transported on an open-air platform, for example). -
Page 16: Section 2 - Use
SECTION 2 - USE DESCRIPTION OF THE USER INTERFACE RHEA has been programmed to offer a simple, user-friendly interface to its users. The user interface comprises a 3.5-inch capacitive colour touch screen. It features a buzzer. 2.1.1 FIRST BOOT During first use, the RHEA offers you the option of changing the settings. - Page 17 The next step is to choose the disinfection protocol for the next disinfection cycle: There are 9 protocols: – 2 hours of contact time 3 ml/m – 2 hours of contact time 6 ml/m – 2 hours of contact time 8 ml/m –...
-
Page 18: Protocol Selection Guide
2.1.2 PROTOCOL SELECTION GUIDE RHEA has been validated according to standard NF EN 17272: 2020, depending on the different protocols, in order to give the user the choice to adapt to the best use. The table below will help with protocol choice: Available protocols Biocide range (target X-CID... -
Page 19: Switching On The Unit
2.1.3 SWITCHING ON THE UNIT Check that the RHEA is connected to a ~230 V -50 Hz electrical network. ATTENTION : T HE ELECTRICAL SUPPLY MUST COMPLY WITH REGULATORY TEXTS AND BE PERIODICALLY CHECKED NLY USE POWER CABLES SUPPLIED BY THE MANUFACTURER ATTENTION : THE ELECTRICAL CONNECTOR MUST REMAIN EASILY ACCESSIBLE TO THE OPERATOR AFTER INSTALLATION. -
Page 20: Description Of The Main Menu
DESCRIPTION OF THE MAIN MENU Access to the settings menu for the disinfection cycle Access to the bottles menu Access to the maintenance menu Access to the data log p. 20/36 RHEA User Guide EN_ed02_06-décembre-2022... -
Page 21: Settings Menu For The Asd Cycle
SETTINGS MENU FOR THE ASD CYCLE On the Main Menu screen, press the RUN DISINFECTION CYCLE icon. This takes you to the user settings screen. Press the grey rectangular boxes to enter the following information: Operator name Company name Department Room number You don’t have to enter this information to start the disinfection cycle. - Page 22 You can use this screen to schedule the start-up of the Airinspace air purifier eCHEM Cubair at the end of the contact time, in order to speed up the availability of the room treated by ASD. A summary table is displayed with the information from previous steps (operator name, company, department, room number, size of the room, total cycle time).
- Page 23 After pressing the START button the time-out screen will be displayed. It indicates the number of seconds remaining before spraying starts (60 seconds). To stop the cycle, press the STOP button. 58 sec A beep notifies the operator that they must leave the room.
-
Page 24: Bottle Menu
Once the contact time elapses, the disinfection cycle is finished and the end of cycle screen appears. It is possible to enter wearing personal protective equipment (even when using the eCHEM Cubair purifier). If using a eCHEM Cubair purifier, check that the H concentration is less than 1 ppm using a H detector (sold separately). -
Page 25: Bottle Replacement
BOTTLE REPLACEMENT To replace the bottle: Disconnect the quick connector by pressing it and turning it a quarter turn to unlock it then lift it upwards carefully (1) and (2). - Unscrew the dip tube (3). - Take a new bottle and unscrew its cap, checking that it is indeed a 2.5 L bottle of X-CID and that the expiry date shown on the bottle has not passed. - Page 26 RHEA is equipped with a pre-filter to prevent coarse dust and/or liquid from entering the motor. It should be replaced every 40 ASD cycles. RHEA displays a message when it needs to be changed. This message appears when you want to start an ASD cycle. (Message opposite).
-
Page 27: Description Of The Settings Menu Screen
DESCRIPTION OF THE SETTINGS MENU SCREEN Change language icon Change password Change the date and time Bluetooth settings Change protocol Settings p. 27/36 RHEA User Guide EN_ed02_06-décembre-2022... -
Page 28: Language Selection
LANGUAGE SELECTION On the Main Menu screen, press the MAINTENANCE icon. This icon will display the settings menu. To change the language, press until the desired language appears. Instructions are automatically displayed in the selected language. PASSWORD SETTING On the Main Menu screen, press the MAINTENANCE icon. -
Page 29: Protocol Setting
PROTOCOL SETTING On the Main Menu screen, press the MAINTENANCE icon. To change the protocol, press The password screen appears. Enter the 4-digit password. Press Enter to validate the password. Press the cancel button to go back to the main screen. The next step is to choose the disinfection protocol: There are 9 protocols: (see 2.1.2) –... -
Page 30: Bluetooth Menu
BLUETOOTH MENU On the Main Menu screen, press the MAINTENANCE icon. To access the eCHEM Cubair purifier pairing menu, press A list of all eCHEM Cubair air cleaners within the RHEA One's Bluetooth detection range will appear. "XXXX" corresponds to the serial number of the eCHEM Cubair listed. -
Page 31: Datalog Menu
DATALOG MENU On the Main Menu screen, press the Data log icon. From this menu, you can view the spraying cycles carried out with the machine and export this data using a USB key. to scroll left and right and view the different spray cycles. You can export data from the data log as a .csv file. - Page 32 ➢ Yellow screen background: notifies the operator.of a fault. This power fault screen appears when there is a power outage during a disinfection cycle. Press the validation button to exit the error. This screen is used to signal the emergency stop command.
- Page 33 2.10 POSITIONING OF ELECTRICAL COMPONENTS References Description Electrical box Motor differential pressure switch Peristaltic pump Vacuum Motor Relay Fixed connector + fuses Buzzer Controller board 24 Vdc power supply p. 33/36 RHEA User Guide EN_ed02_06-décembre-2022...
-
Page 34: Menu Tree
2.11 MENU TREE p. 34/36 RHEA User Guide EN_ed02_06-décembre-2022... -
Page 35: Section 3 - Maintenance - Repair
Use a single-use or recyclable wipe. MANUFACTURER’S WARRANTY Contact your local airinspace® dealer. Note: any problems arising from an unauthorised repair attempt, modification, fall, use at incorrect voltage or operations that do not comply with the instructions in the User Manual, are not covered by the warranty. - Page 36 RHEA and its date of purchase. ® airinspace CONTACT airinspace® S.E. +33 1 30 07 01 01 14, rue Jean Monnet +33 1 30 07 01 02 78990 Elancourt France contact@airinspace.com www.airinspace.com...
