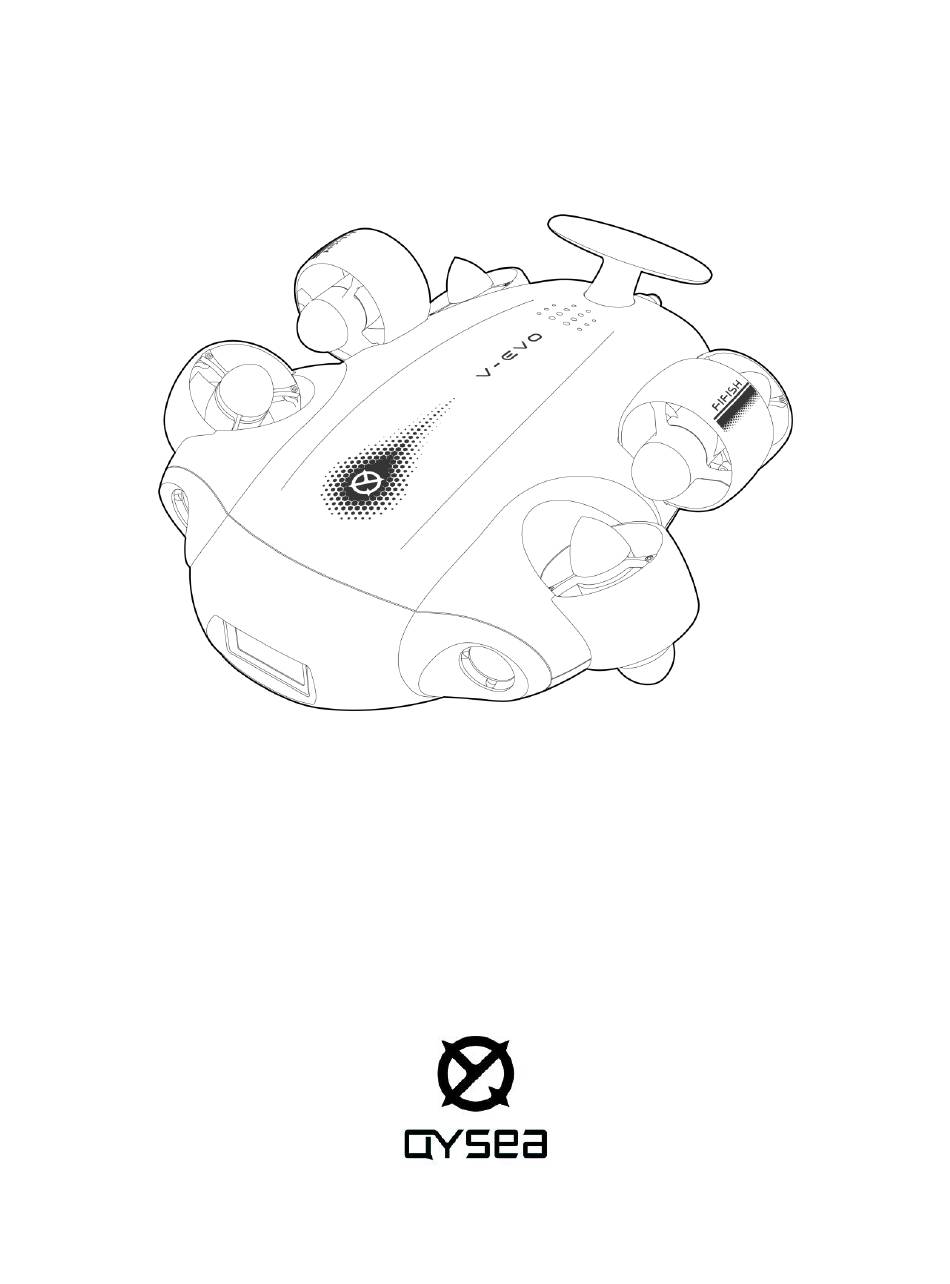

FIFISH V- EVO
Quick Start Guide
V 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIFISHV-EVO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for QYSEA FIFISHV-EVO

Summary of Contents for QYSEA FIFISHV-EVO

  • Page 1 FIFISH V- EVO Quick Start Guide V 1.0...

  • Page 3: Safety And Regulations

    Thank you for choosing FIFISH as your underwater exploring kit. This Quick Start Guide will help you learn and operate FIFISH V-EVO, the 1 compact size OMNI-directional ROV. Safety and Regulations Operating FIFISH products requests training and practice. Please read through this document before operating in water.
  • Page 4 Introduction About FIFISH V-EVO FIFISH V-EVO is the first underwater drone to combine a 4K · 60FPS high frame- rate camera with 360-degree autonomous movements, giving you the ability to create their own unique and cinematic underwater films and explorations. Compact drone robotics and AI black technologies converge together to deliver a newly-immersive underwater experience.
  • Page 5 RC (Remote Controller) 9 10 1. Left Control Stick 10. Tether Port (3.5 mm head port) 2. Thrusters LOCK/UNLOCK 11. Control Mode (Attitude / Sport 3. Right Control Stick / Combine) 4. ON/OFF 12. Video Record/Stop 5. Depth Holding (ON/OFF) 13.
  • Page 6 Spool and Tether 1. Spool Handle 4. Tether Plug 2. Tether Regulator 5. Spool Frame 3. Foldable Handle 6. Controller Plug...

  • Page 7: Preparation & Connection

    Preparation & Connection Charging 1. ROV Charging (Please charge the ROV and remote controller for the first use) Charging Full RED LED indicator illuminates while charging and green LED indicator illuminates while fully charged. 2. RC Charging Red, less than 30% Press the power button to check the battery level...
  • Page 8 1. APP download & Installations Option 1. Scan the QR code below to download FIFISH APP. Option 2. Search the FIFISH on App Store (iOS) or GooglePlay (Android). Option 3. Go to QYSEA website (www.qysea.com) support/APP download 2. Hardware connection Overview of Hardware connection...
  • Page 9 A. Plug the tether (3.5 mm head) into remote controller B. Take off the protect cap, tie the knot around the rear wing C. Plug the tether (ROV end) into the ROV, the ROV will automatically turn on. The music will play 5 chimes: (Do, Re, Mi, Do, Mi)
  • Page 10 D. Turn ON the remote controller. Press and hold the ON/OFF button, until you hear 7 low to high chimes (Do, Re, Mi, Fa, Sol, La, Si) The “ON/OFF”, “Depth Holding” and “LOCK/UNLOCK” will rotate clockwise, which indicates “Ready to be connected”...
  • Page 11 F. Check the remote controller, the “ON/OFF” and “LOCK/UNLOCK” buttons consistently on indicates the successful hardware connection 3. Software connection A. Connect with the RC’s Wi-Fi Find the Wi-Fi network name “FIFISHRC_xxxx” The password is “1234567890”...
  • Page 12 B. Click ‘GO DIVE’ Activate LIVE-Streaming Pilot / Control WIFI General Spector Status Mode Status Settings Depth Water ROV’s Control Holding Temp. Battery Mode Main Menu Camera Settings White Resolution Balance Remaining Shutter Exposure Time / Pics (photo mode) Value Depth Photo/Video Indicator...
  • Page 13 C. Deploy the ROV Pull ONLY on the tether and deploy the ROV into the water. Unlock the thrusters and start dive. The depth shall greater than 1 meter (about 3 feet) for better experience. 4. Retrieve Lock the thrusters and stop recording the video before closing the FIFISH App.
  • Page 14 Introduction of Control The FIFISH V-EVO uses the patented Smart Thruster Array™ to ensure the ultimate maneuverability and delivers the 6 DOF (degree of freedom).  V-EVO can move in descend & ascend, left and right, forward and backward.  V-EVO can rotate in 360 yaw (z-axis), 360 pitch (y-axis), 360 roll (x-axis). We have simplified the Left Joystick, Right Joystick, Left Wheel and Right Wheel into the following symbol.

  • Page 15: Methods Of Control

    Methods of Control FIFISH V-EVO supports 3 modes for control: A, S, and C. A is Attitude Auto mode, S is Sport mode, C is the Combination mode. 1. Attitude Mode Attitude mode is designed for beginners. The ROV will not roll in Attitude mode. The ROV will stay in same depth moving when depth holding is ON.
  • Page 16 Robotic Arm Installation (Optional) Please power off the ROV before installing A. Insert the bracket into front vent holes B. B.Fasten the 3 screws to secure robotic arm on the bracket...
  • Page 17 C. Align the cable to the Q-interface and fasten the bolt D. The robotic arm can be activated ONLY in Attitude mode (Mode A). Use the right wheel to open and close the robotic claws...

  • Page 18: Maintenance

    Maintenance 1. Soak ROV at least 1 hour after dive, then let the motors run in fresh water at least 10 minutes and rinse the ROV with fresh water. Air dry and avoid direct sunlight (for more information, please check the Maintenance Guide) 2.

  • Page 19: Specifications

    Specifications: ROV: Dimension 383 mm × 331 mm × 143 mm (15 in × 13 in × 5 5/8 in) Weight 3.9 kg (9 lbs) Thrusters 6 (4 × Vector + 2 × Horizontal) Maneuverability 6 DOF (Degree of Freedom): Moving: left &...

  • Page 20: Remote Controller

    LED Beams: Brightness 5,000 lumen 5,500 K (Correlated Color Temperature) Beam Angle 120° Dimming Remote Controller: Wireless 5 GHz Wi-Fi supported Battery Life 1 ~ 4 hours Copy &Download Support Micro SD Card FAT32 and exFAT format (≦128GB) Charger: Output: 12.6 V ⎓ 5A, AC Input: 100-240 V, 50/60 Hz，1.3 A MAX Output: 5 V ⎓...
  • Page 21  Loss of, or damage to, your data by a product.  Any software programs, whether provided with the product or installed subsequently.  Failure of, or damage caused by, any third-party products, including those that QYSEA may provide or integrate into the QYSEA product at your request.

  • Page 22: Battery Maintenance

    1. Motors Maintenance (After Every Dive) 1.1. Connect the remote controller to V-EVO, and open the FIFISH App (see Hardware connection section, in Quick Start Guide). 1.2. Make sure every motor is immersed inside fresh water, see the picture (vertical soaking in bucket will have same results). 1.3.
  • Page 23 Maintenance Guide In order to have your ROV in a good condition at all time, soak and clean your ROV with clean fresh water after every dive. The cleaning process in FIFISH App will instruct you to get rid of the salt residues and salt crystallization inside the motors, as well as, clean the chlorine from pool water.
