User Manual for

U-QPS(Underwater Quick

Position System)

Table of Contents

Need help?

Do you have a question about the 5057202 and is the answer not in the manual?

Questions and answers

Summary of Contents for QYSEA 5057202

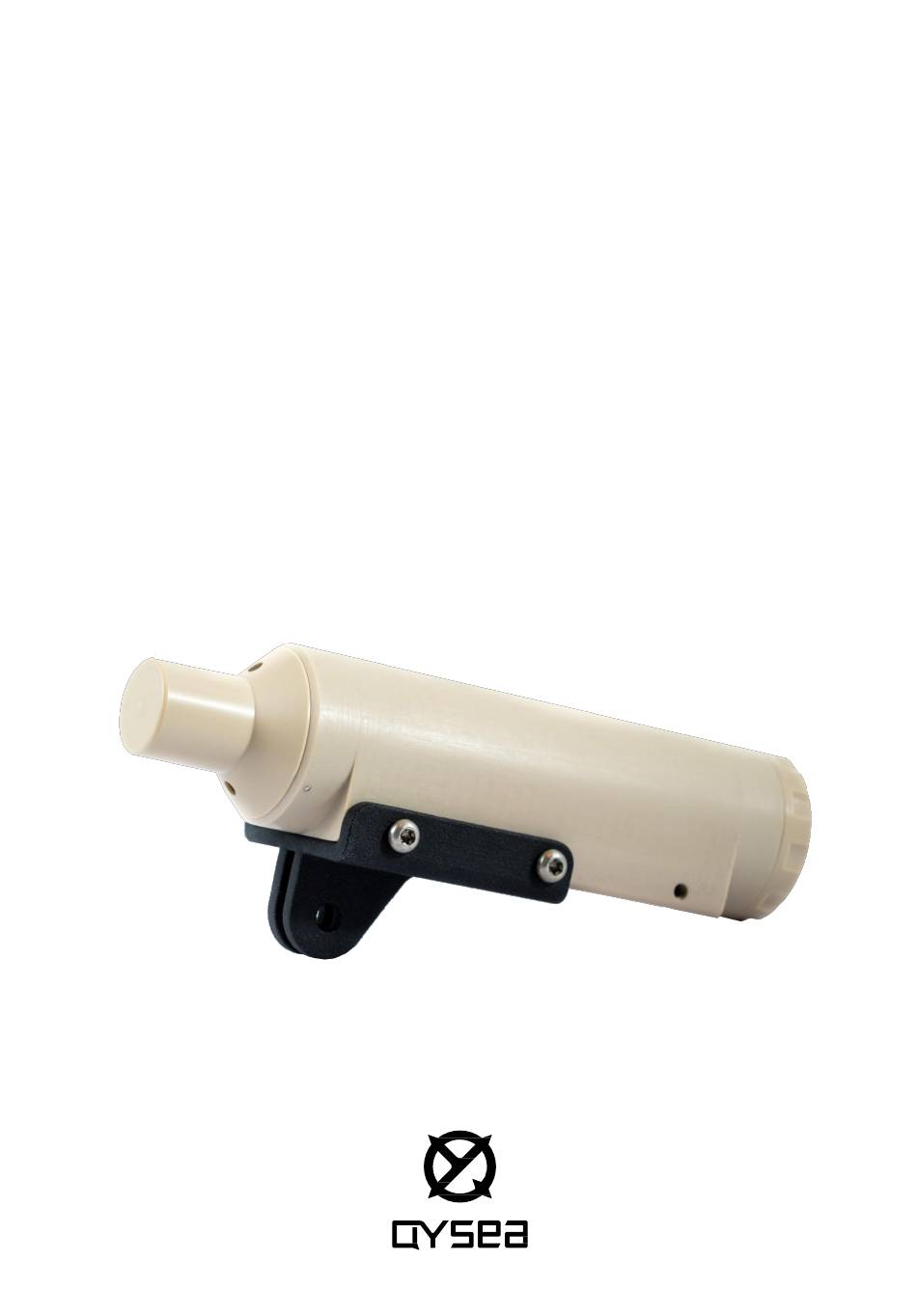

Page 1 User Manual for U-QPS(Underwater Quick Position System)
Page 2: Table Of Contents
Contents Introduction and packing list··········································································································01 Out of box audit······················································································································02 Product specification··············································································································03 Usage instructions···························································································································04 Installation································································································································ 05-16 Operation································································································································· 17-23 Maintenance and after-sales support····················································································24 Disclaimer········································································································································25...
Page 3: Introduction And Packing List
/ Introduction and Packing List Serial Item Name Quantity Unit Number U-QPS Box Antenna Adapter AC cable TypeC USB cable MINI USB to ethernet cable U-QPS Bracket U-QPS Mount M3X16 inner hexagon screw M4X16 inner hexagon screw M3X6 inner hexagon screw Φ2.5 inner hexagon wrench Φ3 inner hexagon wrench User manual...
Page 4: Out Of Box Audit
/Out of Box Audit Before operating FIFISH products, please be sure to receive relevant training and take practices, and read this document thoroughly before performing underwater operations. Operations in violation of QY safety rules may result in the consequence that your safety and interests cannot be guaranteed. 1.
Page 5: Product Specification
/Product Specification Item Specification Locator Depth Rating 300m Locator Operating Temp. -5℃~60℃ Locator Battery lifetime ~10hours Locator Range 100m or 300m Locator Directivity Omnidirectional ( 360degrees) Receiver Operating Temp. -10℃ ~ 60℃ Receiver Transducers Receiver Directivity Omnidirectional ( 360degrees) Max range 300m Frequency 31.25-250KHz...
Page 6: Usage Instructions
6. Check whether the underwater robot and the remote control are working normally when connected to the connector on the underwater vehicle. 7. Check the batteries of mobile phones, tablet PCs and laptops. 8. After-sales mailbox: support@qysea.com...
Page 7: Installation
/Installation 1.Signal transmitter U1 (referred to as "U1") 1.1 Mounting bracket: load the QPS bracket onto U1 (do not tighten the U1 bottom cover before use) signal transmitter U1 screw U-QPS bracket...
Page 8 /Installation 2.Install the locator on the FIFISH PRO V6 PLUS Topside Antenna Locator U1 FIFISH PRO V6 PLUS...
Page 9 /Installation 2. Install the locator on the FIFISH PRO V6 PLUS...
Page 10 /Installation 3. Open the back cover of U1 turn the rotary switch at the back to the appropriate channel and then tighten the back cover until the indicator light is on...
Page 11 /Installation 4. Install and fix the antenna...
Page 12 /Installation 5. Connect the antenna to the second port of topside 6. Turn the IP switch on topside to 192.168.2.94...
Page 13 /Installation 7. Connect the network port of topside...
Page 14 /Installation 8. Connect the remote controller with the FIFISH special network cable...
Page 15 /Installation 9. Connect the power supply 9.1 Connect the power supply and turn on the power switch 10. Connect the battery 10.1 Connect the battery（The battery need to buy with yourself）and turn on the power switch...
Page 16 /Installation 11. Connect the battery 11.1 Connect the battery（The battery need to buy with yourself）and turn on the power switch...
Page 17 /Installation 12. Connect the WiFi of the remote control, open the FIFISH app and enter the UQPS setting interface Set up the channel of U1, longitude and latitude of topside and antenna The direction and scope of the search...
Page 18 /Installation 13. Observe whether the U1 indicator light and the GPS indicator light on topside are always on in green...
Page 19 /Installation 14. The antenna is starting to receive signal...
Page 20: Operation
/Operation 1. Open the FIFISH app click the botton of map...
Page 21 /Operation 2. Open the FIFISH app click the botton of map 11.1 Control the ROV to find target...
Page 22 /Operation 3 Open the FIFISH app 3.1 FIFISH APP map will record the movement track of the ROV 3.2 FIFISH APP map will record the movement track of the ROV...
Page 23 /Operation 4 Open the FIFISH app 4.1 After the V6 PLUS had found the target,then mark the point...
Page 24 /Operation 5 Open the FIFISH app 5.1 V6 PLUS return to base...
Page 25 /Operation 6 Open the FIFISH app 6.1 V6 PLUS can lead diver to mark points to find targets...
Page 26: Maintenance And After-Sales Support
WeChat official account (FIFISH Underwater Robot) and the official website. 2. Contact number: +86-755-2266-2313 Working hours: Monday to Friday, 9:30-19:00 3. Email: support@qysea.com 4. If there is a machine malfunction, please record the malfunction video in advance, as well as...
Page 27: Disclaimer
Failures or damages caused by any third-party products (including products that QYSEA may provide or integrate into QYSEA products at the request of users). Any damage caused by non-QYSEA technology or other support (for example, the support for solving the "operation method" problem or incorrect product settings, installation and firmware upgrades).
