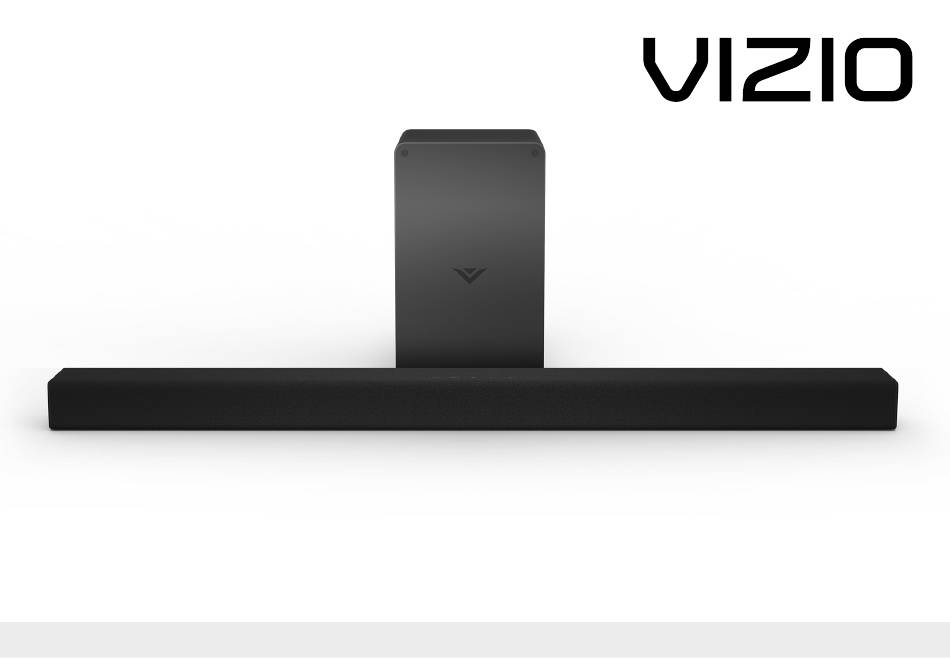

- Page 1 USER MANUAL Model: SB3621n-H8 VIZIO 36" 2.1 Channel Sound Bar with Bluetooth Please read this guide before using the product.
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit.
- Page 3 • WARNING: Exposure to loud sounds can damage your hearing causing hearing loss and tinnitus (ringing or buzzing in the ears). With continued exposure to loud noises, ears may become accustomed to the sound level, which may result in permanent damage to hearing without any noticeable discomfort.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Package Contents ......................5 Controls and Connections ....................6 First-Time Setup......................10 Proper Placement ......................14 Using the Remote ......................15 LED Indicators .........................16 Using Button Combinations ..................18 Programming the Sound Bar ..................19 Bluetooth Audio Pairing ....................20 Using Bluetooth mode ....................21 Advanced Setup ......................22 Connecting a Subwoofer ....................23 Wall-Mounting the Sound Bar ..................24 Help &... -
Page 5: Package Contents
PACKAGE CONTENTS VIZIO Sound Bar Wireless Subwoofer Remote Control with 2x AAA Batteries Coaxial Audio Stereo RCA to Digital Optical Cable 3.5mm Audio Cable Cable 3.5 mm to 3.5 mm User Manual Quick Setup Steps Audio Cable 2 x Wall... -
Page 6: Controls And Connections
CONTROLS AND CONNECTIONS Back of Sound Bar USB* Power Port USB In Analog Audio In (Stereo 3.5mm) English - 6... - Page 7 OPTICAL DIGITAL Digital Optical Audio In Coaxial In * Supports .WAV and .MP3 file format playback only. English - 7...
- Page 8 Top of Sound Bar Power Press to turn sound bar on or off. Input Press to change the audio source. Volume Increase or decrease the loudness of the audio. Bluetooth Input Hold to pair. (See ‘Bluetooth Audio Pairing’ for more information.) English - 8...
- Page 9 Back of Subwoofer Pairing Button LED Indicator Power Port Power Button English - 9...
-
Page 10: First-Time Setup
FIRST-TIME SETUP Back of Sound Bar CHOOSE ONE CABLE* AND CONNECT IT TO YOUR TV 3.5MM TO DIGITAL OPTICAL DIGITAL COAXIAL CABLE RCA CABLE CABLE † † BETTER BETTER GOOD GOOD BETTER BETTER * Not all TVs have the audio outputs shown †... - Page 11 Back of Sound Bar Connect the power cable to the sound bar AC IN as shown. Plug the power cable into an electrical outlet. The sound bar will automatically begin searching for an active input.* The LED indicators on the front of the sound bar will begin cycling in pairs through inputs until an audio source is detected.** Tip: Pressing the INPUT button will stop...
- Page 12 Back of Subwoofer Connect a power cable to the subwoofer. Plug the power cable into a power outlet. The subwoofer should automatically power on and link to the sound bar when plugged in. The LED will glow to solid to confirm. English - 12...
- Page 13 Remove the battery cover by gently sliding it away from the remote. Insert the included batteries and gently slide the battery cover back into place. When needed, VIZIO recommends replacing the batteries that came with this remote with two, new Duracell ‘AAA’ alkaline batteries.
-
Page 14: Proper Placement
PROPER PLACEMENT For the best surround sound experience, position the sound bar and subwoofer as shown. The sound bar should be close to ear level. Sound bar is centered below the TV. Note: Do not block the subwoofer port. Subwoofer Port should be facing the front of the couch. -
Page 15: Using The Remote
USING THE REMOTE Input Power Change the input source. Turn on or off. TruVolume Virtual:X Turns TruVolume on/off. Turns Virtual:X on/off. Bluetooth Enter/Play/Pause Switches to Bluetooth mode. Select an option, play or pause. (Long press for Pairing Mode) Next Previous Skip to the next track. -
Page 16: Led Indicators
Press and hold the button on the remote. The sound bar will power down after 15 minutes if no device is found. You can now search for the sound bar (VIZIO Bluetooth (When searching for device) SB3621n) using your Bluetooth Device. - Page 17 Function LED Behavior Description Press the EQ button and then press the Next/Previous button to to turn on Movie Movie/Music each equalizer setting. Mode Note: Movie mode is on my default. Music Press the SUB button then press the Next/Previous button to increase/ Subwoofer decrease the treble level.
-
Page 18: Using Button Combinations
3 times Reset Note: This will erase all settings and preferences that you have set. Enable VIZIO Enable/disable the use of a VIZIO TV remote control to power on and VIZIO TV TV Remote Remote adjust the volume of the sound bar. To enable/disable this function,... -
Page 19: Programming The Sound Bar
PROGRAMMING THE SOUND BAR You can program the sound bar to accept TV remote IR commands. Function LED Behavior Description Press the OK and Volume Down buttons to put the sound bar into learning Learn Volume mode. While the sound bar is in learning mode, press the Volume Down button Down on the TV remote control. -
Page 20: Bluetooth Audio Pairing
Once the device is paired, the LED Indicators will stop flashing. Top of Sound Bar You can now search for the sound bar (VIZIO SB3621n) using your Bluetooth device. For more information, refer to the user documentation that came with the device. -
Page 21: Using Bluetooth Mode
USING BLUETOOTH MODE Your sound bar supports music streaming from smart phones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. Once you have paired your source device to the sound bar, as long as you stay within range of the sound bar, your device should remain paired. -
Page 22: Advanced Setup
ADVANCED SETUP Back of Sound Bar 3.5MM TO 3.5MM TO DIGITAL DIGITAL DIGITAL DIGITAL OPTICAL CABLE OPTICAL CABLE COAXIAL CABLE COAXIAL CABLE RCA CABLE RCA CABLE USB Thumb Drive* * Supports .WAV and .MP3 file format playback only. Tablet/MP3 Player/Laptop Network Media Player Game Console English - 22... -
Page 23: Connecting A Subwoofer
CONNECTING A SUBWOOFER The subwoofer has already been paired with the sound What does pairing mean? bar by VIZIO. However, the subwoofer may need to be Pairing means to wirelessly connect. re-linked to the sound bar if there is no sound coming from the subwoofer. -
Page 24: Wall-Mounting The Sound Bar
WALL-MOUNTING THE SOUND BAR Wall-Mount Screw Holes Back of Sound Bar Insert the two wall-mount screws into the wall-mount screw holes, and then tighten them with a Phillips screwdriver. Place the included wall mounting template against the wall under your TV. Mark the two bracket holes using a pencil. - Page 25 Be sure your screws are attached to wood studs, drywall anchors (for drywall), or concrete anchors (for brick/concrete walls). Screws for attaching the brackets to the wall are not included. Choose the screw type and length appropriate to your home’s construction. If in doubt, consult a professional installer. *Bracket Screw Not Included with sound bar Suggested Screw Size: 3.5 diameter.
- Page 26 Why register? Customized Support Get assistance quickly with your information on hand. News and Offers Take advantage of the latest news and special offers from VIZIO. Safety and Satisfaction Stay up-to-date with important product updates and notifications. English - 26...
- Page 27 Award-Winning Customer Care At Your Convenience. NEED HELP? Go to: support.vizio.com Find help with: New product setup • • Connecting your devices • Technical problems • Product updates and more Live chat support available You can also contact our support team at:...
-
Page 28: Help & Troubleshooting
HELP & TROUBLESHOOTING • Press the POWER button on the remote control or on the top of your sound bar. There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. •... -
Page 29: Limited Warranty
VIZIO’s Responsibilities If VIZIO determines that a product is covered by this warranty, VIZIO will (at its option) repair or replace it, or refund the purchase price to you. There will be no charge for parts or labor during the warranty period. Replacement parts may be new or recertified at VIZIO’s option and sole discretion. Replacement parts and VIZIO’s labor are warranted for the remaining portion of the original warranty or for ninety (90) days from warranty service, whichever is longer. - Page 30 What to Do If You Are Not Satisfied With Service If you feel VIZIO has not met its obligations under this warranty, you may attempt to resolve the issue informally with VIZIO. If you are unable to resolve the issue informally and wish to file a formal claim against VIZIO, and if you are a resident of the United States, you must submit your claim to binding arbitration according to the procedures described below, unless an exception applies.
- Page 31 General No employee or agent of VIZIO may modify this warranty. If any term of this warranty, other than the class action waiver, is found to be unenforceable, that term will be severed from this warranty and all other terms will remain in effect. If the class action waiver is found to be unenforceable, then the entire section titled “Binding Arbitration Agreement;...
-
Page 32: Legal & Compliance
You must dispose of this product properly, according to local laws and regulations. Because this product contains electronic components and/ or a battery, it must be disposed of separately from household waste. Contact local authorities to learn about disposal and recycling options. For more information, visit vizio.com/ environment. - Page 33 All software is provided subject to software license agreements and you agree that you will be bound by such license agreements in addition to other applicable terms of use. By using the VIZIO products, you agree to the VIZIO Terms of Service and Privacy Policy. The VIZIO Terms of Use and Privacy Policy may be updated from time to time and are available to view at vizio.com/terms and vizio.com/privacy, respectively.
-
Page 34: Specifications
SPECIFICATIONS Sound Bar: One 1.89" x 3.54" (48 x 90 mm) Full Range Driver for each channel (1 for left, 1 for right,) Subwoofer: One 5.25" (127 mm) Driver One 3.5mm Stereo Audio Bluetooth Connections: One Digital Optical (Toslink) One USB (Supports .WAV and .MP3 format only) One Digital Coaxial Sound Pressure Level (System):... - Page 35 Logos are registered trademark owned by Bluetooth SIG,Inc. and any use of such marks by ® VIZIO, Inc. is under license. Other trademarks and trade names are those of their respective owners. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, &...
- Page 36 © 2020 VIZIO INC. ALL RIGHTS RESERVED. 200427SL English - 36...
