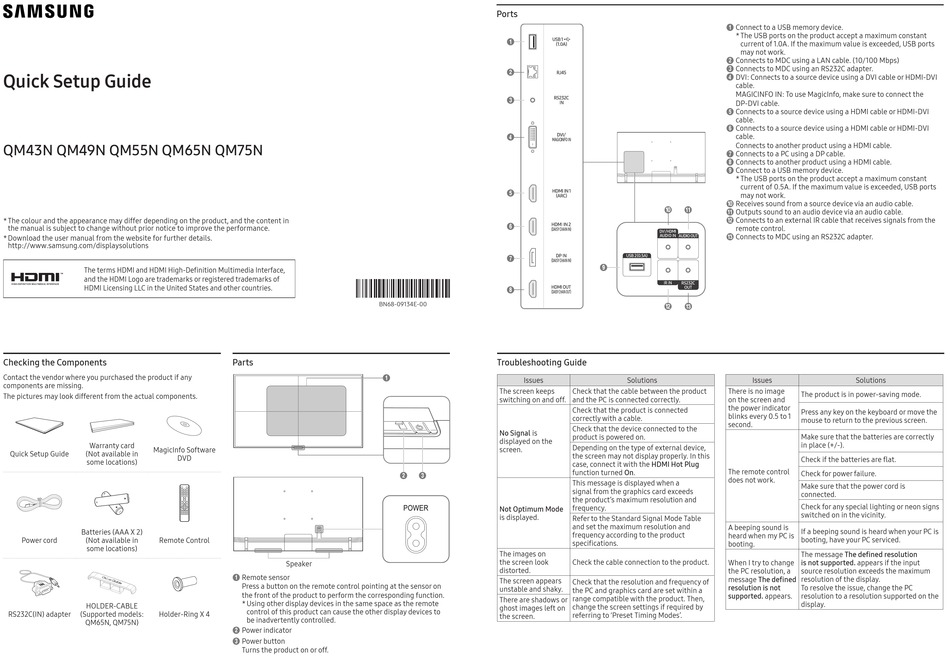

Quick Setup Guide
QM43N QM49N QM55N QM65N QM75N
* The colour and the appearance may differ depending on the product, and the content in
the manual is subject to change without prior notice to improve the performance.
* Download the user manual from the website for further details.
http://www.samsung.com/displaysolutions
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.

Checking the Components

Contact the vendor where you purchased the product if any
components are missing.
The pictures may look different from the actual components.
Warranty card
MagicInfo Software
Quick Setup Guide
(Not available in
DVD
some locations)
Batteries (AAA X 2)
Power cord
(Not available in
Remote Control
some locations)
HOLDER-CABLE
RS232C(IN) adapter
(Supported models:
Holder-Ring X 4
QM65N, QM75N)
BN68-09134E-00
Parts
1
2
Speaker
Remote sensor
1
Press a button on the remote control pointing at the sensor on
the front of the product to perform the corresponding function.
* Using other display devices in the same space as the remote
control of this product can cause the other display devices to
be inadvertently controlled.
Power indicator
2
Power button
3
Turns the product on or off.

Ports

1
2
3
4
5
6
7
8

Troubleshooting Guide

Issues
The screen keeps
Check that the cable between the product
switching on and off.
and the PC is connected correctly.
Check that the product is connected
correctly with a cable.
Check that the device connected to the
No Signal is
product is powered on.
displayed on the
Depending on the type of external device,
screen.
the screen may not display properly. In this
case, connect it with the HDMI Hot Plug
function turned On.
3
This message is displayed when a
signal from the graphics card exceeds
the product's maximum resolution and
frequency.
Not Optimum Mode
is displayed.
Refer to the Standard Signal Mode Table
and set the maximum resolution and
frequency according to the product
The images on
the screen look
Check the cable connection to the product.
distorted.
The screen appears
Check that the resolution and frequency of
unstable and shaky.
the PC and graphics card are set within a
range compatible with the product. Then,
There are shadows or
change the screen settings if required by
ghost images left on
referring to 'Preset Timing Modes' .
the screen.
Connect to a USB memory device.
1
* The USB ports on the product accept a maximum constant
current of 1.0A. If the maximum value is exceeded, USB ports
may not work.
Connects to MDC using a LAN cable. (10/100 Mbps)
2
Connects to MDC using an RS232C adapter.
3
DVI: Connects to a source device using a DVI cable or HDMI-DVI
4
cable.
MAGICINFO IN: To use MagicInfo, make sure to connect the
DP-DVI cable.
Connects to a source device using a HDMI cable or HDMI-DVI
5
cable.
Connects to a source device using a HDMI cable or HDMI-DVI
6
cable.
Connects to another product using a HDMI cable.
Connects to a PC using a DP cable.
7
Connects to another product using a HDMI cable.
8
Connect to a USB memory device.
9
* The USB ports on the product accept a maximum constant
current of 0.5A. If the maximum value is exceeded, USB ports
may not work.
Receives sound from a source device via an audio cable.
0
0
!
Outputs sound to an audio device via an audio cable.
!
Connects to an external IR cable that receives signals from the
@
remote control.
Connects to MDC using an RS232C adapter.
#
9
@
#
Solutions
Issues
There is no image
on the screen and
the power indicator
blinks every 0.5 to 1
second.
The remote control
does not work.
A beeping sound is
heard when my PC is
booting.
When I try to change
the PC resolution, a
message The defined
resolution is not
supported. appears.
Solutions
The product is in power-saving mode.
Press any key on the keyboard or move the
mouse to return to the previous screen.
Make sure that the batteries are correctly
in place (+/-).
Check if the batteries are flat.
Check for power failure.
Make sure that the power cord is
connected.
Check for any special lighting or neon signs
switched on in the vicinity.
If a beeping sound is heard when your PC is
booting, have your PC serviced.
The message The defined resolution
is not supported. appears if the input
source resolution exceeds the maximum
resolution of the display.
To resolve the issue, change the PC
resolution to a resolution supported on the
display.
