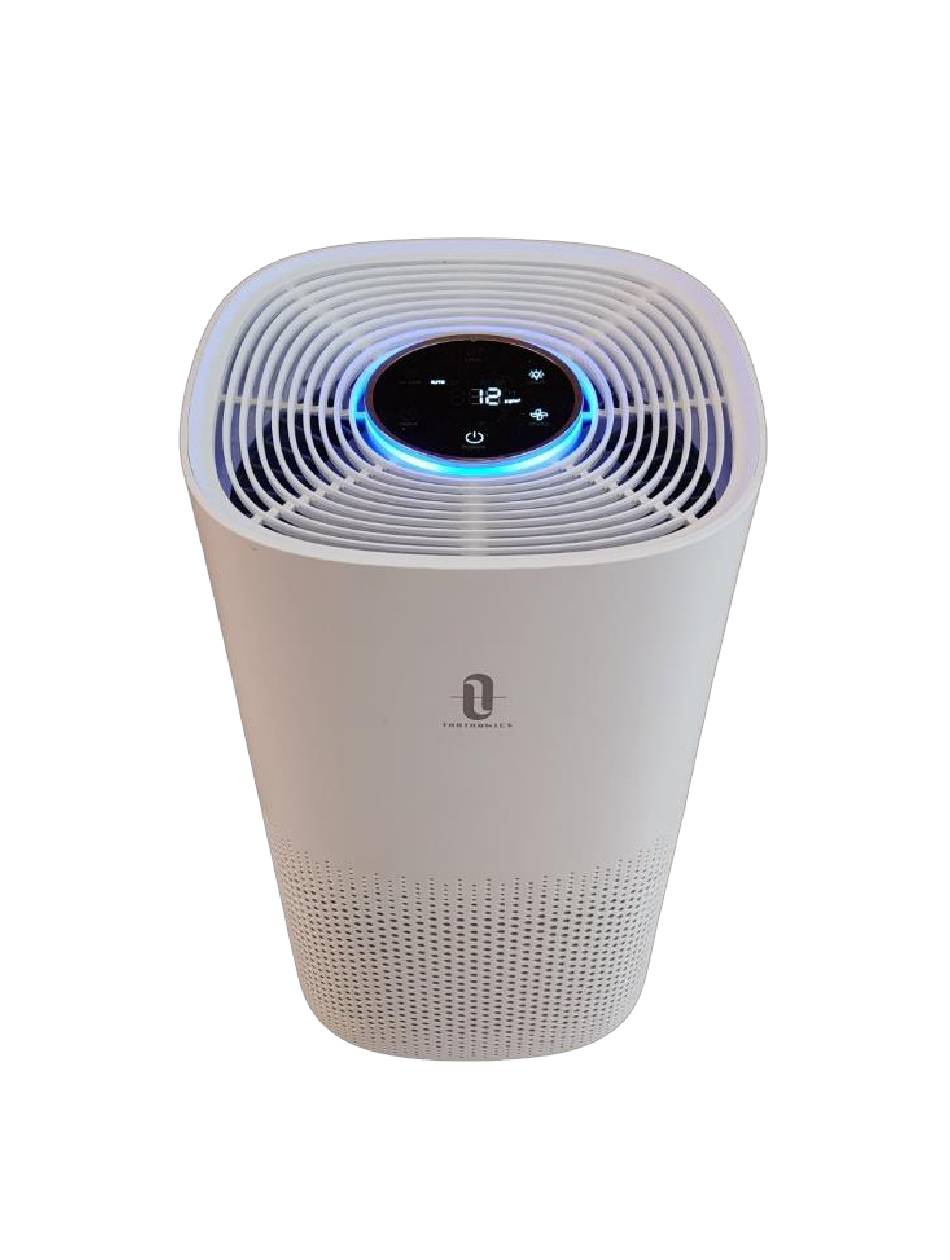

Taotronics Model AP005 Air Purifier
OWNER'S MANUAL
©2023 ACME Corp. All Rights Reserved. | v5/26/2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP005 and is the answer not in the manual?

Questions and answers

Related Manuals for TaoTronics AP005

Summary of Contents for TaoTronics AP005

  • Page 1 Taotronics Model AP005 Air Purifier OWNER’S MANUAL ©2023 ACME Corp. All Rights Reserved. | v5/26/2023...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION WARNINGS & HAZARDS TECHNICAL DESCRIPTION HEPA Filter 3-in-1 Filter Structure Control Panel Functions Specifications FILTER CLEANING & REPLACEMENT Surface Cleaning Cleaning the Pre-Filter Filter Replacement How to Remove the Filter How to Restore the Filter TROUBLESHOOTING Unit Does Not Start Excessive Noise Filter Maintenance...

  • Page 3: Introduction

    INTRODUCTION The Taotronics model AP005 Air Purifier with true HEPA filter is a household air cleaner intended to capture and sequester dust, pollens, allergens, pet dander, smoke, and other airborne particulates. The device is compact, lightweight, simple to operate, and the filter is easy to clean and replace.

  • Page 4: Warnings & Hazards

    WARNINGS & HAZARDS The Taotronics Air Purifier is intended for household use. Children or persons with impaired sensory or cognitive functions should not operate this device, or attempt to clean or maintain it, without the supervision of a responsible guardian.

  • Page 5: Technical Description

    TECHNICAL DESCRIPTION Product Component Details The Taotronics model AP005 draws air from the Air Intake Grill located around the base of the unit. The air is passed through the filters and released through the Air Outlet Grill at the top of the unit. The Air Quality Indicator uses an internal sensor to test air quality in real time and displays the results coded in colored lights around the control panel, where Blue is Excellent, Green–Good, Orange–Moderate,...

  • Page 6: Hepa Filter

    HEPA Filter TaoTronics Air Purifier ships with a True HEPA Filter included. Illustration Credit: TaoTronics 3-in-1 Filter Structure The filter is composed of three components: ● The Pre-Filter captures larger airborne particles like pet dander and hair. ● The HEPA Filter traps fine particulates as small as 0.3...

  • Page 7: Control Panel Functions

    Device functions are set using a touchscreen Control Panel located at the top of the unit. Illustration Credit: TaoTronics The child LOCK function is an ON/OFF switch that deactivates all control panel buttons to prevent unintentional changes to settings. Hold the button down for 3-seconds to enable or disable the LOCK function.

  • Page 8: Specifications

    ● CADR value: 250 m³/h ● Suitable Area: 270 ft² - 324 ft² (20 - 30 m²) Dimensions & Weight: ● 8.86L x 8.86W x 14.96H, measured in inches. ● 6.05 lb Operating Noise: ● 25-45dB (*Specifications credit: TaoTronics, Amazon product description)

  • Page 9: Filter Cleaning & Replacement

    Periodically clean the air inlet and outlet grills on the surface of the device with a dry cloth. Illustration Credit: TaoTronics Cleaning the Pre-Filter Clean the Pre-Filter with a vacuum cleaner twice monthly or when the unit becomes noisy and particulates are visible on the filter surface. (Caution: Do not wash the Pre-Filter.)

  • Page 10: How To Remove The Filter

    ←STEP 1 If the unit is already turned on, press the POWER button once to power down the device. Illustration Credit: TaoTronics STEP 2→ Turn the unit upside down. ←STEP 3 Rotate the filter cover clockwise to unlock the filter chamber.
  • Page 11 STEP 4→ Remove the filter cover. Illustration Credit: TaoTronics ←STEP 5 Gently remove the filter from the filter chamber and place it on the floor. Illustration Credit: TaoTronics STEP 6→ If cleaning the Pre-Filter, use a handheld vacuum to remove large particulates from the surface of the outer filter.

  • Page 12: How To Restore The Filter

    Insert a new or cleaned filter into the empty filter chamber. (If using a new filter, make sure all filter packaging is removed before inserting filter.) Illustration Credit: TaoTronics STEP 8→ Place the filter cover over the chamber opening. Illustration Credit: TaoTronics...
  • Page 13 Illustration Credit: TaoTronics STEP 10→ Return the unit to an upright position, plug it back into the power source, and restart the unit by pressing the power button on the control panel.

  • Page 14: Troubleshooting

    Filter Maintenance ● A flashing Filter Reset Button on the control panel is a reminder to change the filter. ● New filters can be purchased from the TaoTronics online store: www.taotronics.com. Unpleasant Odors ● For burning smells coming from inside the device, discontinue use and contact TaoTronics technical support.

  • Page 15: Glossary Of Key Terms

    GLOSSARY OF KEY TERMS AIR INTAKE GRILL - Located around the base of the unit; intakes air from the room. AIR OUTLET GRILL - Located at the top of the unit; exhausts filtered air back into the room. AIR QUALITY INDICATOR - Coded lights situated around the control panel registers air quality in real time: Blue–excellent, Green–good, Orange–moderate, Red–poor.
