AUDIOLINE PMR easy 007 - Mobile Radio Operating Instructions

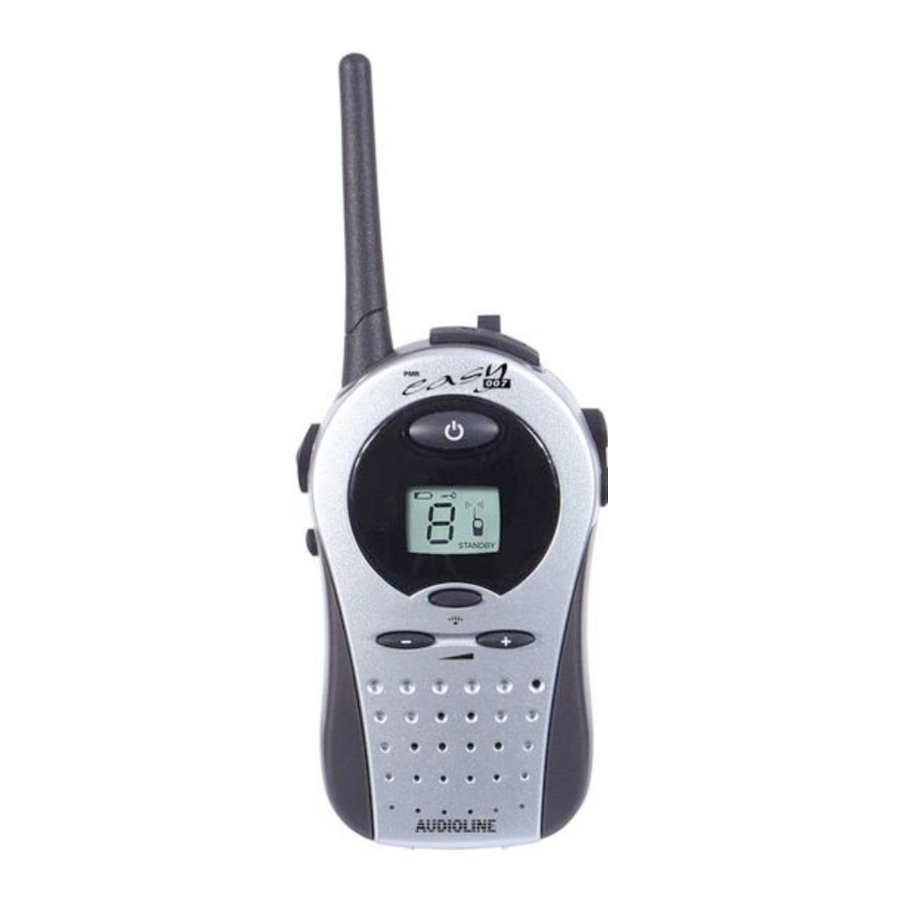

OPERATIONAL ELEMENTS

1. On / Off button
2. Channel switch CH
3. Display illumination
4. Volume louder
5. Volume softer
6. CALL button
7. TALK button
8. Microphone head- Phones connection

SAFETY INFORMATION

Operating Instructions

Please read these operating instructions carefully.

If you should have any questions, please contact our service department on the Hotline number 0180 5 00 13 88.
Under no circumstances open the unit yourself and do not try to carry out your own repairs.

For any claims under the guarantee, please refer to your dealer.

Batteries

The required batteries are not included in the scope of supply. You will need 4 type AAA 1.5 V batteries.
Please use new, high quality "alkaline" batteries.

Disposal

If the useful life of the batteries or the complete equipment has expired, please dispose of these carefully in accordance with the statutory requirements and in a manner friendly to the environment.

Never open used batteries, short circuit them or throw them into the fire.

UNPACKING

The following parts will be found in the package:

• 1 or 2 PMR easy 007
• Belt clip
• Operating instructions

PREPARATION

INSTALLING THE BATTERIES

• The required batteries are not included in the scope of supply. For each unit you will need 4 type AAA 1.5 V batteries. Please use only new, high quality alkaline batteries with at least 1,100 mAh capacity. Batteries with lower capacity will restrict the performance.
• Unfasten the battery compartment cover on the back and open the battery compartment.
• Now insert the four batteries and check that the polarity is correct. The wrong polarity can damage both the batteries and the unit.
• Close the battery compartment.

Note: When the batteries become weak and need to be replaced, the battery symbol will flash in the display.

ATTACHING THE BELT CLIP

After you have fitted the batteries, you can attach the belt clip supplied. Slide the belt clip from above onto the guide (A) until it audibly snaps into place.

To remove the belt clip again, pull gently on the upper tab (B) and slide the belt clip upwards.

OPERATION

SWITCHING ON THE PMR easy 007

To switch on the PMR easy 007 hold the button pressed until a signal tone sounds. The display will be illuminated for a few seconds and all symbols in the display will be shown. After this, the display will show the currently selected channel.

AUTOMATIC BATTERY SAVING MODE

The PMR easy 007 is equipped with a device to increase the battery life. If no transmissions take place within 10 seconds, the unit switches automatically to battery saving mode.

The STANDBY indicator flashes in the display. The battery saving mode is automatically ended as soon as you press any of the buttons.

The automatic battery saving mode does not affect the reception of incoming transmissions.

CHANNEL SELECTION

The PMR easy 007 makes use of 8 different transmission channels, which are approved by the European Committee for Radio Communications as "Private Mobile Radio", abbreviated to PMR.

In order to speak between two radio units, both units must be set to the same channel. Choose between the 8 channels by pressing the CH switch on the right-hand side up or down. The display shows the channel currently selected.

You can also make contact with other units that make use of the PMR channels and that are set to the same frequency. Please refer to the technical data for more information.

CALLING OTHER PARTIES

When you want to speak to another party proceed as follows:

• The PMR easy 007 units must be switched on and set to the same channel.
• Press the small CALL button on the left-hand side once. A call tone will ring out on the unit called for two seconds. Now wait until the called party answers.
• In order to speak yourself, press the TALK button. Hold the unit about 5 cm away from your mouth and speak at normal volume. Afterwards, release the TALK button once more. The party called will hear a signal tone when you release the TALK button. This will tell the other person that you have finished talking and are waiting for a reply.
• The volume of the incoming call signal depends on your volume settings. Eight volume levels can be set using the buttons.

Note: You will not be able to hear any incoming calls while you are pressing the TALK button. As is usual with radio equipment, only one of the two parties can speak at any one time. Therefore, always wait until you hear the signal tone before pressing the TALK button again.

RANGE OF THE AUDIOLINE PMR EASY 007

Your PMR easy 007 has a range of up to 5 km. This maximum range can be reduced by particular circumstances.

You can achieve maximum range under flat, open conditions.
The range will be reduced if there are buildings or trees in the way of the signal.
The range will be still further reduced in hilly areas.

KEYPAD LOCK

To prevent the selected channel from being inadvertently changed, you can activate the keypad lock.

For this purpose, press the volume adjustment buttons simultaneously until a signal tone sounds. The symbol will appear in the display and the channel selector, the volume buttons and the on / off switch are locked.
To remove the keypad lock once more, press the buttons again until a signal tone sounds. The symbol will disappear and the keypad will be unlocked.

Note: Each time the unit is switched on, the keypad lock is automatically deactivated.

INCREASING THE MAXIMUM RANGE

Your PMR easy 007 is equipped with a so-called AUTO-SQUELCH feature with which weak transmissions and unwanted noise are automatically suppressed during use.

This AUTO-SQUELCH can be temporarily switched off in order to increase the range.

Press and hold the button for more than five seconds until a signal tone sounds. The automatic suppression will be switched off and it will now be possible to receive even very weak signals.
To switch the AUTO-SQUELCH on again, either press the button once more or one of the channel select buttons.

DISPLAY ILLUMINATION

The display of your PMR easy 007 can be illuminated for 10 seconds by pressing the button.

EXTERNAL MICROPHONE / LOUDSPEAKER SOCKET

Your PMR easy 007 can be used with an external microphone and ear piece, a so-called headset. Your hands can thus remain free for other activities.

The two connections can be found underneath a cover on the top of the unit.

The headset is obtainable as an accessory.

IMPORTANT INFORMATION

CARE INSTRUCTIONS

If used correctly, you will get many years of enjoyment from your PMR easy 007 The surface of the case can be cleaned with a soft, dry, lint-free cloth. Never use cleaning agents, particularly aggressive solvents.

Never put the unit down in a damp or dusty place. Avoid proximity to sources of heat such as radiators and do not expose the unit to direct sunlight.

ACCESSORIES AVAILABLE

• Headset

TECHNICAL DATA

Technical data are subject to change without previous notice.

AUDIOLINE GmbH
PROMENADENSTR.
1 D-41460 NEUSS
GERMANY
