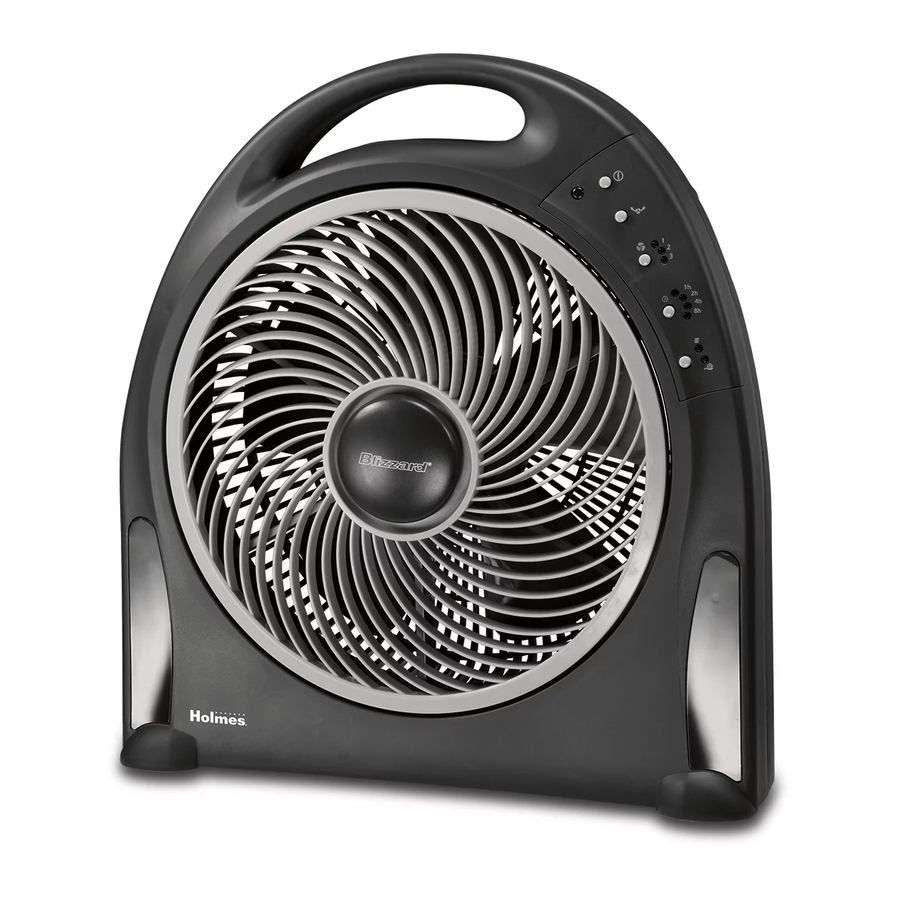

Holmes HAPF624R - Blizzard Oscillating Grill Power Fan Manual

FEATURES - OPERATIONS

OPERATING INSTRUCTIONS

1. Set the fan on a dry, level floor.
2. Plug cord into any standard 120 volt AC outlet.
3. To turn the fan on, press the On/Off button ().
4. Press the Fan Speed button () to select the desired speed setting: 1-Low 2-Medium 3-High
5. Press the Timer button () to begin the timer sequence to off setting. Continue to press until the desired time remaining is selected. The time settings cycle in durations of 1,2,4 or 8 hours and will be indicated by the appropriate LED illumination. The timer can be set up to 8 hours.
6. Press the Sleep/Breeze button (/) to randomly mimic the natural feeling of the wind.
7. Press the Oscillation button () to operate the rotating front grill. When rotating, the airflow will cover a wider area and help to circulate air throughout the room.
8. To stop the fan, press the On/OFF button ().

CLEANING / MAINTENANCE

REMOTE CONTROL

This remote control (see Fig. 2) requires 2 AAA batteries, 1.5V (not included).

Battery Replacement:

1. Remove battery cover from remote control.
2. Remove old batteries from the remote control.
3. Insert two new batteries, pressing them firmly into their slot.
4. Replace the battery cover.
5. For your convenience, a remote control holder is integrated into the back of the fan housing.

NOTE:

• Replace all batteries of a set at the same time.
• Being careful not to bend or damage the contact spring, clean the battery contacts and devices' contacts prior to installing the batteries.
• Remove the batteries from the equipment when it is not being used for an extended period of time.
• Remove the used batteries promptly.
• Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries.
• Do not discard used batteries into household trash containers. Contact your local government for disposal or recycling practices in your area.

CLEANING/MAINTENANCE INSTRUCTIONS

Follow these instructions to correctly and safely care for your fan. Please remember:

REPLACEABLE FUSE
If your (5 Amp, 125 Volt) replaceable fuse blows, please order a new fuse at 1-800-546-5637. Follow the below instructions to replace the fuse on the plug.

User Servicing Instructions

1. Unplug your fan. Grasp plug and remove from the receptacle or other outlet device. Do not unplug by pulling on cord.
2. Open fuse cover, located on the top of the plug, by using your thumb or a flathead screwdriver to slide the cover down towards the prongs.
   NOTE: Ensure that fuse cover is completely open before attempting to remove fuse.
3. Remove fuse carefully by using a small screwdriver to pry the fuse out of the compartment by the metal ends of the fuse.(see Figure 4)

4. Place plug on a solid, flat surface. Insert new 5 Amp, 125 Volt fuse into fuse compartment and use a small screwdriver to secure the metal ends of the fuse into the compartment.

   Risk of fire. Replace fuse only with 5 Amp, 125 Volt fuse.
5. Slide fuse cover closed completely. If fuse cover is difficult to close, make sure fuse is secured in place completely by pressing down on metal ends of the fuse.
6. Risk of fire. Do not replace attachment plug. Contains a safety device (fuse) that should not be removed. Discard product if the attachment plug is damaged.

FAN CLEANING

• Always unplug the fan before cleaning.
• Do not allow water to drip on or enter into fan housing.
• Be sure to use a soft cloth moistened with a mild soap solution.
• Do not use any of the following as a cleaner: gasoline, thinner, or benzene.

Clean the fan grill, housing and base with a soft, damp cloth. DO NOT ATTEMPT TO REMOVE THE FAN BLADE. Please use caution around the motor housing area. Do not allow the motor or other electrical components to be exposed to water.

FAN STORAGE

When storing your fan in the off season, it is important to keep it in a safe dry location. It is important to protect the fan head from dust. We strongly recommend using the original box from purchase.

If you have any questions regarding your product or would like to learn more about other Holmes^® products, please contact our Consumer Service Department at 1-800-546-5637 or visit our website at www.holmesproducts.com.
