- Page 1 Instruction of use IPR - EVO ® interproximal reduction evolution Universal brushless motor for: • IPR • Endo • Finishing, Polishing Feautures: • Torque sensor • Acustic alarm SWISS IPR INNOVATION...
- Page 2 UNIVERSAL USE Program Suitable for DentaSonic DiaStrip, and all automatic strip on the market today IPR Strip Endo Program Suitable for all endo file with RA shank (2,35mm contrangle) Endo File Polishing Program Suitable for all finishing, and polishing strips and discs with RA shank (2,35mm contrangle).
-
Page 3: Table Of Contents
Content Foreword 01 Introduction 02 Range of application and contraindications 03 Technical Parameter 04 Structure 05 Operation panel introduction Multitalent IPR-EVO Technical details 10 - 11 Menu instruction 06 Usage method programs 07 Cautions 08 Troubleshooting 09 Maintenance 10 Sterilization... -
Page 4: Foreword
Foreword Thanks for using the cordless endo motor. For the sake of safety and efficient using of this product, please read this manual carefully. This equipment meets the national standard: GB9706.1 M2007, medical electrical equipment Part 1 and general requirements for safety. Protection against electrical shock: class Il, type B We’ll take the responsibility for the product’s safety, reliability and property under the following conditions: 1. - Page 5 9. Use due to strong electromagnetic interference, such as close to the mobile phone, microwave oven and other portable and mobile RF communication equipment may affect the IPR-EVO performance. Caution The equipment or system shall not be used close to or stacked with other equipment.
-
Page 6: Introduction
01 Introduction Cordless endo motor is a professional equipment for root canal treatment. It converts electrical energy into mechanical energy, and then controls the rotation and transmission through the motor. It uses micro motor to achieve the purpose of expanding the root canal in the root canal treatment. Cordless hand piece delivers freedom of movement. -
Page 7: Technical Parameter
03 Technical parameter Model: IPR-EVO 1 Degree of protection against harmful Into the liquid: Common equipment (not anti-closed inlet device), Operational Mode: Continuous operation Main Unit Battery Voltage: 3. 7Vdc Battery capacity: 1050mAh Net weight: 200g Adapter Adapter voltage AC:... -
Page 8: Structure

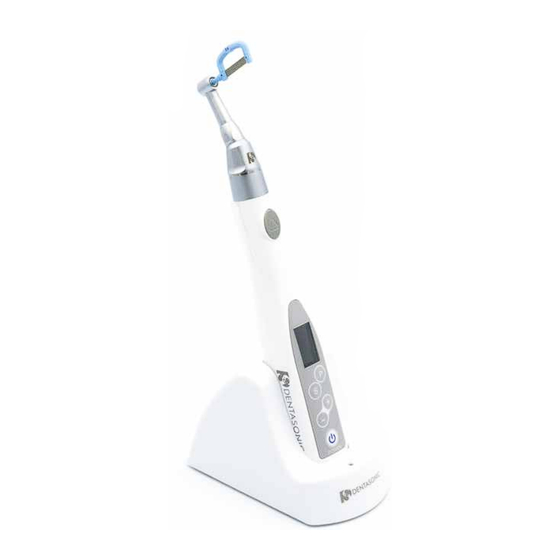

04 Structure Model: IPR-EVO 1 Structure 1. IPR Head 1.1 2. Main unit 3. Charging base 4. Adapter 5. Spray nozzle 6. LED lamp IPR Head 1.1 Spray Nozzle Main unit Adapter Charging base pic. 01... -
Page 9: Operation Panel Introduction
05 Operation panel introduction LED Light Motor switch LCD Screen program key Function key Plus Minus Power ON/OFF Charger bases pic. 02... -
Page 10: Multitalent Ipr-Evo
IPR-EVO IPR-EVO interproximal enamel reduction evolution Multitalent IPR-EVO The evolution in IPR Cordless and safe Safety functions for Endo Maximum comfort IPR-EVO is an easy-to-use The autoreverse and auto- Ergonomically shaped drive universal system that is safe and forward modes with automatic hand-piece for comfortable and effective in use. - Page 11 (Dentsply, Dentatus, Intensiv). All DiaStrip All Proxo file IPR-EVO reciprocating head 1:1. Speed, Torque, Working mode can be adjusted. Speed: 1400-5000 rpm adjustable Torque: 0.6-4.0N.cm adjustable FINISHING / POLISHING Polishers Brushes Discs RA contra-angle rotating head 1:1.
-
Page 12: Menu Instruction
POWER ON/OFF button Power ON: Press the POWER ON/OFF button more than 2 second to turn on the equipment. Power OFF: Press the POWER ON/OFF button again to turn off the equipment. Motor switch After turn on the equipment, press motor switch start to work. Press It again, the motor wlll stop. -
Page 13: Usage Method Programs
Speed,Torque,Working mode can be adjusted Program Code ： P1 P9 Speed:140-600rpm adjustable Program Code ： P1 P9 Program Code ： P1 P9 Endo Head Usage Program: P1 - P7 ram Code ： P1 P9 Torque:0.6-4.0N.cm adjustable Program Code:P1-P6 Program Code:P1-P6 Program Code:P1-P6 Program Code: P1, P6 Program Code:P1-P6... - Page 14 Speed,Torque,Working mode can be adjusted Speed:140-600rpm adjustable IPR Head Usage Program: P2 (adjustable IPR Program) Torque:0.6-4.0N.cm adjustable Program Code: P2 IPR-Low Working mode: Stop working when Program code:P8 Speed, Torque, Working mode can be adjusted. the resistance exceeds the setting torque. Speed: Speed:140-600rpm adjustable 200-300rpm adjustable...
- Page 15 Speed,Torque,Working mode can be adjusted Speed:140-600rpm adjustable Finishing Usage Program: P3 Torque:0.6-4.0N.cm adjustable Program Code: P3 Finishing, Polishing Working mode: Stop working when Speed, Torque, Working mode can be adjusted. the resistance exceeds the setting torque. Speed: 200-400rpm adjustable Torque: 0.6-2N.cm adjustable Keep running then stop when the resistance exceeds the setting torque.
- Page 16 Speed:140-600rpm adjustable Torque:----- Working code:Forward working, Program code: P8-P9 When encountering resistance, Program Code: P8 speed up and increase the resistance Program code:P8 Speed: 140-600rpm adjustable When the resistance is too large, sto Speed:140-600rpm adjustable Torque: ----- working, the torque encountered Torque:----- Working code decreases, and restart the work.
- Page 17 06 Usage method Charging 1. Connect the charging base with adapter. The charger indicator light will ON. 2. Put the main unit in the charger base, charger base is without other thing, the light is on when you put it in correct. 3.
- Page 18 Push Notice: Before loading or unloading,please turn off the motor. When loading the bur, please pull the file several times to make sure it’s fixed well before using it. Please make sure the file is clean, if dirt things get into the head, it will lead to the file vibration.
-
Page 19: Cautions
Operation Long press the POWER ON/OFF button: Motor starts work Press the Motor switch: file starts rotation Press the Motor switch again: bur stops rotation. After treatment After treatment, press the Motor switch, file stop working. Long press POWER ON/OFF button, machine turns off. -
Page 20: Troubleshooting
08 Troubleshooting If the product is found to be in abnormal operation during use, please refer to the following methods for maintenance and adjustment. Problem Reason & Solution Doesn’t work: Nopower, please charge it. Press the ON/OFF button in short time, please press the ON/OFF button more than 2 seconds. - Page 21 Contra angle head Lubricating: Twist the nozzle into the oil outlet of the spray lubricant, remove the file from the angle, as shown in Pic 12, insert the outer sheath of the angle, and spray inwardly shoot for at least 2-3 seconds, until the oil comes out of the IPR head, keep the Spray can upright.
-
Page 22: Sterilization
10 Sterilization Please sterilization only for the electrical contra angle. Autoclave Sterilization Using brush (don’t use metal thing) to remove dirt on the surface, then cleaning it by soft cloth with alcohol. The limited temperature of Autoclave sterilization is 135°C (For example, 120°C for 20 min, 132°C for 15 min). -
Page 23: After-Sale Service
13 After-sale service It’s 1 year warranty for the main unit and charging base of the cordless endo motor. After 1 year warranty, we will charge you the spare parts fee. 6 monthes warranty for the accessories, such as electrical contra angle, cover and so on. You may buy the spare parts from us if damage or use up. -
Page 24: Electromagnetic Compatibility
Attachment Guidance and manufacturer’s declaration - electromagnetic emissions. The IPR-EVO is intended for use in the electromagnetic environment specified below. The customer or the user of the IPR-EVO should assure that is used in such an environment. Emissions test Compliance... - Page 25 Guidance and manufacturer’s declaration - electromagnetic immunity IPR-EVO is intended for use in the electromagnetic environment specified below. The customer or the user of theIPR-EVO should assure that it is used in such an environment. Immunity test IEC60601 Compliance Electromagnetic environment - guidance...
- Page 26 The IPR-EVO is intended for use in the electromagnetic environment specified below. or the user of the T-FINE-II should assure that it is used in such an environment. The customer or the user of the IPR-EVO should assure that it is used in such Compliance level...
- Page 27 IPR-EVO The IPR-EVO is intended for use in an electromagnetic environment in which radia- ted RF disturbances are controlled. The customer or the user of the IPR-EVO can help prevent electromagnetic interference by maintaining a minimum distance between...
- Page 28 DS DentaSonic SA • Via Piodella 12 • CH-6933 Muzzano • Switzerland Tel. +41 91 600 19 60 • info@dentasonic.ch • www.denta-sonic.com FDA Owner Operator Number: 10051861 European representative: Quaser S.r.l., Via Aprutina 152, 62018 Potenza Picena (MC), Italy You must report us any serious incidents occurring in connection with the medical de- vice we suppied, as also to the competent authority of the member state in which you are located.
