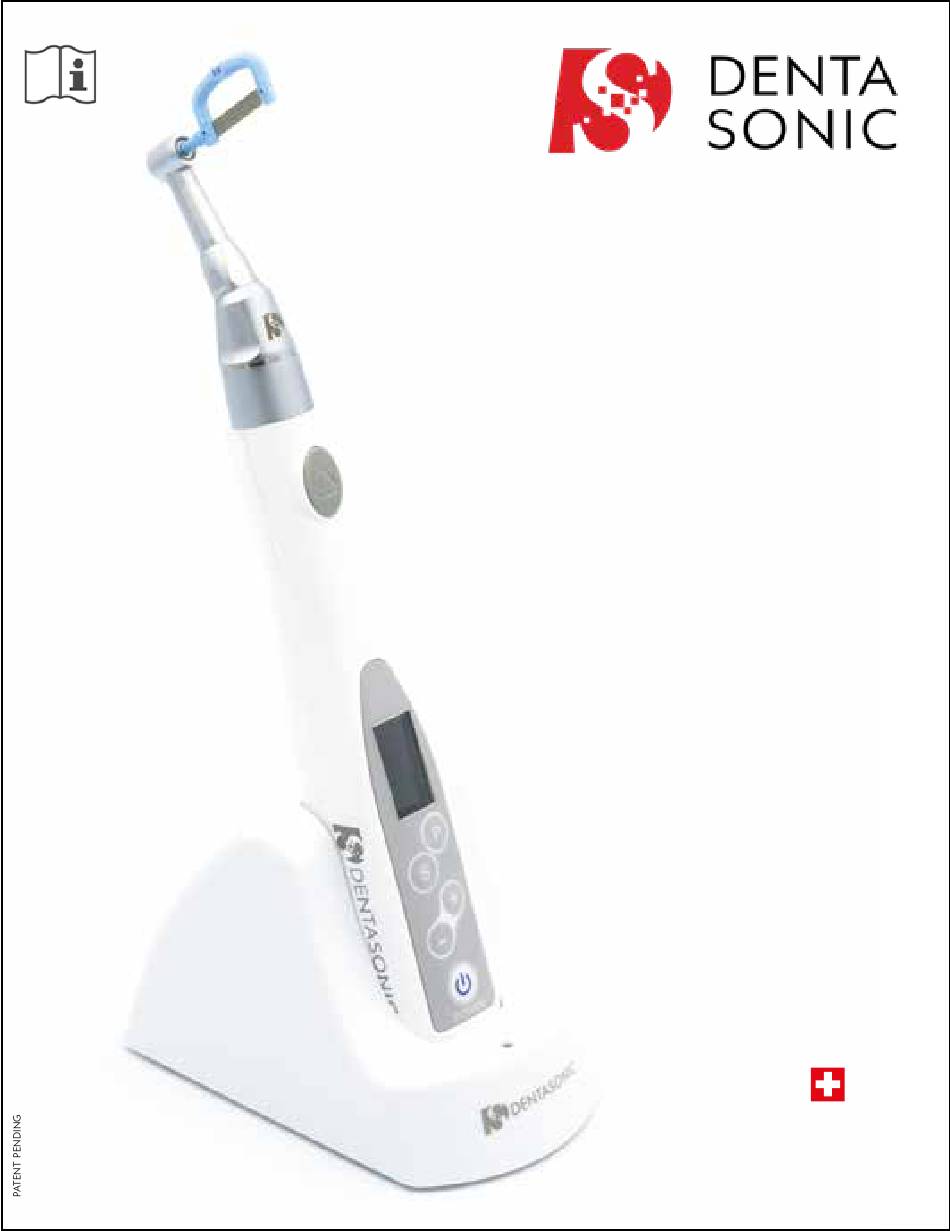

- Page 1 Short Instruction of use IPR - EVO ® interproximal reduction evolution Universal brushless motor for: • IPR • Finishing, Polishing Feautures: • Torque sensor • Acustic alarm SWISS IPR INNOVATION...
- Page 2 UNIVERSAL USE Program Suitable for DentaSonic DiaStrip, and all automatic strip on the market today Polishing Program Suitable for all finishing, and polishing strips and discs with RA shank (2,35mm contrangle).
-
Page 3: Table Of Contents
Content Foreword Notice and Caution 01 Introduction 02 IPR-EVO Multitalend 03 Technical details 04 Operation panel introduction IPR Program 05 Troubleshooting 06 Maintenance... -
Page 4: Foreword
Foreword Thanks for using the cordless endo motor. For the sake of safety and efficient using of this product, please read this manual carefully. This equipment meets the national standard: GB9706.1 M2007, medical electrical equipment Part 1 and general requirements for safety. Protection against electrical shock: class Il, type B We’ll take the responsibility for the product’s safety, reliability and property under the following conditions: 1. -
Page 5: Notice And Caution
9. Use due to strong electromagnetic interference, such as close to the mobile phone, microwave oven and other portable and mobile RF communication equipment may affect the IPR-EVO 1 performance. Caution The equipment or system shall not be used close to or stacked with other equipment. -
Page 6: Introduction
01 Introduction Cordless IPR motor is a professional equipment for interproximal treatment. It converts electrical energy into mechanical energy, and then controls the rotation and transmission through the motor. It uses micro motor to achieve the purpose of expanding the approximal enamel treatment. Cordless hand piece delivers freedom of movement. - Page 7 IPR Head 1.1 LED Light Motor switch Main unit LCD Screen program key Function key Plus Minus Power ON/OFF Charger bases Spray Nozzle Adapter /Plug...
-
Page 8: Ipr-Evo Multitalend
IPR-EVO IPR-EVO interproximal enamel reduction evolution 02 Multitalent IPR-EVO The evolution in IPR Cordless and safe Safety functions for Endo Maximum comfort IPR-EVO is an easy-to-use The autoreverse and auto- Ergonomically shaped drive universal system that is safe and forward modes with automatic hand-piece for comfortable and effective in use. - Page 9 (Dentsply, Dentatus, Intensiv). All DiaStrip All Proxo file IPR-EVO reciprocating head 1:1. Speed, Torque, Working mode can be adjusted. Speed: 1400-5000 rpm adjustable Torque: 0.6-4.0N.cm adjustable FINISHING / POLISHING Polishers Brushes Discs RA contra-angle rotating head 1:1.
-
Page 10: Operation Panel Introduction
04 Operation panel introduction POWER ON/OFF button Power ON: Press the POWER ON/OFF button more than 2 second to turn on the equipment. Power OFF: Press the POWER ON/OFF button again to turn off the equipment. Motor switch After turn on the equipment, press motor switch start to work. Press It again, the motor wlll stop. -
Page 11: Ipr Program
be adjusted Speed:140-600rpm adjustable Torque:0.6-4.0N.cm adjustable IPR Head Usage Program: P2 (adjustable IPR Program) Working mode: Stop working when Program Code: P2 IPR-Low the resistance exceeds the setting torque. Program code:P8 Speed, Torque, Working mode can be adjusted. Speed:140-600rpm adjustable Speed: 200-300rpm adjustable Keep running then stop when the... -
Page 12: Troubleshooting
05 Troubleshooting If the product is found to be in abnormal operation during use, please refer to the following methods for maintenance and adjustment. Problem Reason & Solution Doesn’t work: Nopower, please charge it. Press the ON/OFF button in short time, please press the ON/OFF button more than 2 seconds. - Page 13 Contra angle head Lubricating: Twist the nozzle into the oil outlet of the spray lubricant, remove the file from the angle, as shown in Pic 12, insert the outer sheath of the angle, and spray inwardly shoot for at least 2-3 seconds, until the oil comes out of the IPR head, keep the Spray can upright.
- Page 14 DS DentaSonic SA • Via Piodella 12 • CH-6933 Muzzano • Switzerland Tel. +41 91 600 19 60 • info@dentasonic.ch • www.denta-sonic.com FDA Owner Operator Number: 10051861 European representative: Quaser S.r.l., Via Aprutina 152, 62018 Potenza Picena (MC), Italy You must report us any serious incidents occurring in connection with the medical de- vice we suppied, as also to the competent authority of the member state in which you are located.
