Summary of Contents for bora PKA

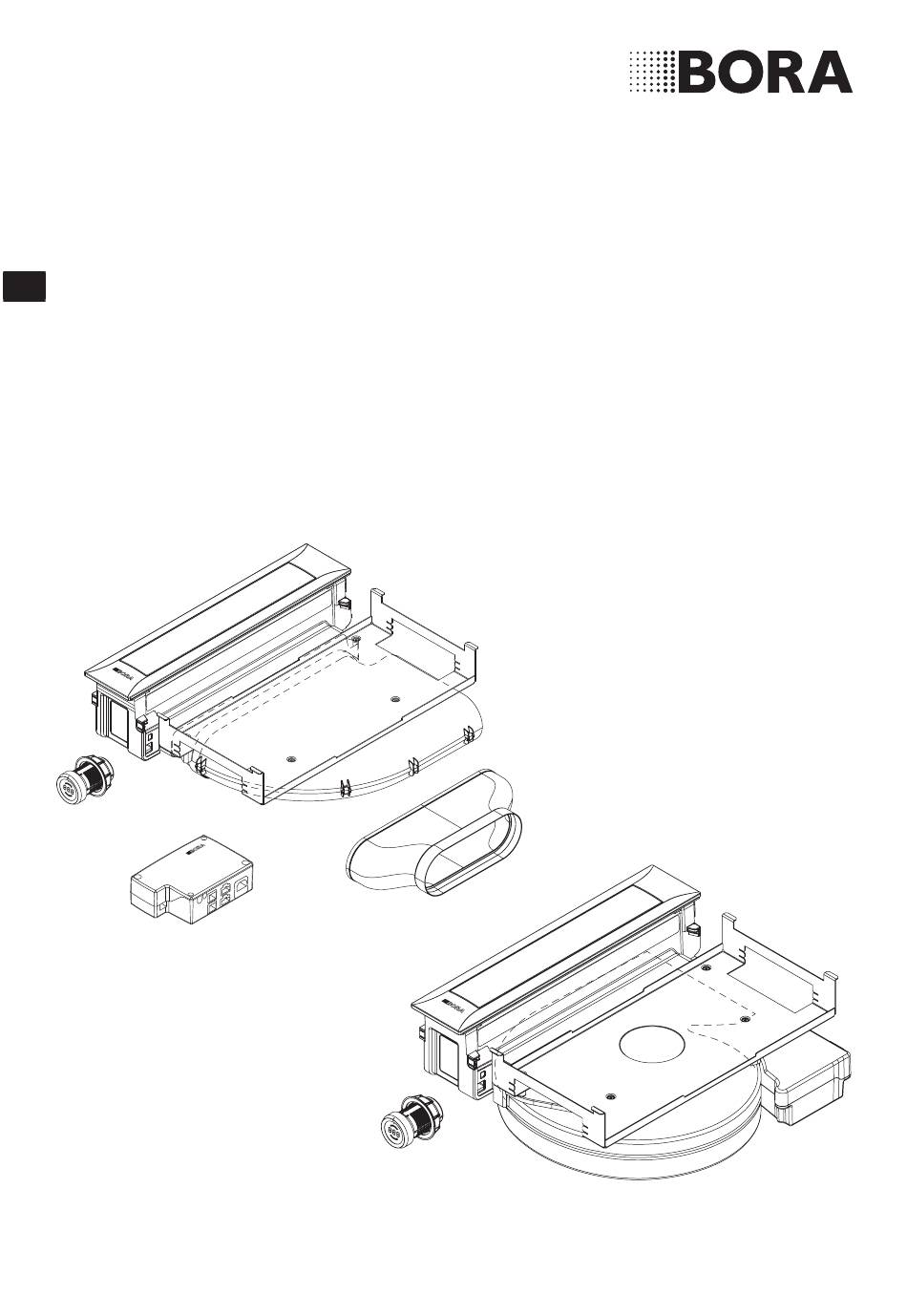

- Page 1 Operating and installation instructions PKA/PKAS, PKASAB BORA Pro cooktop extractor BORA Pro cooktop extractor system with integrated fan BORA Pro cooktop extractor system with integrated fan All Black PKA1UMEN-006 1043191 www.bora.com...
- Page 2 Please accept our apologies in this eventuality. An updated version can be requested from the BORA Service Team. Subject to printing errors and mistakes.
-
Page 3: Table Of Contents
Table of Contents General information 6.8.2 Connect the duct system to the device....26 6.8.3 Standard setup PKA ..........26 Target group ............... 4 6.8.4 Installing the additional fan ........27 Validity of the operating and installation instructions 4 Operating the cooktop extractor with a fireplace Other applicable documents ........ -
Page 4: General Information
INFO BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd and BORA Lüftungstechnik GmbH - hereinafter referred to as BORA - do not assume any liability for damage Target group arising from non-adherence to these documents... -
Page 5: Presentation Of Information
Caution Indicates a potentially hazardous situation which could lead to slight or minor injuries if ignored. — Caution Indicates a situation which could result in material damage if ignored. Tab. 1.2 Meaning of warning symbols and signal words www.bora.com... -
Page 6: Safety
Do not place any objects on the operating Only operate the integrated cooktop extractor panel or the cooktop extractor air inlet nozzle. with BORA cooktops. This particularly applies Switch off the appliance after use. to BORA gas cooktops. Keep pets away from the appliance. -
Page 7: Safety Instructions - Installation
Do not put your hands inside the A damaged appliance may put your safety at cooktop extractor while the cover risk. flap is moving. Repair and maintenance work may only be carried out by specialists authorised by the manufacturer. www.bora.com... -
Page 8: Safety Instructions - Cleaning And Maintenance
Ensure that the stated stripping lengths are adhered to. Special safety information for exhaust systems Please pay attention to the channel length between the fan and the wall sleeve in straight channel design. www.bora.com... -
Page 9: Safety Instructions - Spare Parts
INFO BORA Holding GmbH, BORA Vertriebs GmbH & Co KG, BORA APAC Pty Ltd Safety instructions – spare parts and BORA Lüftungstechnik GmbH do not assume any liability for damage WARNING! -
Page 10: Technical Data
Frequency 50/60 Hz Power consumption (including external max. 700 W Fig. 3.2 PKA Device dimensions front view BORA universal article fans) Dimensions (width x depth x height) 482 x 540 x 176 mm Dimension of control knob Ø 49 mm (diameter x depth) Ø... -
Page 11: Pkas, Pkasab
220 - 240 V Frequency 50/60 Hz Power consumption (including external max. 700 W BORA universal article fans) Power consumption of internal motor max. 170 W Dimensions (width x depth x height) 468 x 540 x 199 mm Fig. 3.7... -
Page 12: Energy Consumption Label
Energy consumption label Energy consumption label Product description Professional Professional cooktop extractor PKA cooktop extractor system PKAS, PKASAB Operating mode Exhaust air Exhaust air Energy consumption Value Value EN standard Annual energy consumption (AEC 23.4 kWh/a 32.5 kWh/a 61591 hood... -
Page 13: Device Description

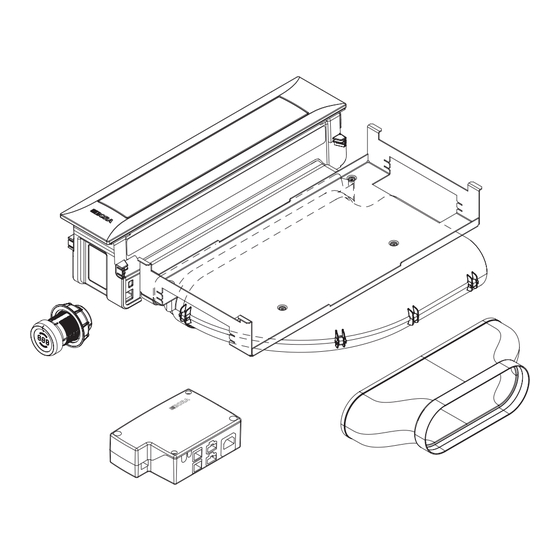

Device description Device description Type descriptions PKA = Professional cooktop extractor with separate Observe all safety and warning information during control unit and freely combinable fans operation (see the Safety section). PKAS, PKASAB = Professional cooktop extractor system with built-in control unit and built-in fans... -
Page 14: Grease Filter Components
Configuration menu Wave spring Tab. 5.1 Meaning of display Knob operation The cooktop extractor is operated using a control knob. By twisting the control knob and pressing the touch surface, the power levels and functions are controlled (see Operation section). www.bora.com... -
Page 15: Functional Principle Of The Cooktop Extractor
The grease filter sensor detects whether the grease filter is properly fitted. If the grease filter is missing or fitted incorrectly, the cooktop extractor is deactivated. INFO If the grease filter has been removed, for example for cleaning purposes, the cover flap can still be closed. www.bora.com... -
Page 16: Installation
Black, heat-resistant silicone sealant damaged. Flat screwdriver Dispose of transport packaging in the proper manner Torx screwdriver size 20 (see the Decommissioning, disassembly and disposal Torx screwdriver size 10 (PKA only) section). Scope of delivery PKA Name Quantity Operating and installation instructions... -
Page 17: Assembly Instructions
The drawers and/or shelves in the floor unit must be removable. INFO For cooktop extractor PKA used in conjunction For correct installation, the slide-in units of the with straight ducting piece PKA1FEV, flush base cabinet must be shortened depending on the mounting is also possible for worktop depths installation situation. -
Page 18: Flush Installation
Cooktops/cooktop extractor A in mm B in mm 1310 1338 1310 1681 1709 1681 Tab. 6.4 Cut-out dimensions appliance combinations surface mounting Tab. 6.3 Cut-out dimensions appliance combinations flush installation www.bora.com... -
Page 19: Installing The Cooktop Extractor
Cooktop extractor ≥700 If applicable, insert the height adjustment plates [1]. ≥74 ≥900 Fig. 6.7 PKA, PKAS and PKASAB device installation dimensions 6.5.2 Fitting the cooktop extractor Fig. 6.10 Installing the cooktop extractor Cooktop Cooktop extractor The cooktop extractor [2] must be installed 0.5 mm higher than the cooktops [1]. - Page 20 Fastening lugs (2 on each side) Marking for surface mounting INFO The symbols on the mounting clamps show which side to use for surface mounting and for flush- mounting. INFO The labels shows the cutting mark to go with the worktop thickness. www.bora.com...
-
Page 21: Duct Connection Dimensions
Installation Fig. 6.17 PKA duct connection dimensions with straight ducting piece Fig. 6.14 Tighten the mounting clamps Use a Torx 20 screwdriver to tighten the mounting clamps slightly from underneath. Verify that the alignment is correct. 6.5.4 Duct connection dimensions Fig. -
Page 22: Fitting The Control Knob
Fitting the control knob Fig. 6.21 Bore holes for 3 cooktops, 2 sockets and 2 cooktop extractors Bore holes for socket (2x external) Bore holes for control knobs (8x) Cooktop 3x Cooktop extractor (2x) Worktop Cover for the floor unit www.bora.com... -
Page 23: Pka Planning Options
Slot the knob ring [3] onto the knob casing [1] and align it to the 12 o’clock position. PKA planning options INFO With the PKA cooktop extractor, you have the option of configuring the airflow either to the left or the right to suit your requirements. -
Page 24: Airflow To Left (Installation Rotated Around 180°)
[2] with just 2 screws. 6.7.2 Airflow to left (installation rotated around 180°) INFO The PKA cooktop extractor can be fitted rotated around 180° so that the airflow is to the left. Airflow to the left with angled ducting piece Dismount the holding plate and the angled ducting piece (see Airflow straight to the side). -
Page 25: Installing The Duct System
Preparing for installation of cooktop extractor Depending on the installation situation, adjust the levelling feet on the floor unit as necessary. Prepare the plinth fan by attaching the sealing tape depending on the installation situation. Secure the sealing tape to the inlet nozzle. www.bora.com... -
Page 26: Connect The Duct System To The Device
The maximum exhaust air duct length with a fan is 6 m. The minimum cross-section of the air ducts must be 176 cm², which equates to a round pipe with a diameter of 150 mm or the BORA Ecotube duct system. For the ducting, only use stable duct elements with smooth pipe interiors. -
Page 27: Installing The Additional Fan
Ensure that a minimum clearance of 3 m is maintained between the fan units. INFO The Home In and Home Out communication Only use BORA universal fans with your BORA cooktop connections must only be connected by a extractor system. - Page 28 You must therefore be careful not to order the filter sleeve from your specialist supplier or touch the exposed contacts on the electronic unit! contact BORA via the website at www.bora.com. PKA preparation Remove the screws from the universal control unit.
-
Page 29: Establishing Communication And Power Connection
In order to connect the Home In interface, the installed The plug for the power supply must be accessible bridge must be removed. following installation. If the power supply cable has been damaged this must be replaced. www.bora.com... -
Page 30: Connecting The Control Knob
Control knob connection Home Out Control line for additional fan Mains connection cable for additional fan Power supply cable with microfuse 6.11.3 PKA connection Connecting the universal control unit and fan to the cooktop extractor Fig. 6.45 Side connections on cooktop extractor... -
Page 31: Establishing The Power Connection
Fig. 6.49 Connection plug of the plinth fan system (PKAS, PKASAB) or the mains connection cable for the universal control unit (PKA) to the power Connection plug of the plinth fan power supply cable supply. Connection plug of the plinth fan control line Put the cooktop extractor into operation Connect the plinth fan’s control line [2] to the universal... -
Page 32: Select Menu Option
You can adjust the speed of the cover flap motor under motors menu option Switchover of PWM values for for BORA Service PKA/PKAS, PKASAB fan Technicians only Setting Speed of cover flap Tab. 6.7 Menu options in the configuration menu... -
Page 33: Changing The Setting
6.13 Sealing the devices Operation with/without wall sleeve In the menu option, you can select whether the extraction system is operated with or without the BORA 3box (UEBF) wall sleeve. Setting Mode Operation with wall sleeve C 50 Operation without wall sleeve C5 1 Tab. -
Page 34: Operation
Observe all safety and warning information during operation (see the Safety section). INFO The cooktop extractor must only be operated with BORA cooktops. INFO The cooktop extractor can only be operated if the grease filter components are installed. General operating instructions The cooktop extractor is controlled using the control knob. -
Page 35: Switching Off The Cooktop Extractor
. After 10 seconds, another switching on the cooktop extractor, the service life of the acoustic signal sounds and the display goes out. The activated charcoal filter is up (for recirculation only) and childproofing feature is activated. the grease filter needs thorough cleaning. www.bora.com... - Page 36 Twist the control knob to the 12 o’clock position. Within 10 seconds, press the touch surface of the control knob for 5 seconds. The display switches to and the filter service display is reset. www.bora.com...
-
Page 37: Cleaning And Maintenance
Removing the grease filter components to cleaning. Clean the surfaces using a soft, damp cloth, detergent Cover flap or a mild window cleaning agent. Grease filter Soften dried on dirt using a damp cloth Filter tray (do not scrape it off!). www.bora.com... -
Page 38: Fitting The Cover Flap, The Grease Filter And The Filter Tray
Removing the maintenance tray Maintenance tray Locking To unlock the maintenance tray [1], twist the two locking levers [2] 90° outwards. Remove the maintenance tray [1] from the cooktop Fig. 8.4 Inserting the cover flap extractor. Exhaust opening Guided tour Cover flap www.bora.com... -
Page 39: Fitting The Maintenance Tray
Dry the touch surface and the knob housing carefully. Place the knob ring back on the knob housing. INFO If the knob ring has not been fitted correctly, a segment rotating clockwise is displayed in the central control knob display www.bora.com... -
Page 40: Replacing The Activated Charcoal Filter
INFO You can obtain activated charcoal filters from your specialist supplier or by contacting BORA via the website at www.bora.com. A description of how to replace the activated charcoal filter can be found in its operating instructions. -
Page 41: Troubleshooting
After troubleshooting, turn the knob ring to the 12 o’clock position (0 position). In all other cases, contact the BORA Service Team (see section ‘Warranty, technical service and spare parts) and enter the error number displayed and the device type. -
Page 42: Decommissioning, Disassembly And Disposal
Remove the device from the worktop by lifting it for return and recycling electrical and electronic upwards. components and other materials. Remove any other accessories. Dispose of the old device and any contaminated accessories as described under “ Environmentally- friendly disposal”. www.bora.com... -
Page 43: Warranty, Technical Service, Spare Parts, Accessories
+800 7890 0987 In order to file a warranty claim, the end customer is to notify their dealer or BORA of the fault and must present In the case of faults you cannot fix yourself, contact the receipt. Alternatively, the end customer can provide your BORA specialist supplier or the BORA Service proof of purchase by registering on www.bora.com. -
Page 44: Accessories
BORA Pro Cover flap PKA1VK BORA Pro Cover flap All Black PKA1VKAB BORA Pro Filter tray PKA1FW BORA Power supply cable Type I UNLI (AUS) BORA Power supply cable Type J UNLJ (CH) BORA Power supply cable Type G UNLG (GB-IE) -
Page 45: Notes
Notes: 12 Notes: www.bora.com... - Page 46 Notes: www.bora.com...
- Page 48 F +49 (0) 8035 / 9840-300 F +43 (0) 5373 / 62250-90 info@bora.com mail@bora.com www.bora.com www.bora.com Austria: Australia - New Zealand: BORA Vertriebs GmbH & Co KG BORA APAC Pty Ltd Innstraße 1 100 Victoria Road 6342 Niederndorf Drummoyne NSW 2047 Austria Australia...
