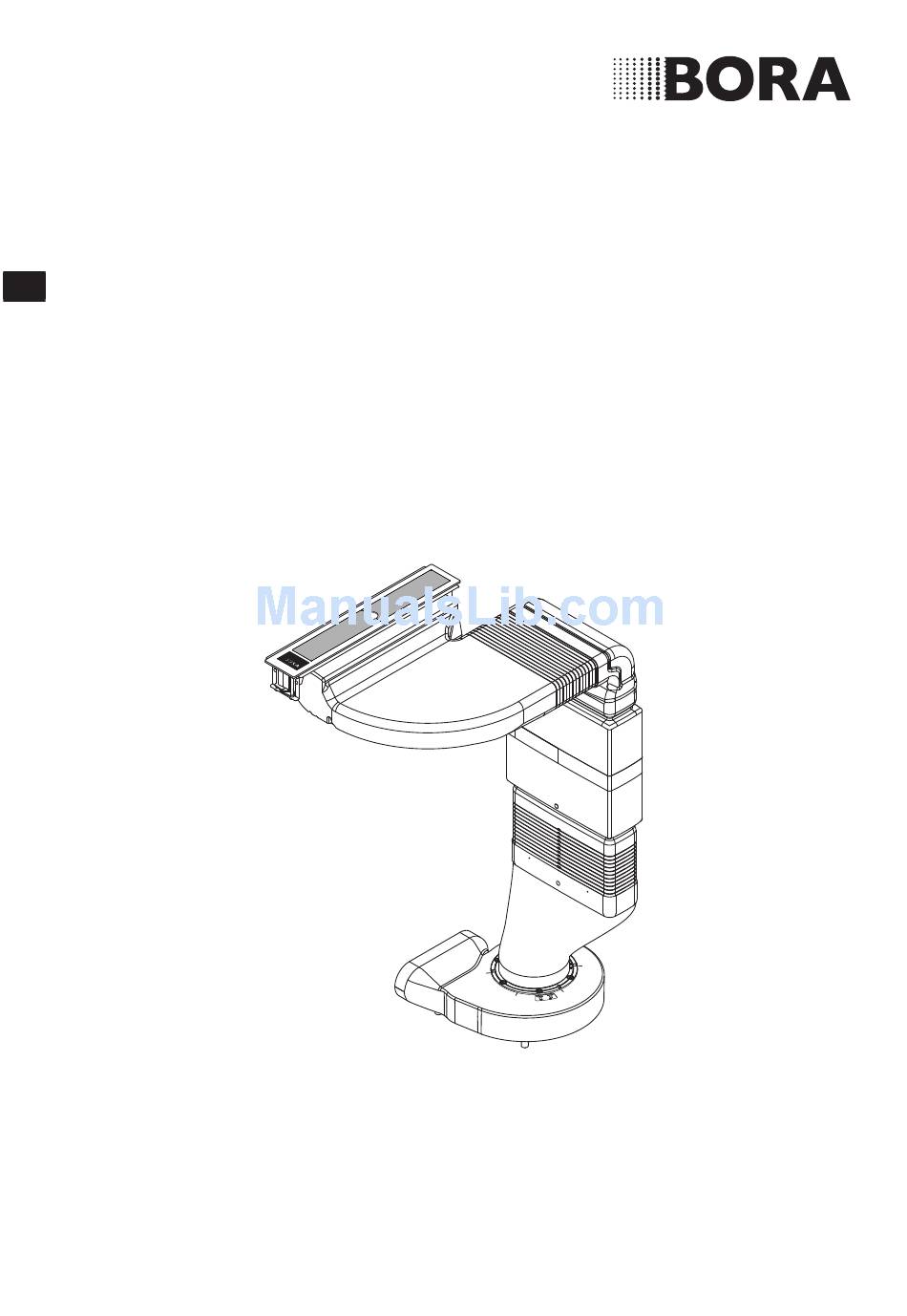

- Page 1 Operating and installation instructions CKASE Cooktop extractor system CKASEUMEN-002 M8800305-000 www.bora.com...
- Page 2 Austria Contact T +43 (0) 5373/62250-0 mail@bora.com www.bora.com The distribution and duplication of this document, as well as the use and disclosure of its contents are prohibited unless expressly authorised. © BORA Vertriebs GmbH & Co KG All rights reserved.
-
Page 3: Table Of Contents
Removing the cover plates and the stainless steel grease filter ..........26 8.2.2 Cleaning the cover plates and the stainless steel grease filter ..........26 8.2.3 Installing the cover plates and stainless steel grease filter ............27 Replacing the activated charcoal filter ....27 www.bora.com... -
Page 4: General
INFO BORA Holding GmbH, BORA Vertriebs must be taken into account. GmbH & Co KG, BORA APAC Pty Ltd and BORA Safety and warning instructions Lüftungstechnik GmbH - hereinafter referred to as BORA - shall not assume any liability for... - Page 5 Caution Indicates a possible hazardous situation which can cause minor injury if not respected. — Caution Indicates a situation which can cause minor injury if not respected. Tab. 1.2 Meaning of the warning symbols and signal words www.bora.com...
-
Page 6: Safety
Turn the device off after use. Keep pets away from the device. Recirculated air mode INFO Every time the device is used for cooking, supplementary moisture is released into the room air. www.bora.com... -
Page 7: Safety Instructions, Assembly
Use technical safety measures Do not store any objects or paper (e.g. window contact switch, low on the cooktop extractor. pressure warning device) and have them approved by a qualified expert (certified chimney-sweep). www.bora.com... -
Page 8: Safety Instructions, Disassembly And Disposal
Disconnecting the device incorrectly from the mains poses a risk of electric shock. Safely disconnect the device from the mains using miniature or auto- matic circuit breakers, fuses or contactors. Use a suitable measuring device to ensure that the device is de-energised. www.bora.com... - Page 9 BORA shall not assume any liability for damages caused by improper use or incorrect operation. All misuse is prohibited!
-
Page 10: Technical Data
Duct system Total height adjustable from - to 900 - 1050 mm Total depth adjustable from - to 560 - 710 mm Tab. 3.1 Technical data Device dimensions 560 - 710 >140 900 - 1050 Abb. 3.1 Device dimensions www.bora.com... -
Page 11: Energy Label
Energy label Energy label Product description Classic cooktop extractor system with ULS plinth fan CKASE Operating mode Exhaust air Energy consumption Value EN standard Annual energy consumption (AEC 24 kWh/a 61591 hood Energy efficiency class 61591 Flow volume Fluid dynamic efficiency (FDE 38.4... -
Page 12: Device Description
(see the Cleaning and maintenance section). INFO In recirculation mode, ensure sufficient ventilation and aeration to discharge humidity. Abb. 5.2 Touchscreen operating panel with fan display Minus button Fan display Plus button www.bora.com... -
Page 13: Functional Principle Of The Cooktop Extractor
The Home-In contact can be used for the incoming signal from external switch devices (e.g. window contact switch). The Home-Out contact can be used to control external installations. 5.3.5 Safety shut-down The cooktop extractor switches off automatically if no buttons are pressed for 120 minutes. www.bora.com... -
Page 14: Installation
Make sure that the cutting surfaces of the worktops If there are any missing or damaged parts, please are properly sealed. notify BORA After Sales Service. Comply with the worktop manufacturer’s instructions. Do not under any circumstances install parts which are damaged. - Page 15 Installation Flush installation Abb. 6.5 Surface mounting cut-out Cut-out dimensions when installing cooktops only or cook- tops and the BORA cooktop extractor alongside each other: Cooktops/cooktop extractor A in mm B in mm Abb. 6.2 Flush installation 1026 1002 1208...
-
Page 16: Installing The Extraction System
The drawers and/or shelves in the floor unit must be Abb. 6.10 Offset with transition pieces removable for maintenance and cleaning purposes. There must be a return flow aperture of > 500 cm² in the plinth area for recirculation. Abb. 6.11 Control unit installation dimensions www.bora.com... -
Page 17: Installing The Cooktop Extractor
Abb. 6.13 Preparing the cooktop extractor frame Cooktop extractor frame Left hand side rail Use a pair of pliers to remove the rail from the left hand side of the cooktop extractor frame by carefully bending it up and down. www.bora.com... -
Page 18: Preparing To Install The Substructure Module, Silence Module And Plinth Fan
Depending on the installation situation, adjust the levelling feet on the floor unit as necessary. Now adapt the substructure module to the available depth of the worktop by shortening the substructure module at the cut marks using a fine saw. www.bora.com... -
Page 19: Installation - Standard Set-Up
[4]. Insert the protective grid [7] into the upper opening on the silence module [3]. Abb. 6.21 Sealing tape position for installation with a transition Push the substructure module [2] into the silence piece (shallow duct) module [3]. www.bora.com... - Page 20 Ensure that a minimum clearance of 300 cm is maintained between the fan units. Connect the substructure module [2] to the cooktop Only use BORA universal fans with your BORA cooktop extractor frame [1] by carefully pressing the extractor system.
-
Page 21: Establishing The Power Connection And Communication
Check the plug and the socket for damage. Fan 1 power supply cable Do not use damaged components. Fan 2 power supply cable Contact your BORA specialist supplier to replace any Power supply cable with microfuse damaged components. Connecting an additional fan Connect the fan’s control line [1] to the control unit... - Page 22 Lift up the cover. Use the order code UFH (universal filter sleeve) to order the filter sleeve from your specialist supplier or contact BORA via the website at www.bora.com. Abb. 6.30 Wrap the connection cable around the ferrite sleeve three times Wrap the connection cable around the ferrite sleeve three times to create the desired filter performance.
-
Page 23: Handover To User
Explain all safety-related aspects of operation and handling to the user. INFO The Home In contact must be bridged if this is Provide the user with the accessories and operating not used (bridged on delivery). and installation instructions for safe storage. www.bora.com... -
Page 24: Operation
You can the cooktop extractor will switch off automatically after obtain these from your specialist supplier or by about 10 seconds. contacting BORA via the website Switching off www.bora.com. Use your finger to press the button to switch off the cooktop extractor. -
Page 25: Pay Attention To The Filter Service Display
The filter service display has been reset. The filter service display can only be reset if a filter service is due after 200 operating hours. 7.2.1 Closing the cover plates After switching off the cooktop extractor, close it with the two cover plates. www.bora.com... -
Page 26: Cleaning And Maintenance
Clean the surfaces using a soft, damp cloth, Clean the cover plates and stainless steel grease filter detergent or a mild window cleaning agent. with a soft brush. Rinse the components thoroughly after cleaning. www.bora.com... -
Page 27: Installing The Cover Plates And Stainless Steel Grease Filter
INFO You can obtain activated charcoal filters from your specialist supplier or by contacting BORA via the website at www.bora.com. A description of how to replace the activated charcoal filter can be found in its operating instructions. -
Page 28: Troubleshooting
(e.g. cleaning cloth). The fan is defective or a duct Call the BORA Service Team. connection has become loose. Tab. 9.1 Resolving a fault In all other instances, call the BORA Service Team (see the Warranty, service and spare parts chapter). www.bora.com... -
Page 29: Decommissioning, Disassembly And Disposal
Remove the device from the worktop upwards. parts and other materials. Remove further accessory parts. Remove the old appliance and dirty accessory as described under “Disposing of the product in an environmentally friendly way”. www.bora.com... -
Page 30: Warranty, Service And Spare Parts Warranty
11.3 Spare parts Only use original spare parts when making repairs. INFO Spare parts can be obtained from your BORA dealer, the BORA online service website at www.bora.com/service or by calling the service number provided. -
Page 31: Notes
Notes: 12 Notes: www.bora.com... - Page 32 F +49 (0) 8035 / 907-249 F +61 2 8076 3514 info@bora.com info@boraapac.com.au www.bora.com www.boraapac.com.au Austria: BORA Vertriebs GmbH & Co KG Prof.-Dr.-Anton-Kathrein-Straße 3 6342 Niederndorf Österreich T +43 (0) 5373 / 62250-0 F +43 (0) 5373 / 62250-90 mail@bora.com www.bora.com...
