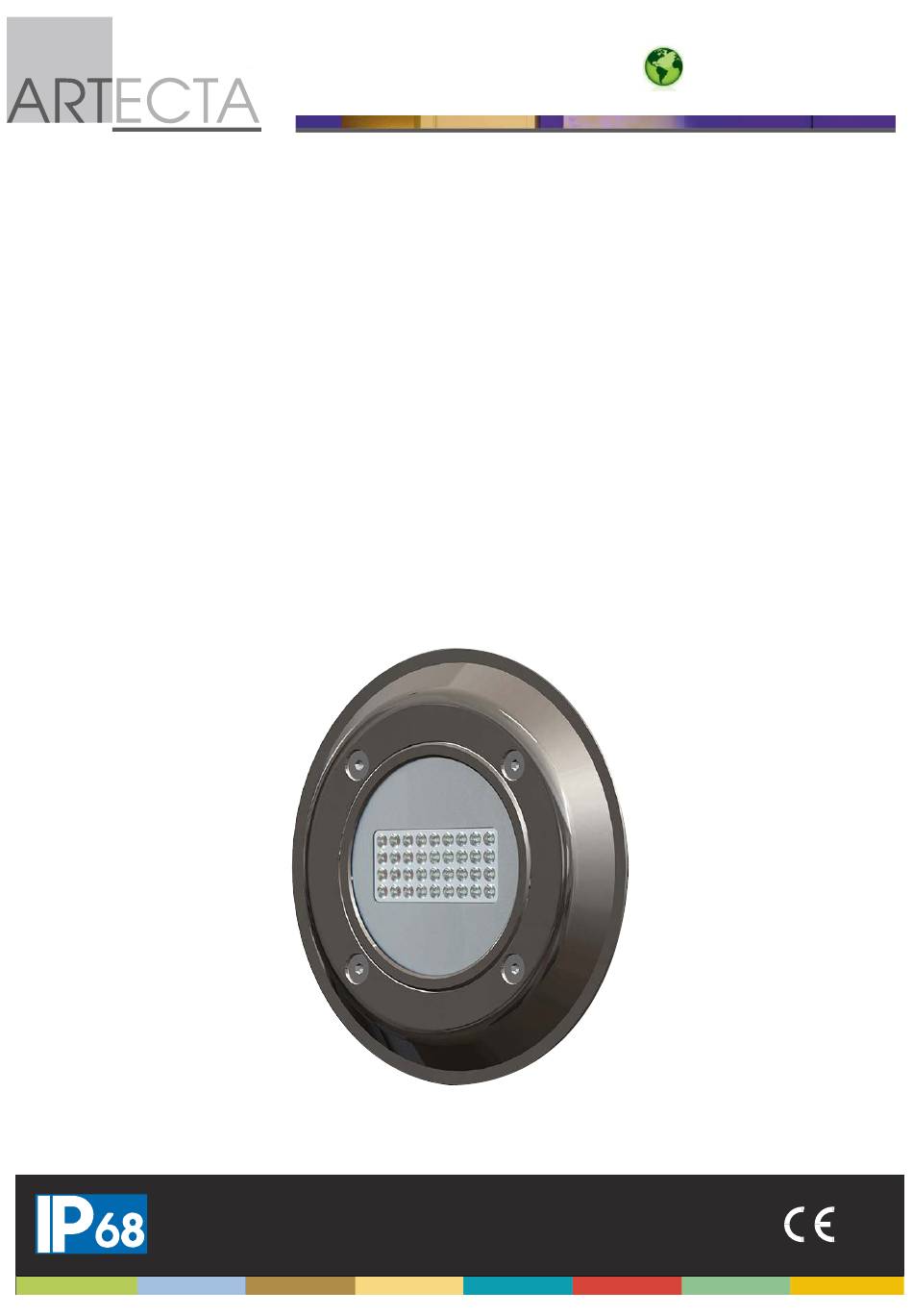

- Page 1 RT OF IGHTING A0620175 Meteor-175W Underwater Pool Light Operating Instructions Underwater Pool Light UNDERWATER RATED...
- Page 2 CONTENTS Preface............................... 3 Features ..............................3 Precautions ..............................3 Components and Connectors ........................4 Installation ..............................5 Controls............................... 7 Appearance..............................8 Technical Specifications..........................8 PREFACE The METEOR 175W, compact ultra-thin underwater pool light with built-in driver is designed to use the latest LED lighting technology.
- Page 3 APPEARANCE FEATURES Innovative DesignS Stainless Steel Ultra-Thin Casing 36 Power LEDs Design Warm-white Lighting High Grade Polycarbonate Glass Optical Window Vacuum Metalized Reflector Remote Control Digital Dimming Polarity Protection Transient Protection ...
- Page 4 INSTALLATION The underwater light kit consists of the following components: Underwater Light METEOR 175W 4 x fixing screw 5.5x38 with wallplugs Operating Instructions The METEOR 120 has to be installed on a flat surface on the pool wall under water line. Do not try to install the underwater pool light while the pool is filled with water.
- Page 5 Earthing The underwater pool light has to be earthed by using a pre-tinned green wire with a yellow stripe a minimum of 8 AWG (8.36 mm ). The wire has to be connected to the underwater pool light by the help of one fixing screw 5.5x38.
- Page 6 Stainless steel (316L) Protection: IP68 Dimensions: Ø176 x 17 mm Weight: 2.3 kg Highlite international BV Vestastraat 2 NL 6468 EX Kerkrade The Netherlands ARTECTA Division Phone: +31-(0)45-5667734 Fax: +31-(0)45-5667709 E-Mail: artecta@highlite.nl Design and specifications subject to change without notice.
