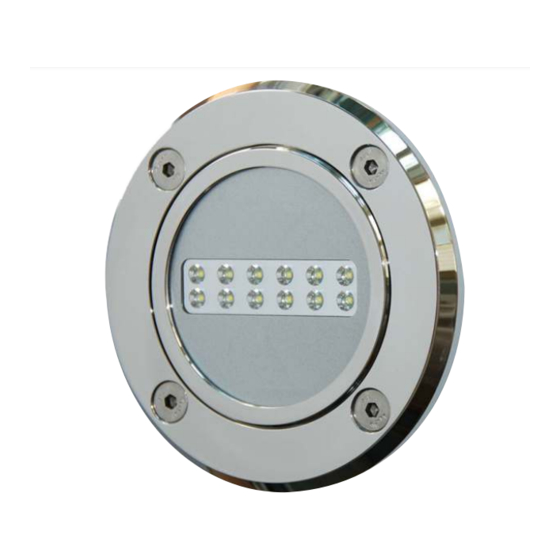

- Page 1 RT OF IGHTING A0620125 Meteor-120RGB Underwater Pool Light Operating Instructions Underwater Pool Light UNDERWATER RATED...
-
Page 2: Table Of Contents
CONTENTS Preface............................... 2 Precautions ..............................2 Features ..............................3 Components and Connectors ........................3 Installation ..............................4 Controls............................... 5 Appearance..............................6 Technical Specifications..........................6 Declaration of conformaty..........................7 PREFACE The METEOR 120-RGB series of a compact ultra-thin underwater pool light with built-in driver is designed to use the latest LED lighting technology. -
Page 3: Features
APPEARANCE FEATURES Innovative DesignS tainless Steel Ultra-Thin Casing 12 Power LEDs Design White, Red, Blue, Green or Multi-Color RGB Lighting High Grade Polycarbonate Glass Optical Window Vacuum Metalized Reflector Remote Control Digital Dimming ... -
Page 4: Installation
INSTALLATION The underwater light kit consists of the following components: Underwater Light METEOR 120-RGB 4 x fixing screw 5.5x38 with wallplugs Operating Instructions The METEOR 120 has to be installed on a flat surface on the pool wall under water line. Do not try to install the underwater pool light while the pool is filled with water. -
Page 5: Controls
Earthing The underwater pool light has to be earthed by using a pre-tinned green wire with a yellow stripe a minimum of 8 AWG (8.36 mm ). The wire has to be connected to the underwater pool light by the help of one fixing screw 5.5x38. -
Page 6: Appearance
Stainless steel (316L) Protection: IP68 Dimensions: Ø119 x 9 mm Weight: 0.6 kg Highlite international BV Vestastraat 2 NL 6468 EX Kerkrade The Netherlands ARTECTA Division Phone: +31-(0)45-5667734 Fax: +31-(0)45-5667709 E-Mail: artecta@highlite.nl Design and specifications subject to change without notice. -
Page 7: Declaration Of Conformaty
6468EX Kerkrade The Netherlands Product Details Product Name Meteor-120 RGB Ordercode A0620125 Trade Name Artecta Applicable Standards Details 1 EMC Di 1. EMC Directives : 2004/108/EC 2004/108/EC EN 55015: 2006+A1: 2007 EN 61547: 1995+A1: 2000+A2: 2009 EN 61547: 2009 2. Low Voltage Directives : 2006/95/EC...
