Canon PIXMA MG7120 Installing

Hide thumbs Also See for PIXMA MG7120:

Advertisement

Quick Links

Download this manual
Installing Your Multifunction
to Your Network for the First Time

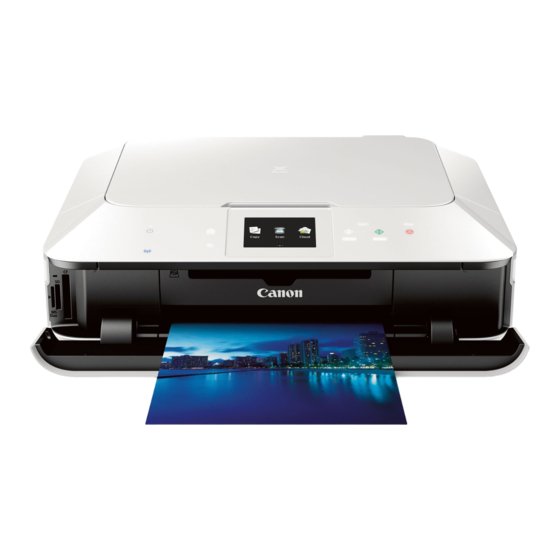

PIXMA MG7120
Windows OS
1

Advertisement

loading

Related Manuals for Canon PIXMA MG7120

Summary of Contents for Canon PIXMA MG7120

  • Page 1 Installing Your Multifunction to Your Network for the First Time PIXMA MG7120 Windows OS...
  • Page 2 Installing Your Multifunction to Your Network for the First Time PIXMA MG7120 Windows OS Preparing to Connect My Multifunction to My Network Network Requirements Notes on Wireless Connection Installing the Drivers & Software...

  • Page 3: Network Requirements

    Preparing to Connect the Multifunction To the Network Network Requirements Before connecting the machine to the network, make sure that configuration of the computer and access point or router is complete, and that the computer is connected to the network. Wireless Connection Before connecting the machine to the network, the computer needs to be connected to the network.
  • Page 4 Preparing to Connect the Multifunction To the Network An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without using an access point, is not supported. Notes on Network Connection • The configuration, router functions, setup procedures and security settings of the network device vary depending on your system environment.

  • Page 5: Software Installation

    Setup CD-ROM during restarting. The installation resumes once your computer has restarted. • If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access the network. If such a warning message appears, set the security software to always allow access.
  • Page 6 Installing the Drivers & Software To set up the PIXMA MG7120 to your wireless network, you must first install the software to your computer. To begin the setup procedure, insert the Setup CD-ROM into your computer.* The setup program will start automatically. The setup instructions presented in this document describe the “Cableless Setup” method which does not require the need to know the SSID (network name), or network passphrase and does not require the printer to be temporarily connected to the computer with a USB cable.
  • Page 7 Installing the Drivers & Software Click Next on the initial screen...
  • Page 8 Installing the Drivers & Software On the Connection Method Selection screen (1-1) select Network Connection, then select Wireless Connection on screen (1-2).
  • Page 9 Installing the Drivers & Software Continue to follow on-screen instructions. Select Connect to the network on the Printer Setup (2-1) screen.
  • Page 10 Installing the Drivers & Software Continue to follow on-screen instructions. If the HOME button is lit, touch the HOME button and click Next. Then, flick the screen left or right and tap the WLAN icon. Then tap Wireless LAN setup. Click Next. 10 10...
  • Page 11 Installing the Drivers & Software If your printer’s display is the same as When the display changes to B example A, tap To other connection or was B to begin with, tap methods. The display will then Other setup change to the display example B. 11 11...
  • Page 12 Installing the Drivers & Software Click Other Methods on the Setup Procedure Selection screen (3-1). 12 12...
  • Page 13 Installing the Drivers & Software On the Setup Procedure Selection screens (3-1) and (3-2), click Other setup on step (3-2) then Cableless setup on (3-3) . 13 13...
  • Page 14 Installing the Drivers & Software On the printer’s touch-screen, tap Other setup then tap Cableless setup. Click Next on the on-screen instructions after each selection. 14 14...
  • Page 15 Installing the Drivers & Software Tap OK on your printer’s touch-screen. Click Next on the Connection via Cableless setup screen (4-3) 15 15...
  • Page 16 Installing the Drivers & Software Continue following on-screen instructions. On the Software Installation List, select *software to install and click Next. *MP Drivers is required and cannot be deselected. We recommend installing My Image Garden and Quick Menu to take full advantage of the printer’s features.
  • Page 17 Installing the Drivers & Software Continue following on-screen instructions. When the Setup Completion dialog box appears, click Complete. At this point, setup of the printer and network is complete. Continue to follow any remaining on-screen instructions to finish and exit the setup program.
