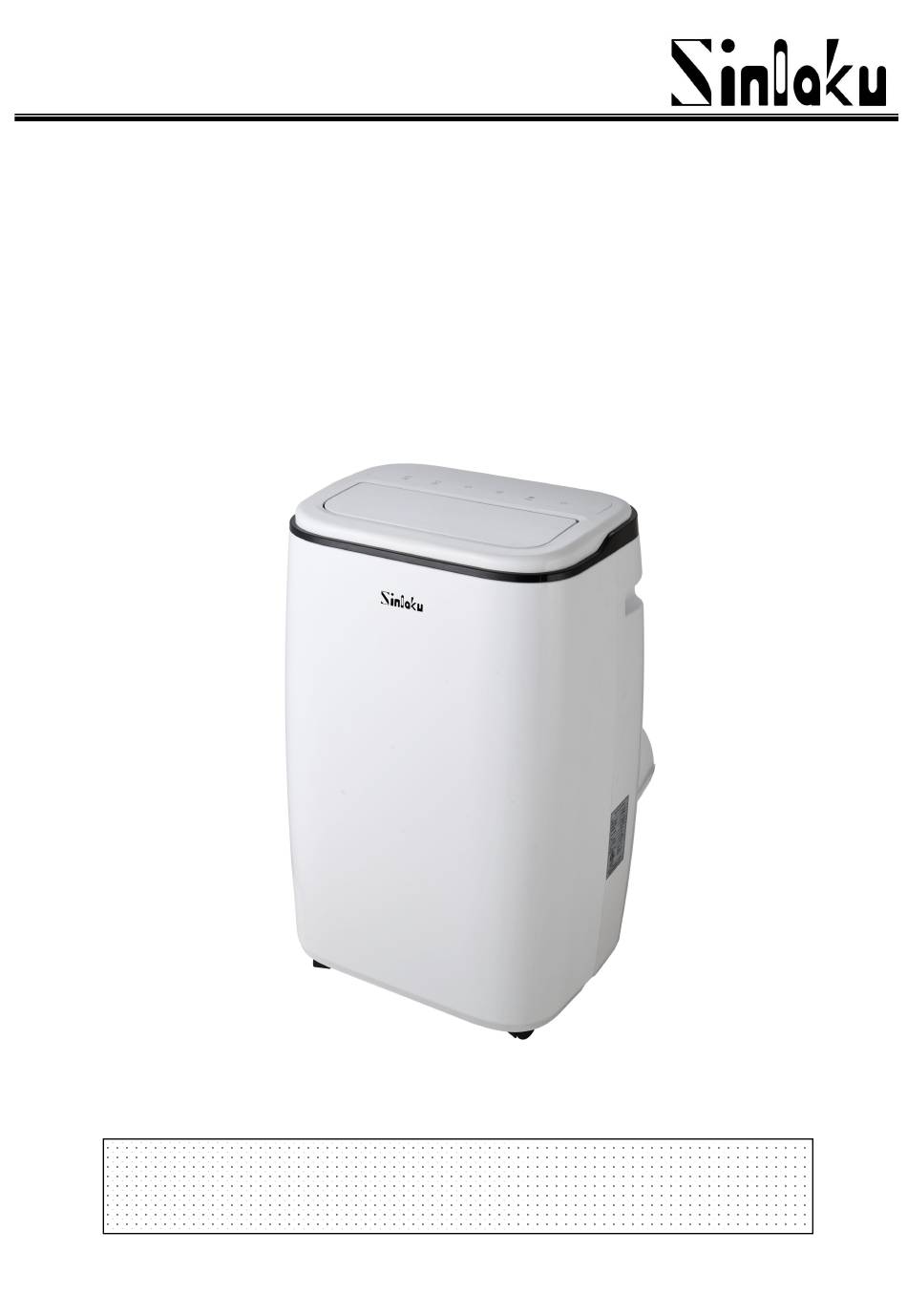

- Page 1 Portable Air-conditioner User’s Manual(R32) For Model : SLK-KY018-14KC/E SLK-KY18-14KC/E-N Thank you for using our product, Please read this user’s manual carefully to ensure proper use, maintenance and installation...
-
Page 2: Table Of Contents
Contents 1. Safety Awareness......................1 2. Name of Parts......................13 3. Accessories........................14 4. Appearance and Function of Control Panel............15 5. Appearance and Function of Remote Control............. 16 6. Operation Introduction..................... 17 7. Installation Explanations..................20 8. Maintenance Explanations..................25 9. Troubleshooting......................26... -
Page 3: Safety Awareness
1. Safety Awareness 1. Safety Awareness VERY IMPORTANT! Please do not install or use your portable air conditioner before you have carefully read this manual. Please keep this instruction manual for an eventual product warranty and for future reference. Warning Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. - Page 4 not puncture any part of the refrigerant circuit. If the appliance is installed, operated or stored in an unventilated area, the room must be designed to prevent to the accumulation of refrigerant leaks resulting in a risk of fire or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.
- Page 5 4. Never insert your fingers, rods into the air outlet. Take special care to warn children of these dangers. 5. Keep the unit upward while transport and storage, for the compressor locates properly. 6. Before cleaning the air-conditioner, always turn off or disconnect the power supply. 7.
- Page 6 used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. 16. Contact authorized service technician for repair or maintenance of this unit. 17. Do not pull deform. or modify the power supply cord, or immerse it in water. Pulling or misuse of the power supply cord can result in damage to the unit and cause electrical shock.
- Page 7 INSTRUCTIONS FOR REPAIRING APPLIANCES CONTAINING R32 1 GENERAL INSTRUCTIONS 1.1 Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to con-ducting work on the system.
- Page 8 the ventilation machinery and outlets are operating adequately and are not obstructed; if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;...
- Page 9 3 REPAIR TO INTRINSICALLY SAFE COMPONENTS Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere.
- Page 10 d) purge with inert gas (optional for A2L); e) open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders if venting is not allowed by local and national codes. For appliances containing flammable refrigerants, the system shall be purged with oxygen-free nitrogen to render the appliance safe for flammable refrigerants.
- Page 11 i) Do not exceed the maximum working pressure of the cylinder, even temporarily. j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
- Page 12 The achieved competence should be documented by a certificate. Training The training should include the substance of the following: Information about the explosion potential of flammable refrigerants to show that flammables may be dangerous when handled without care. Information about potential ignition sources, especially those that are not obvious, such as lighters, light switches, vacuum cleaners, electric heaters.
- Page 13 refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building; – Purge the refrigerant circuit with oxygen free nitrogen; – Evacuate the refrigerant circuit; –...
- Page 14 applicable transport regulations. Marking of equipment using signs Signs for similar appliances used in a work area generally are addressed by local regulations and give the minimum requirements for the provision of safety and/or health signs for a work location. All required signs are to be maintained and employers should ensure that employees receive suitable and sufficient instruction and training on the meaning of appropriate safety signs and the actions that need to be taken in connection with these signs.
-
Page 15: Name Of Parts
2. Name of Parts 2. Name of Parts Fig.1 Louver Drainage outlet Control panel Air outlet Front panel Power cord Castor Drainage outlet Air inlet... -
Page 16: Accessories
3. Accessories 3. Accessories Part Description Quantity Exhaust hose Housing adaptor Window Connector Remote Controller Window Kit Dowel Water pipe Instruction Manual After unpacking, please check whether the above-mentioned accessories are included, and check their purposes in the installation introduction in this manual. -
Page 17: Appearance And Function Of Control Panel
4. Appearance and Function of Control Panel 4. Appearance and Function of Control Panel Cooling only model Power on/off Dehumidifying Fan speed Temperature up Auto swing Temperature down High fan speed Operation mode Medium fan speed Timer on/off Low fan speed Water full Sleep mode Cooling... -
Page 18: Appearance And Function Of Remote Control
5. Appearance and Function of Remote Control 5. Appearance and Function of Remote Control Remote Control Power on/off Timer on/off Operation MODE °C / °F selector Temperature up Temperature down LED display Auto swing Fan speed Sleep mode Receiver signal Cooling Dehumidifying Auto swing... -
Page 19: Operation Introduction
6. Operation Introduction 6. Operation Introduction Before starting operations in this section: 1) Find a place where there is power supply nearby. 2) As shown in Fig.5 and Fig.5a, install the exhaust hose, and adjust the window position well. Fig.5 Fig.5a 3) As shown in Fig. - Page 20 6.1. Before using Notice: Operation temperature range: Maximum cooling Minimum cooling DB/WB(°F) 95/75 64/54 Maximum heating Minimum heating DB/WB(°F) 80/--- 45/--- Check up whether the exhaust hose has been mounted properly. Cautions for cooling and dehumidifying operations: When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between each ON/OFF.
- Page 21 6.6 Timer operation Timer ON setting: When the air-conditioner is OFF, press the “Timer” button and select a desired ON time through the temperature and time setting buttons. “Preset ON Time” is displayed on the operation panel. ON time can be regulated at any time in 0-24 hours. Timer OFF setting When the air-conditioner ON, press “Timer”...
-
Page 22: Installation Explanations
7. Installation Explanations 7. Installation Explanations 7.1 Installation Explanations: A removal air-conditioner shall be installed in the flat and empty place all around. Don’t block the air outlet, and the required distance around should be at least 30cm. (See Fig.8) Should not be installed in wet location, such as the laundry room. - Page 23 Fig.9 Fig.10 Fig.10a Fig.11...
- Page 24 Universal caulking kit accessory for mobile air conditioner Suitable for windows and doors Included in this kit: 1 piece of fabric 1 roll of tape gripping adhesive 1. Open the window and clean the 2. Cut large strips of adhesive doors and frame before gluing the gripping tape to the dimensions of the adhesive tape.
- Page 25 6. Your caulking kit is now installed, 5. Open the window gently and open you can now turn on and enjoy the the zipper of the fabric piece (at level coolness of your mobile air of the bottom or middle of the window) conditioner! then insert the exhaust duct into the If you no longer want to use your...
- Page 26 7.3 Water Full alarm The inner water tray inside the air-conditioner has one water level safety switches, it controls water level. When water level reaches an anticipated height, the water full indicator lamp lights up. (If water pump is damaged, when the water is full, please remove the rubber blockage at the bottom of unit, and all water will be drained outside.)
-
Page 27: Maintenance Explanations
8. Maintenance Explanations 8. Maintenance Explanations Declaration: 1) Before cleaning, be sure to disconnect the unit from any electric supply outlet; 2) Do not use gasoline or other chemicals to clean the unit; 3) Do not wash the unit directly; 4) If the conditioner is damaged, please contact the dealer or repair shop. -
Page 28: Troubleshooting
9. Troubleshooting 9. Troubleshooting Troubles Possible Causes Suggested Remedies - Water full indicator lamp blinks, Dump the water out of the and water tank is full. water tank. - Room temperature is higher than 1.Unit does not start the setting temperature. (Electric Reset the temperature when pressing on/off heating mode)
