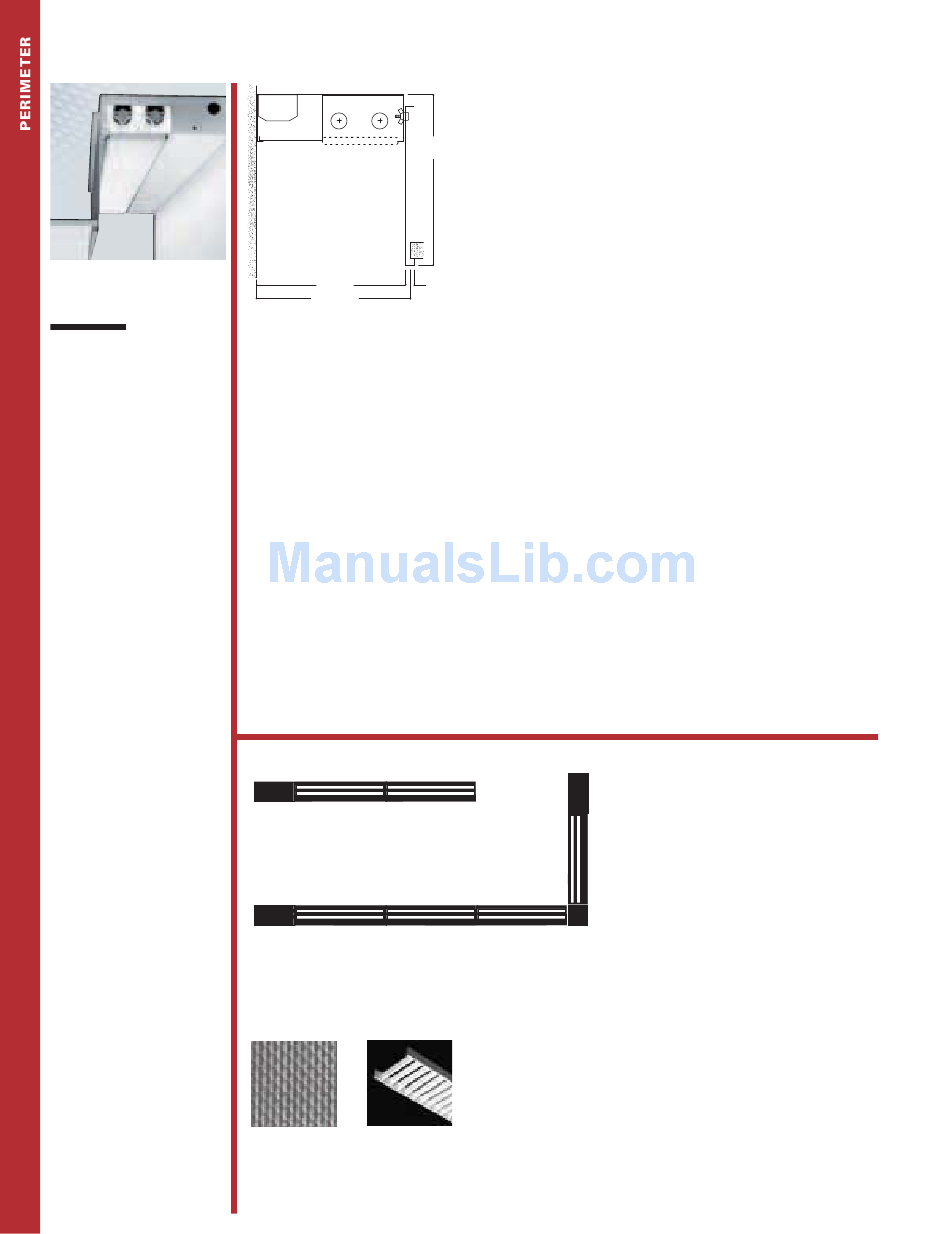

Cooper Lighting Neo-Ray 71 Specifications

NEO-RAY ™
72
71
D I R E C T- I N D I R E C T
• Direct wall wash light
distribution.
• The light is continuous and
unbroken.
• T5 and T8 lamping.
• Die formed steel housing,
• Nominal illuminated sections
3', 4', 6' and 8'.
• Runs are field adjustable.
• 90 degree mitered corners.
770
COOPER LIGHTING
10-1/2" [267mm]
3/4" [19mm]
9" [229mm]
9-1/8" [232mm]
CEILING OPENING
Construction
20-gauge steel housing.
Shielding
Clear prismatic lens, lateral baffle.
Electrical
120, 277, 347 or Universal Voltage electronic ballast.
Fixtures and electrical components certified to UL
and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic
finish.
Mounting
Recessed.
R U N S A N D PAT T E R N S
PATTERNS ARE PROVIDED IN 1FT. INCREMENTS
PLUS FILL-IN SECTION, FIELD CUT TO SUIT
PATTERNS ARE PROVIDED IN 1FT. INCREMENTS PLUS FIELD CUT
FILL-IN SECTION AND MITERED CORNER
S H I E L D I N G O P T I O N S
S58 Acrylic Lens S62A Lateral Aluminum Baffle with Clear Prismatic Lens Overlay
NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be
modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
ORDERING INFORMATION:
Sample number: 72-2T8-8-1EB-SI
Series
72=Perimeter
Number of Lamps
1=1 Lamp
Lamp Type
T8
Run Length
Overall Nominal Run Length__ft. (Any combination of 8', 6', 4' and 3'
sections)
1/2" [13mm]
Voltage 1
1=120V
Ballast
EB=Electronic Ballast (Standard)
Switching
SI=Single Switching
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR
Shielding
S58=KSH-12 Clear Acrylic Prismatic Lens
S62A=Lateral Aluminum Baffle with Clear Prismatic Lens Overlay
1 Due to various constraints, some options may not be combined with others.
9" X 9" CORNER BOX
71=Perimeter with light baffle option
(not included)
2=2 Lamps
T5 T5HO
2=277V 3=347V U=Universal
DB=Dimming Ballast
DU=Dual Switching
GMF
(for Series 71 only)
