Wiring

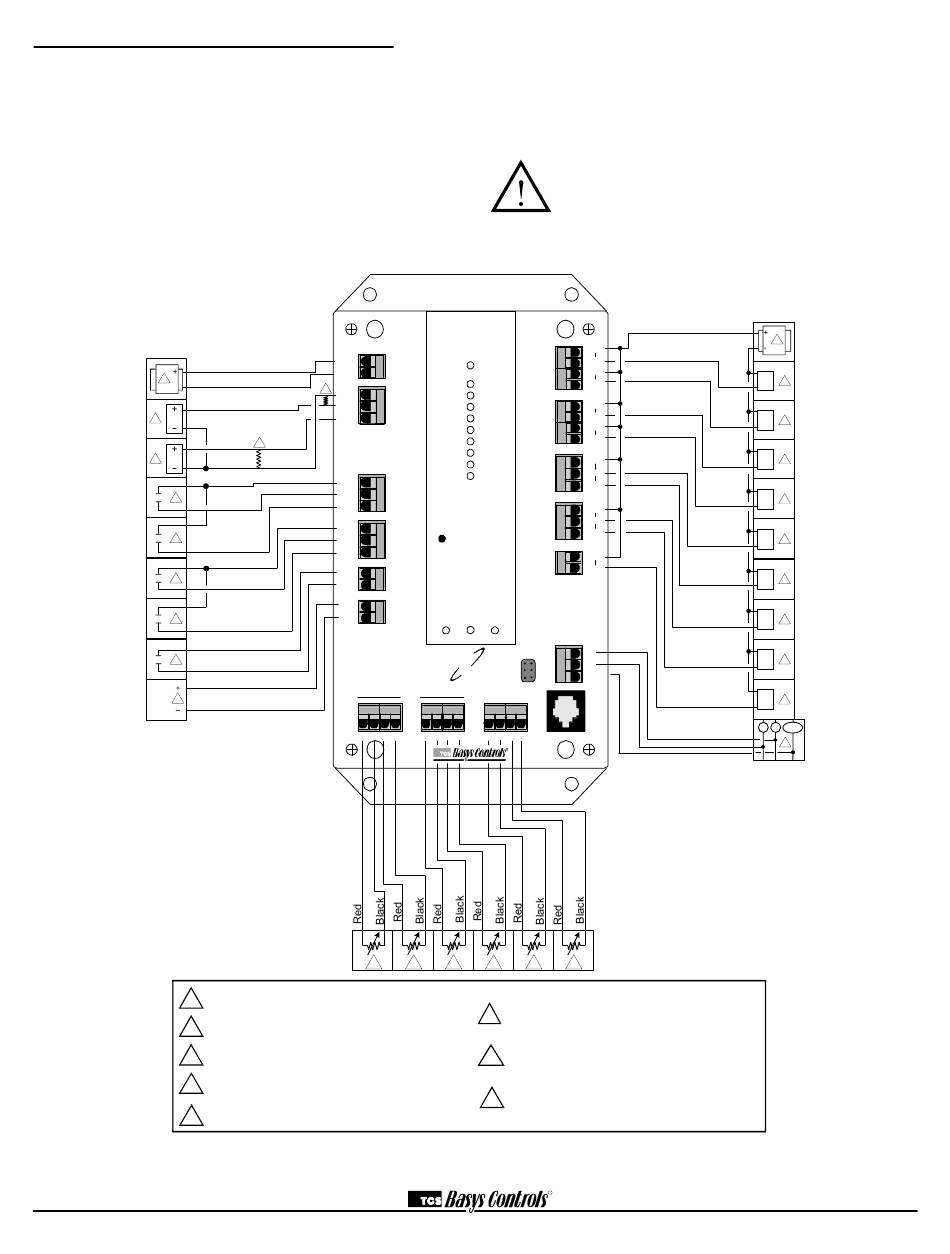

The SZ2165 terminal designations are shown below.
Remote SenSoR WiRing
The SZ2165 accepts six 1000 Ω two-wire platinum sensors. Consult
the TS Series Temperature Sensor submittal datasheet for a com-
plete listing of packaging and application styles. When using TCS
Basys Controls three-wire sensors, use the black and red leads, and
either clip or twist off the white lead. The wiring length should not
exceed 250 feet.
2
-
PA
6
VA
6
4
4
4
4
4
XMTR 7
1
2
3
4
5
External relay. 24 VAC Coil
