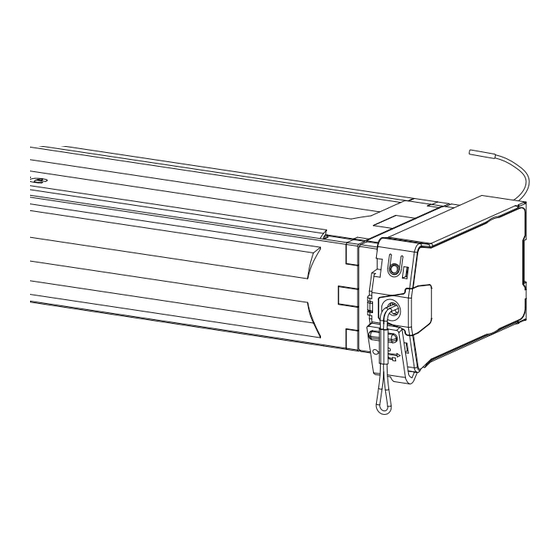

MOTION CM-08 LI-ION END MOTOR
M A N U A L C M -0 8
Li-ion battery powered end motor with
pull and remote operation
CM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM-08 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Motion CM-08

Summary of Contents for Motion CM-08

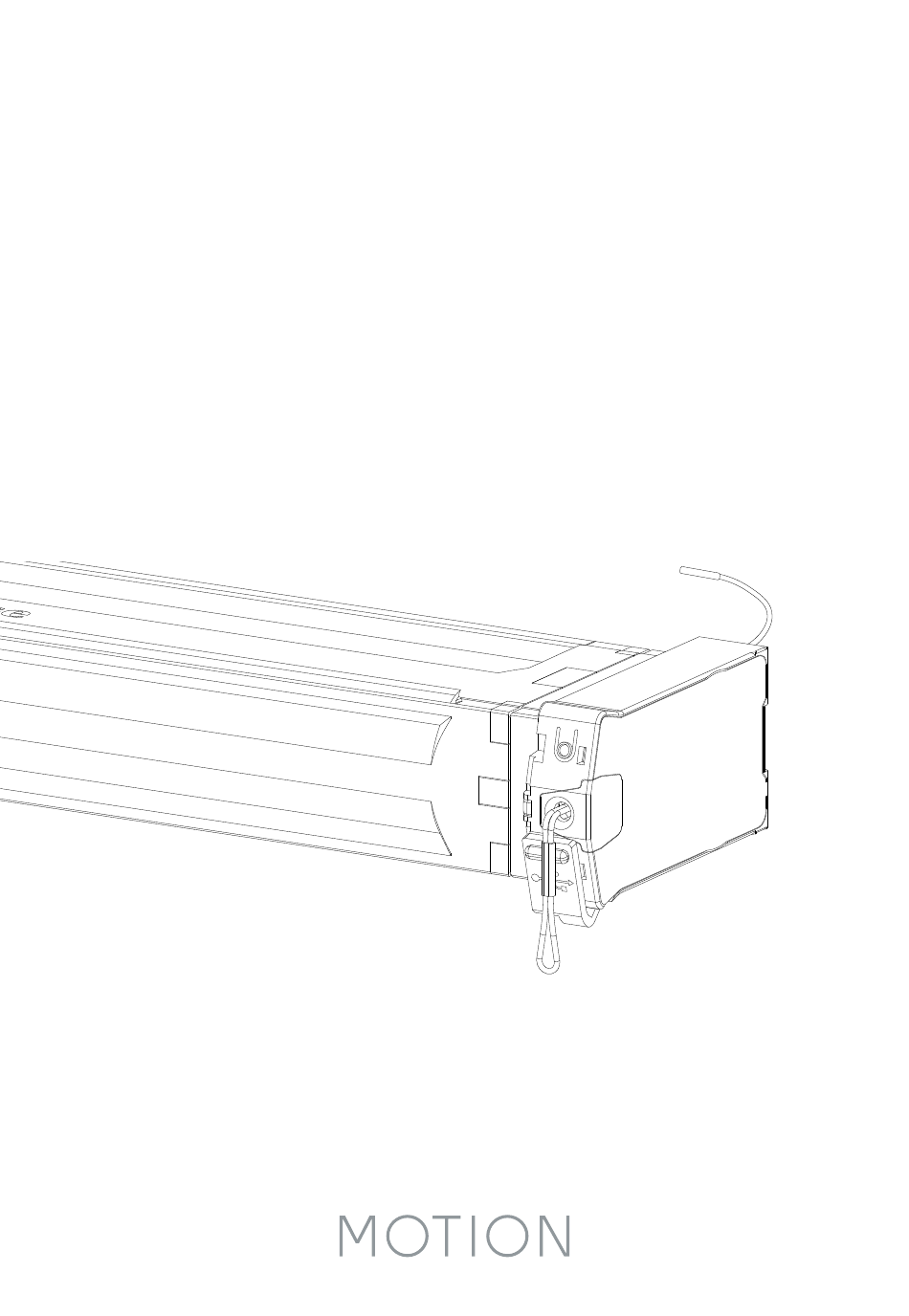

  • Page 1 MOTION CM-08 LI-ION END MOTOR M A N U A L C M -0 8 Li-ion battery powered end motor with pull and remote operation...
  • Page 2 MOTION CM-08 LI-ION END MOTOR CM-08 Li-ion battery powered end motor with pull and remote operation Motor features Li-ion Battery USB Rechargeable Wireless Speed Control Bi-directional Integrated Rechargeable with Cable free Consistent Two-way communi- lithium-ion battery micro USB installation rolling speed...
  • Page 3 MOTION CM-08 LI-ION END MOTOR WARNING Read the instructions carefully before assembling and using the product. Assembly can be completed by non- professionals. For indoor use only. Young children can strangle Cords may ensnare a child’s themselves with the loop neck.

  • Page 4: Important Safety Instructions

    MOTION CM-08 LI-ION END MOTOR Important Safety instructions Important Installation instructions WARNING: To reduce the risk of severe injury or WARNING: Important safety instructions. Follow all death, it is important to follow these instructions for instructions, since incorrect installation can lead to personal safety.

  • Page 5: Regulatory Information

    MOTION CM-08 LI-ION END MOTOR FCC Manual If this equipment does cause harmful interference This device complies with Part 15 of the FCC Rules. to radio or television reception, which can be Operation is subject to the following two conditions:...
  • Page 6 MOTION CM-08 LI-ION END MOTOR Channels Wall Program Single Channel Max. Mount blinds select select blinds CM-11 ■ ■ unlimited Hand remote ■ Unlimited CM-12 ■ ■ ■ ■ Hand remote CM-13 ■ ■ ■ ■ Unlimited ■ Hand remote Max.
  • Page 7 MOTION CM-08 LI-ION END MOTOR CM-11 CM-12 1 Channel Remote 5 Channel Remote Channel Channel indicator indicator Centre Centre (stop/favourite) (stop/favourite) Right Left Down Down Channel Selection Pair Pair Button Button...
  • Page 8 MOTION CM-08 LI-ION END MOTOR CM-13 15 Channel Remote Channel Indicator Centre (stop/favourite) Right Left Down Previous Next Channel Channel Pair Button...
  • Page 9 MOTION CM-08 LI-ION END MOTOR Install the blind Click! Click! Activate the motor Activate the motor by charging it with a micro USB cable. A green LED will start flashing. The motor can be used during charging. (To activate the motor without a micro...

  • Page 10: Check Direction Of Rotation

    MOTION CM-08 LI-ION END MOTOR Pair a remote Pair a remote control that is able to program blinds. See pages 4 and 5 for remote controls details. In this manual CM-12 is displayed. Shortly press the program button on the motor.
  • Page 11 MOTION CM-08 LI-ION END MOTOR Set bottom position Press and hold the down button until the blind reaches the desired bottom position. WARNING: Risk of damage. Slowly approach the bottom position. Down Simultaneously hold the centre and the up button until the blind stops stepping and Centre starts stepping again.
  • Page 12 MOTION CM-08 LI-ION END MOTOR Set top position Press and hold the up button until the blind reaches the desired top position. WARNING: Risk of damage. Slowly approach the top position. Simultaneously hold the centre and the down 10.1 button until the blind stops stepping and Centre starts stepping again.
  • Page 13 MOTION CM-08 LI-ION END MOTOR Set favourite position (optional) Move the blind to a desired favourite position. 11.1 Centre Hold the centre button to save this favourite 11.2 position. The blind shortly stops stepping, indicating the favourite position has been saved.
  • Page 14 MOTION CM-08 LI-ION END MOTOR Operate the blind Pull control: Pull once to move the blind to the end positions. Pull again to stop the blind. Remote control: Choose the channel to which the blind has been paired using the channel button.
  • Page 15 MOTION CM-08 LI-ION END MOTOR Reset favourite position Move the blind to a desired favourite position. 15.1 Press the program button on the motor to activate 15.2 Centre program mode. The blind starts stepping. Hold the centre button to save this favourite position. The blind shortly 15.3...

  • Page 16: Recharge The Battery

    MOTION CM-08 LI-ION END MOTOR Reset the blind It is possible to only delete end limits or to do a factory reset. Factory reset will delete the end limits and remove the connection to any paired remote. Press the program button on the motor to activate program mode.
  • Page 17 MOTION CM-08 LI-ION END MOTOR Advanced options Manual control In case there is no remote control or pull control, the blind can be operated with the program button on the motor. Hold the program button to manually operate 20.1 the blind.The blind will move as long as the button is being pressed.
  • Page 18 MOTION CM-08 LI-ION END MOTOR Single select 15 channel remote Single select makes it possible to activate program mode on a single blind through a remote control, without having to physically press the program button on the blind. To activate Single The remote starts 21.1...
  • Page 19 MOTION CM-08 LI-ION END MOTOR Channel select 5 channel remote Channel select makes it possible to copy blinds in between channels/remotes without having to physically press the program button on the motors. Select the channel To activate 22.1 22.2 from which the...
  • Page 20 MOTION CM-08 LI-ION END MOTOR Activate / de-activate the motor To prevent the blind from damage the motor has a transport mode that makes sure the blind will not be activated before installation. Hold the program button and pull twice to activate or de-activate the motor.
  • Page 21 MOTION CM-08 LI-ION END MOTOR Top-down/bottom-up (bottom rail) Top-down/bottom-up blinds are powered by two motors: one for the bottom rail and one for the middle rail. The motors need to be programmed individually: first the bottom rail motor and then the middle rail motor.
  • Page 22 MOTION CM-08 LI-ION END MOTOR Top-down/bottom-up (middle rail) Top-down/bottom-up blinds are powered by two motors: one for the bottom rail and one for the middle rail. The motors need to be programmed individually: first the bottom rail motor and then the middle rail motor.

  • Page 23: Frequently Asked Questions

    MOTION CM-08 LI-ION END MOTOR Frequently Asked Questions Problem Cause Solution Motor is in transport mode. Activate the motor. See step 24. Motor battery is empty. Charge the motor. See step 18. Remote battery is empty. (LEDS of Replace the battery in the remote.
