Summary of Contents for ARTRED AR-55

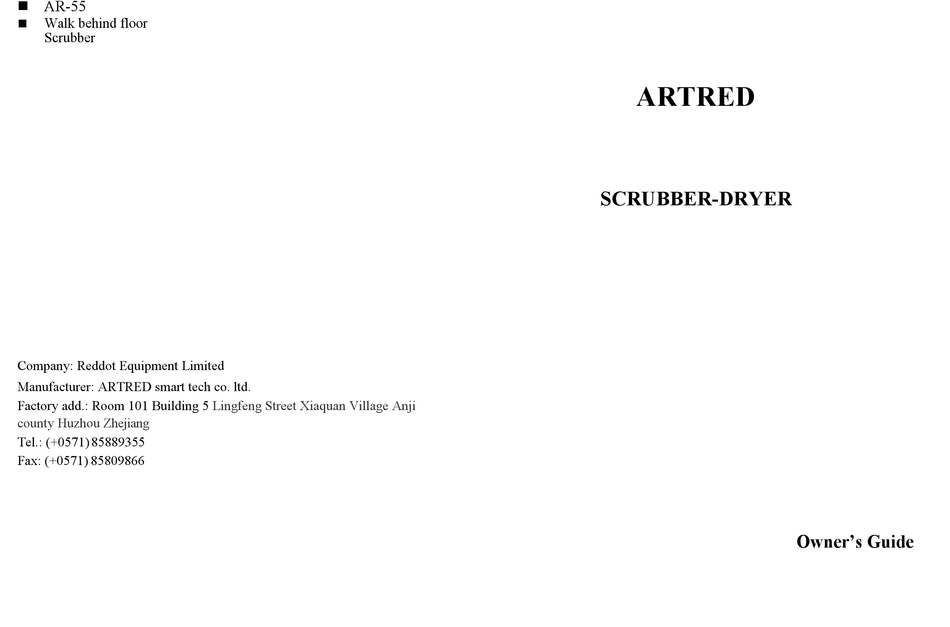

- Page 1 AR-55 Walk behind floor Scrubber ARTRED SCRUBBER-DRYER Company: Reddot Equipment Limited Manufacturer: ARTRED smart tech co. ltd. Factory add.: Room 101 Building 5 Lingfeng Street Xiaquan Village Anji county Huzhou Zhejiang Tel.: (+0571) 85889355 Fax: (+0571) 85809866 Owner’s Guide...
- Page 2 This Guide provides necessary instructions on machine operation and maintenance. Before operation or use of this machine, please carefully read and understand this Guide. When ordering the replacement parts, please refer to the spare and accessory parts manual attached to the machine. Before matching parts or accessories, please firstly determine your machine model and serial number.
-
Page 3: Table Of Contents
Content Precautions This machine is suitable for industrial and commercial use and specially used for cleaning indoor hard floor instead of other purposes. Please use the Precautions......................3 suggested scouring pad and brush as well as the commercially available floor Instructions on Machine Operation............... -
Page 4: Instructions On Machine Operation
3. When using the machine: Instructions on Machine Operation -please walk slowly when encountering the slope and sliding surface. -please wear anti-skid shoes. -Please slow down when turning. -report immediately when the machine is broken or the operation fails. -do not let the children play on or around the machine. -observe the mixing ratio and processing instructions on the chemical vessel. -
Page 5: Reception Of Machine
3. Carefully install the battery in the battery cabin and connect the battery cable Reception of Machine according to the following figure Machine Unpacking 1. Please carefully check whether there is damage on the packing box of the Blue machine. If there is, please immediately reflect to the carrier. 2. -
Page 6: Machine Installation
Machine Operation Machine Installation 1. Switch the key of the main power supply to the position of (Ⅰ). 2. Pull down the squeegee lifting rod to lower the squeegee component to the ground. Installation and Connection of Squeegee Component 3. Step on the brush head lifting pedal to lower the brush head to theground. 1. -
Page 7: Drainage Of Water Tank
Battery Coulombmete The battery coulombmeter will display the power quantity of the battery. When Before start and finish charging to make sure power is turn OFF. the battery is full of power, all indicator lights will be on. Along with the It is essential to follow the safety regulations of the battery and charging consumption of the power quantity, the indicator lights will go out from the right station manufacturers. -
Page 8: Machine Maintenance
Warning: 1. Move the machine to the place with good ventilation for charging. ire or explosion hazard. The battery releases hydrogen. Please be away from spark or open fire. The battery cabin must be kept open when charging. 2. Stop and place the machine on the level ground and turn the key to the close position. -
Page 9: Quarterly Maintenance
machine subject to the rain and store it indoor. 5. If the machine is stored in a cold environment, please indeed drain all liquid Quarterly Maintenance in the machine. Examine the abrasion conditions of the carbon brush of drive motor (drive model), vacuum motor and brush motor every 250 hours. - Page 10 ARTRED SCRUBBER-DRYER Technical Parameters Warranty Card of Series Products Card No.: Parameters of AR-55 Ride behind Scrubber User Name: Telephone No.: Technical parameter Unit AR-55 Address: Postcode: Productivity m2/h 2350 Purchase Date: Invoice No.: Squeegee width Cleaning width Item No.: Serial No.:...
- Page 11 ARTRED SCRUBBER-DRYER Certificate of Test Approval Warranty Card of Series Products Card No.: User Name: Telephone No.: Cable: ☑ Charger: ☑ Address: Batteries: ☑ Switch: ☑ Postcode: Outside: ☑ Fittings: ☑ Purchase Date: Invoice No.: Speed: ☑ Control: ☑ Item No.: Serial No.:...
