EN ORIGINAL INSTRUCTIONS
IMPORTANT - These instructions are for your safety.
Please read through them thoroughly prior to handling
the product and retain them for future reference.
V10323_5063022106117_MAND1_2223
5063022106117_MNL_IN_V03.indd 1
5063022106117_MNL_IN_V03.indd 1
4
5
XX/XX/23
XX/XX/23
Impala Ref: PRJ27462
NAME
NAME
EAN: 5063022106117
Page Size: A5
KNG: KNG-2208-0011

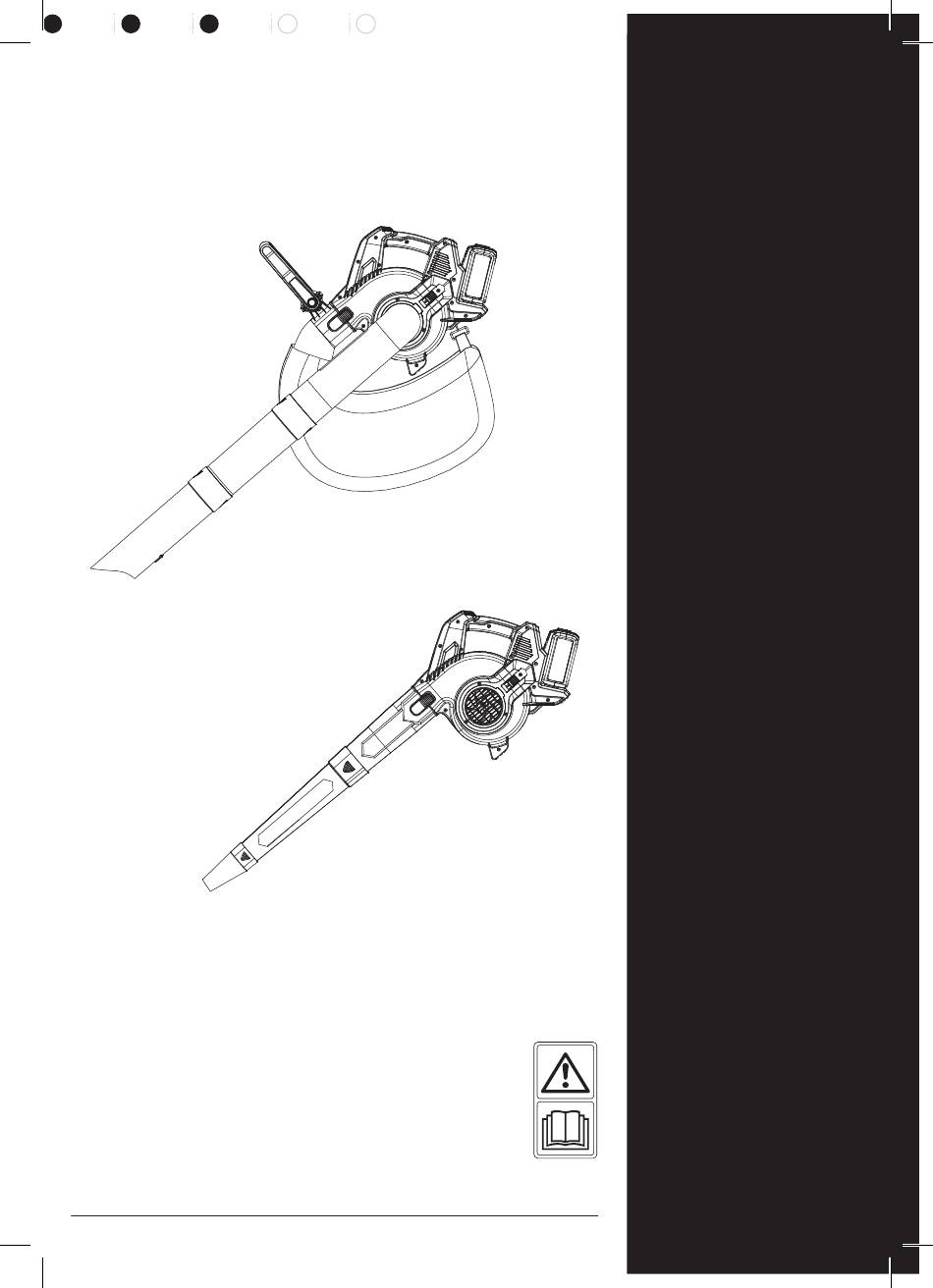

EN Cordless Blower
Vacuum 36 V
MBV36-Li
5063022106117
5063022106476
TTBC36-Li
5063022108425
5063022108500
31-03-2023 00:27:39
31-03-2023 00:27:39
Advertisement
Table of Contents
Related Manuals for Kingfisher MBV36-Li
Summary of Contents for Kingfisher MBV36-Li
- Page 1 Impala Ref: PRJ27462 Mohit NAME NAME KNG: KNG-2208-0011 EN Cordless Blower Vacuum 36 V MBV36-Li 5063022106117 EN ORIGINAL INSTRUCTIONS 5063022106476 IMPORTANT - These instructions are for your safety. Please read through them thoroughly prior to handling TTBC36-Li the product and retain them for future reference.
- Page 2 EN Parts 01. x1 02. x1 03. x1 04. x1 05. x1 06. x1 07. x1 08. x1 EN You will need EN Contents Product description Safety Technical specification Before you start Functions & Settings Operation Care and maintenance Guarantee Declaration of conformity 5063022106117_MNL_IN_V03.indd 2 5063022106117_MNL_IN_V03.indd 2...
- Page 3 EN Product description 1. Lower vacuum tube 7. On/off switch / Speed dial 17. Upper blower tube a. Nozzle 8. Main handle a. Location hole b. Location hole* (x2) 9. Air vents b. Latch* (x2) 2. Middle vacuum tube 10. Motor housing 18.
-
Page 4: Save All Warnings And Instructions For Future Reference
EN Safety General power tool safety warnings WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. -
Page 5: Personal Safety
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. - Page 6 g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles.
- Page 7 g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease.
- Page 8 g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire. Service a) Have your power tools serviced by a qualified repair person using only identical replacement parts.
-
Page 9: Operation
e) Operate the product in a recommended position and only on a firm, level surface. Do not operate the product on a paved or gravel surface where ejected material could cause injury. g) Before using, always visually inspect to see that the bolts and other fasteners are secure, the housing is undamaged and that guards and screens are in place. -
Page 10: Recommendations For Operation
h) Do not allow processed material to build up in the discharge zone; this may proper discharge and can result in kickback of material through the intake opening. If the product becomes clogged, shut-off the power source and remove the battery pack before cleaning debris. Never operate the product with defective guards or shields, or without safety devices, for example debris collector in place. -
Page 11: Maintenance And Storage
Maintenance and storage a) Keep all nuts, bolts and screws tight to be sure the product is in safe working condition. b) Check the debris collector frequently for wear or deterioration. c) Use only genuine replacement parts and accessories. d) When the product is stopped for servicing, inspection, or storage, or to change an accessory, shut off the power source, remove the battery pack and make sure that all moving parts are come to a complete stop. - Page 12 g) Carry the product by the handle with the motor off. Handling the product properly reduces the possibility of personal injury. h) Never use the product standing on steps or a ladder. Do not work above shoulder height. If the product starts to vibrate abnormally, check it immediately. Excessive vibration can cause injury.
-
Page 13: Vibration And Noise Reduction
h) When disposing of battery pack, keep the battery pack of different electrochemical systems separate from each other. Health surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work. -
Page 14: Residual Risks
Emergency Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards. a) Always be alert when using this product, so that you can recognise and handle risks early. - Page 15 Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarise yourself with them to reduce hazards like personal injuries and damage to property. Volt, (direct current voltage) Milliampere per hour Volt, (alternating voltage) Hertz Watt...
- Page 16 Wear protective, slip-resistant footwear. Wear tight-fitted protective clothes. Switch the product off and remove battery pack before assembly, cleaning, adjustments, maintenance, storage and transportation. Protection class II (Double insulation), only for charger. This product is of protection class III. Do not expose the product to rain or wet conditions (moisture). Keep bystanders away! Objects thrown by the product could hit the user or other bystanders.
- Page 17 UK Conformity Assessed. Rating label explanation Garden Blower Vacuum: MBV36-Li / TTBC36-Li M = Brand name (MAC Allister) / TT = Brand Name (Titan) BV = Blower Vacuum / BC = Blower Vacuum...
- Page 18 Battery pack: > Model no. : MDVB36-4 / TTB812BAT > Capacity : 8000/4000 mAh > Voltage : 18/36 V > Weight : approx. 1.02 kg Charger : > Model no. : MFC36 / TTB815CHR > Rated input voltage : 220-240 V~, 50/60 Hz >...
- Page 19 EN Before you start Unpacking 1. Unpack all parts and lay them on a flat, stable surface. 2. Remove all packing materials and shipping devices if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
- Page 20 Fig. 1 NOTE: To detach the blower tube assembly from the blower port (4), depress the right side of the locking knob (6) and hold it in place, then pull the blower tube assembly out from the blower port (4). Vacuum tube assembly 1.
-
Page 21: Battery Pack
Fig. 4 5. Press the right side of the locking knob (6) and hold it in place, then insert the collection bag (15) into the collection bag port (4) all the way to the stop. Release the locking knob (6) afterward. Ensure that the locking button (6) engages in the location hole (15c) (Fig. - Page 22 Fig. 6 Fig. 7 Charging the battery pack The battery pack (20) for this product has been shipped in a low charge condition. Charge it fully before first use. Refer to the charger’s instruction manual (MFC36) for the details. Battery capacity indicators The battery pack (20) is equipped with the battery capacity indicators (20c) which are used to give an indication of the battery pack’s remaining capacity.
-
Page 23: Intended Use
EN Functions & Settings Intended use This cordless blower vacuum MBV36-Li / TTBC36-Li is designated with a rated voltage of 36 V . It is designed only to be used with the battery pack which is listed in the chapter of “Technical specifications”. -
Page 24: General Operation
Fig. 10 WARNING! The motor / fan will continue to run for some time even after the motor has been switched off! Wait until it comes to a complete stop before putting the product down! EN Operation General operation 1. Double check that the accessories and attachments are properly fixed. 2. -
Page 25: After Use
Blowing 1. Make sure that the battery pack (20) is assembled before operation. 2. Before blowing, loosen leaves that are stuck to the ground using a broom or rake. 3. Always hold the product by the main handle (8). 4. Hold the tube approximately 10 cm above the ground and walk slowly forward using a sweeping motion from side to side (Fig. -
Page 26: General Cleaning
EN Care and maintenance The golden rules for care WARNING! Always switch the product off, remove the battery pack (20) and let the product cool down before performing inspection, maintenance and cleaning work! 1. Keep the product clean. Remove debris from it after each use and before storage. 2. -
Page 27: Troubleshooting
Spare parts / Replacement parts The following parts of this product may be replaced by the consumer. Spare parts are available at an authorised dealer or through our customer service. Description Model no. or Specification Battery pack (20) MDVB36-4 / TTB812BAT Charger (21) MFC36 / TTB815CHR Titan/Macallister 36V Blower Vacuum Bag... -
Page 28: Recycling And Disposal
Problem Possible cause Solution 1. Product does 1.1. Battery pack is not properly attached 1.1. Attach properly not start 1.2. Battery pack is discharged 1.2. Remove and charge battery pack 1.3. Battery pack is damaged 1.3. Check by a specialist electrician 1.4. - Page 29 EN Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non-professional or commercial) household use.
- Page 30 A better way to repair your tools Kingfisher takes special care in creating high-quality garden power tools that are designed to last. But if a fault develops with your garden power tool and you need to claim under the guarantee, the Customer Care and Technical Helpline can support with technical assistance or if required, arrange a free courier collection from your home, assess your garden power tool for fault, repair it, and return it.
- Page 31 Manufacturer: EN www.diy.com www.screwfix.com UK Manufacturer: www.screwfix.ie Kingfisher International Products Limited, To view instruction manuals online, 1 Paddington Square, London, W2 1GG, visit www.kingfisher.com/products United Kingdom EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands 5063022106117_MNL_IN_V03.indd 31 5063022106117_MNL_IN_V03.indd 31...
