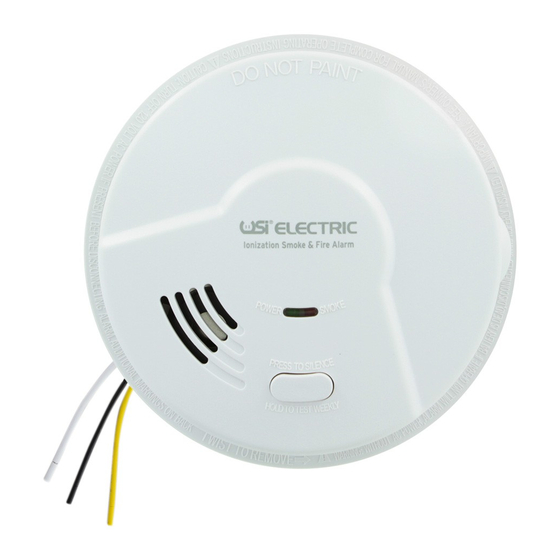

SMOKE & FIRE ALARM WITH SILENCE FEATURE
This smoke alarm uses an extremely small amount of a radioactive
element in the ionization chamber. Do not tamper with radioactive sealed
source or try to repair the smoke alarm yourself.
Smoke Alarm Limitations and Functions ................................. 2
Recommended Location of Alarms ......................................... 3
Avoid These Locations ........................................................... 4
Early Warning ......................................................................... 4
Installation Instructions ........................................................... 4
Electrical Shock Hazard ......................................................... 4
Locking/Tamper Feature ......................................................... 4
Wiring Instructions .................................................................. 5
Operation, Testing & Maintenance .......................................... 6
Cautions/Warnings ................................................................. 7
Silence Feature ...................................................................... 7
Backup Battery Replacement ................................................. 8
Develop and Practice a Plan of Escape .................................. 8
Operational Summary ............................................................. 9
Warranty ................................................................. Back Cover
MODEL 5304, 5304L
MODEL 2995, 2995L
AND ALARM ORIGINATION FEATURE
READ ALL INSTRUCTIONS

Table of Contents:

®
Page #

Advertisement

Table of Contents
loading

Related Manuals for usi 2995

Summary of Contents for usi 2995

  • Page 1: Table Of Contents

    MODEL 5304, 5304L MODEL 2995, 2995L SMOKE & FIRE ALARM WITH SILENCE FEATURE AND ALARM ORIGINATION FEATURE READ ALL INSTRUCTIONS This smoke alarm uses an extremely small amount of a radioactive element in the ionization chamber. Do not tamper with radioactive sealed source or try to repair the smoke alarm yourself.

  • Page 2: Smoke Alarm Limitations And Functions

    SMOKE ALARM LIMITATIONS AND FUNCTIONS ® There are three basic smoke alarm types: IoPhic , Ionization and Photoelectric.  ® IoPhic is an ionization alarm containing a patent-pending Universal Smoke Sensing Technology. ® IoPhic alarms are very effective at detecting fast flaming fires and also respond very quickly to slow smoldering fires - up to 87% faster than the maximum allowable alarm limit (UL217 Smoldering Smoke Test on 5/26/2010, Underwriters Laboratories Project #09CA38078).

  • Page 3: Recommended Location Of Alarms

    RECOMMENDED LOCATION OF ALARMS • Locate the first smoke alarm in the immediate area of the bedrooms. Try to protect the escape route as the bedrooms are usually farthest from an exit. If more than one sleeping area exists, locate additional smoke alarms in each sleeping area. If a hall is more than 40 feet (12 meters) long, install a smoke alarm at each end.

  • Page 4: Avoid These Locations

    AVOID THESE LOCATIONS • the garage – products of combustion are produced when you start your vehicle. • near appliances or areas where normal combustion regularly occurs (kitchens, near furnaces, gas hot water heaters). Use smoke alarms with photoelectric sensors or smoke alarms with Silence Feature for these areas.

  • Page 5: Wiring Instructions

    This alarm may be interconnected with a total of not more than 24 interconnected devices, i.e., as many as 11 other USI ELECTRIC or UNIVERSAL model smoke alarms or combination smoke and carbon monoxide (CO) or smoke and carbon monoxide / natural gas alarms;...

  • Page 6: Operation, Testing & Maintenance

    / event or heat alarm / event initiates the alarm. All CO alarms remain silent. Note that smoke alarms without battery backup will not respond during an AC power failure. NOTE: Relay Modules/USI-960 will not respond if a CO alarm / event initiates the alarm. 120 VAC 60Hz 100mA Max.

  • Page 7: Quick Find Alarm Originating Feature & Reset

    NUISANCE ALARMS: The smoke alarm is designed to minimize nuisance alarms. Smoking will not normally set off the alarm unless smoke is blown directly into the smoke alarm. Combustion particles from cooking may set off the alarm if the smoke alarm is located close to the kitchen cooking surface.

  • Page 8: Backup Battery Replacement

    (UTHA) MAINTENANCE: The smoke alarm is virtually maintenance free. However, under dusty conditions, a vacuum hose may be used to clear the sensing chamber of dust. Clean the smoke alarm at least once a month to remove dust, dirt, insects or debris. Always turn off power to smoke alarm before cleaning.

  • Page 9: Operational Summary

    NATIONAL FIRE PROTECTION ASSOCIATION REQUIRED INFORMATION For your information, the National Fire Alarm Code, NFPA 72, reads as follows: "11.5.1 *Required Detection - Where required by applicable laws, codes, or standards for a specific type of occupancy, approved single and multiple-station smoke alarms shall be installed as follows: (1) *In all sleeping rooms and guest rooms (2) *Outside of each separate dwelling unit sleeping area, within 6.4 m (21 ft) of any door to a sleeping room, the distance measured along a path of travel...

  • Page 10: Warranty

    If this product is found to be defective, USI’s only obligation, and your exclusive remedy, is the repair or replacement of the product, at USI’s discretion, provided that the product has not been damaged through misuse, abuse, accident, modifications, alteration, neglect or mishandling.

This manual is also suitable for:

5304l53042995l
