Page 2: General Information

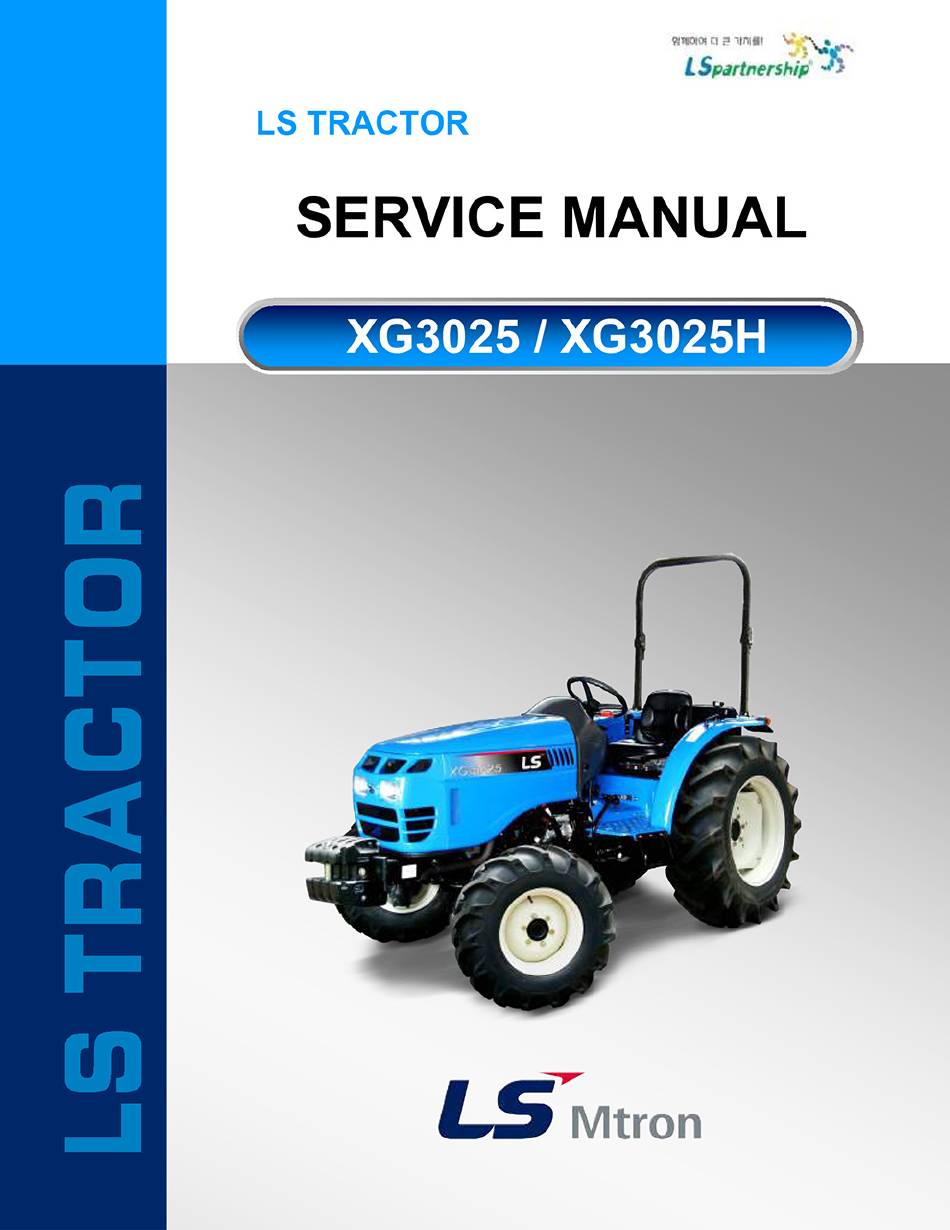

[XG3025 / XG3025H] SERVICE MANUAL Chapter 1. Safety & General Information... - Page 3 PREFACE This repair manual is to provide servicing personnel with information for precise and quick service for XG3025 / XG3025H tractors with high-end technologies. It contains various information on the general specifications, fundamental structure and operat-ing principle, instructions for disassembly, assembly, inspection and adjustment, and troubleshooting on each compo-nent for easier and precise service.
- Page 4 TABLE OF CONTENTS ✿ SAFETY AND GENERAL INFORMATION ........... Ⅰ ✿ ENGINE ......................Ⅱ ✿ CLUTCH & TRANSMISSION ................ Ⅲ ✿ FRONT & REAR AXLE ................. Ⅳ ✿ BRAKE ....................Ⅴ ✿ HYDRAULIC SYSTEM .................. Ⅵ ✿ ELECTRICAL SYSTEM ................Ⅶ...
- Page 5 Ⅰ SAFETY AND GENERAL INFORMATION XG-3000 SERIES This page intentionally left blank.
- Page 6 Ⅰ SAFETY AND GENERAL INFORAMTION TABLE OF CONTENTS 1.1 SAFETY TIPS ..........1-6 1.4.3 SPECIFICATIONS ........1-23 1.1.1 GENERAL SAFETY ........1-6 1.4.4 TRAVEL SPEED ......... 1-26 1.1.2 TO AVOID PERSONAL INJURIES ....1-8 1.4.5 PRECAUTIONS FOR DISASSEMBLY 1.1.3 DURING SERVICING ......... 1-10 AND ASSEMBLY ..........
-
Page 7: Safety Tips
Ⅰ SAFETY AND GENERAL INFORMATION XG-3000 SERIES 1.1 SAFEty tiPS 1.1.1 GEnERAl SAFEty Extra attention is needed and the following safety precautions should be strictly followed in your work place for service. 1. Keep your work place and surroundings clean and well-ventilated. - Page 8 Ⅰ SAFETY AND GENERAL INFORMATION XG-3000 SERIES 5. Never smoke in the workshop to avoid fire. P100W103A 6. There should be an emergency exit and its sign for evacuation in emergency. P100W126A 7. Follow helper's guidance for a special service. P100W127A...
- Page 9 Ⅰ SAFETY AND GENERAL INFORMATION XG-3000 SERIES 1.1.2 to Avoid PERSonAl injuRiES 1. Never wear loose fitting clothing or clothing with wide sleeves when servicing the engine or tractor. The sleeves of the shirt and the hem of the pants Safety helmet should be tightly fitting.
- Page 10 Ⅰ SAFETY AND GENERAL INFORMATION XG-3000 SERIES 9. Use only specified service tools in a good condition. Check their condition frequently. P100W108A 10. The service should be performed in a well- ventilated area to discharge exhaust gas while checking and servicing the tractor with the engine running.
