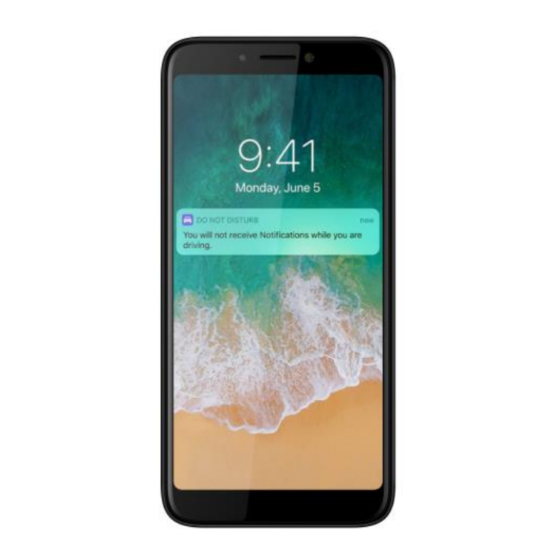

C2A
1. Technical Specifications :
Particular
Key Matrix For Flashing
Chipset
Android Version
Frequency
Network Mode
ROM
RAM
Internal SD Card memory
Expandable Memory
Factory mode code
Remarks
NA
MTK6737
Android 360
GSM: 2/3/5/8, WCDMA: 1/8, FDD:1/3/5, TDD: 40,41
Dual SIM: WCDMA+GSM
32GB
3GB
NA
MB can support up 64 GB T card
*#1923#
Disassembly Procedure
Advertisement
Related Manuals for cromax C2A
Summary of Contents for cromax C2A
- Page 1 Disassembly Procedure 1. Technical Specifications : Particular Remarks Key Matrix For Flashing Chipset MTK6737 Android 360 Android Version GSM: 2/3/5/8, WCDMA: 1/8, FDD:1/3/5, TDD: 40,41 Frequency Dual SIM: WCDMA+GSM Network Mode 32GB Internal SD Card memory MB can support up 64 GB T card Expandable Memory Factory mode code *#1923#...
- Page 2 Disassembly Procedure 2. CAUTIONS Flashing & Servicing must be undertaken by qualified personnel only. Ensure all work is carried out at an anti-static workstation and that an anti-static wrist strap is worn. III. Use only approved Tools & components as specified in the parts list. Ensure all components, modules, screws, and insulators are correctly re-fitted after servicing and alignment Ensure all cables and wires are repositioned correctly if Handset disassembled...
- Page 3 Disassembly Procedure Remove battery cover & finger print module……….………..………..2 Remove battery connector shield and battery………….3...
- Page 4 Disassembly Procedure Unscrew the phone………..4 Remove PCBA shield and rear housing part………..5...
- Page 5 Disassembly Procedure Remove side key FPC………….6 Remove main FPC…………..7...
- Page 6 Disassembly Procedure Remove rear camera……………………………..8 Remove RF cable………………………..9...
- Page 7 Disassembly Procedure Unscrew the PCBA and remove LCD FPC………………………..10 Remove front camera………………………..11...
- Page 8 Disassembly Procedure Remove rear housing part………………………..12 Remove vibrator………………………..13...
- Page 9 Disassembly Procedure Remove receiver………………………..14 Heat up the front housing module………………………..15...
- Page 10 Disassembly Procedure Remove LCD & TP from front housing………………………..16 Thanks For any Query or suggestion, Please write to tech.help@micromaxinfo.com...
