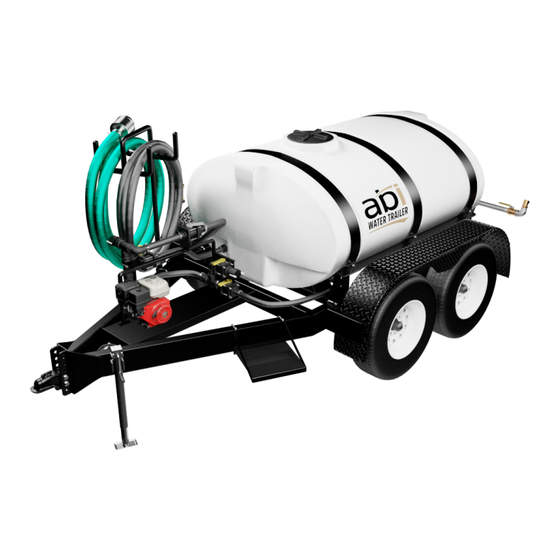

ABI Attachments WW500SFLABI Owner's Manual

Ag/dot water trailer 500/1000/1600 gallon

Hide thumbs Also See for WW500SFLABI:

Setup manual (11 pages)

Table Of Contents

Quick Links

Download this manual

Owner's Manual

AG/DOT Water Trailer

500/1000/1600 Gallon

NOTE: This Owner's Manual covers several models. Features may vary by model. Not all features in this manual are applicable to

all models and the model depicted may differ from yours.

Form No.

| Rev C | 6/13/2023

Table of Contents

Need help?

Do you have a question about the WW500SFLABI and is the answer not in the manual?

Questions and answers

Summary of Contents for ABI Attachments WW500SFLABI

Page 1 Form No. | Rev C | 6/13/2023 Owner’s Manual AG/DOT Water Trailer 500/1000/1600 Gallon NOTE: This Owner’s Manual covers several models. Features may vary by model. Not all features in this manual are applicable to all models and the model depicted may differ from yours.
Page 2: Table Of Contents
Model and Serial Number Model Number: Serial Number: Invoice Number: Purchaser’s Name: Contact Information ABI Attachments, Inc 520 S. Byrkit Ave. Mishawaka, IN 46544 Table of Contents Warranty..........3 Customer Support Safety............4 Email: abicustomerservice@abiattachments.com...
Page 3: Warranty
TERMS & CONDITIONS “ABI” means ABI Attachments, Inc. 520 S Byrkit Ave, Mishawaka, Indiana 46544, 877.788.7253. The above referenced models are warrantied for 36 months, from the original invoice date, against defects in materials and/or workmanship when put to normal and designed residential, farm, &...
Page 4: Safety
Safety WARNING! The SAFETY ALERT SYMBOL indicates there is a potential hazard to personal safety involved and extra safety precaution must be taken. When you see this symbol, be alert and carefully read the message that follows it. In addition to design and configuration of equipment, hazard control, and accident prevention are dependent upon the awareness, concern, prudence, and proper training of personnel involved in the operation, transport, maintenance, and storage of equipment.
Page 5 • Lower implement to the ground • Replace parts on this implement and follow all shutdown procedures with genuine ABI Attachments parts before leaving the operator’s seat to OPERATION SAFETY only. perform maintenance. • Do not alter this implement in a •...
Page 6 USE SEAT BELT AND ROPS • ABI Attachments recommends the use of a CAB or roll-over protective AVOID UNDERGROUND UTILITIES structures (ROPS) and seat • Dig Safe, Call 811 (USA Always belt in almost all tow vehicles.
Page 7: Safety Check List
Safety Inspection Check List The following items should be inspected before use: ☐ Check for Water leakage from tank, valves, piping, or hoses. ☐ Check ratcheting valve rope for any damage. ☐ Check cradle straps to ensure they are tight and bolted in properly. ☐...
Page 8: Specifications
Specifications SPECIFICATIONS: (OFF ROAD MODELS SPECS): Part # WW500SFLABI WW500DFLABI WW1000FLABI WW1600FLABI Capacity 500 Gal 500 Gal 1,000 Gal 1,600 Gal Dry Weight 1,260 lbs 1,460* lbs 1,900* lbs 2,260 lbs Full Weight 5,385 lbs 5,585* lbs 10,400 lbs 15,860 lbs Length 151"...
Page 9 Specifications (cont'd) BASIC OPERATIONS: Average Needed Water Amounts*: INDOOR WEEKLY OUTDOOR WEEKLY 80' X 100' 500-800 GAL. 60' ROUND 800-1200 GAL. 100' X 150' 1000-1500 GAL. 150' X 200' 2000-3000 GAL. 150' X 200' 1500-3000 GAL. 180' X 300' 4000-5000 GAL. Numbers are averages.
Page 10: Setup Instructions
SETUP INSTRUCTIONS The Ratcheting Valve: When the ears of the tab on the ratcheting valve are in line with pipe, water will flow to the rear sprayer. When the tab is not in line with the pipe coming from the valve, the sprayer is off.
Page 11 SETUP INSTRUCTIONS (cont'd) Sprayer Boom: The sprayers are able to spray between 8’ --21’ by setup. You can adjust these by turning the brass heads to cover more area. The 2 outside sprayers can both be shut off to control how much of an area is covered.
Page 12: Maintenance
Maintenance Pump/Motor: Refer to the manuals provided by the pump and motor manufacturer for maintenance instructions for the respective components. This can be located in the document holder connected to the frame on the front of the Water Trailer. • Never run the Motor and Pump for long periods of time without water in the system.
Page 13 Maintenance (cont'd) Ratcheting Valve Information: The Ratcheting Valve works on a spring and pin system. The spring located on the outside of the handle returns the handle back to neutral after every pull. Pulling the handle past the designed distance to turn the ball valve may damage the spring. Additionally, the pin on the inside of the handle may become damaged, or the housing around the pin or retainer points may become damage.
Page 14 Maintenance (cont'd) Small manual adjustments may occasionally be necessary to accommodate changing loads and driving conditions. Synchronization of the tow vehicle-to-trailer braking can only be accomplished by road testing. Locking up, excessive grab, or delayed application is quite often due to the lack of synchronization between the tow vehicle and the trailer being towed. High voltage (2V+), Low voltage (2V-) or improperly adjusted brakes are the most common causes of these problems and can easily be corrected.
Page 15 Maintenance (cont'd) Clean and Inspect Brakes : In the event the braking system encounters symptoms of improper application or failure, immediate inspection and service MUST be implemented. During normal use, servicing the braking system once a year is considered normal. Above normal use will require servicing based on a 3,000-6,000 mile increment schedule.
Page 16 Maintenance (cont'd) Shoes and Linings : Inspect brake shoes and linings for: Grease or oil. Surface scoring, pitting or gouges. Replace both shoes if lubricant contamination or physical damage is present, even if found on only one shoe. A. Replace both shoes (two) on the brake and on both brakes (four) installed on the same axle. Replace brake parts at the same time.
Page 17 Maintenance (cont'd) Email: support@abiattachments.com Call Toll Free: 877-788-7253...
Page 18 Maintenance (cont'd) Visit: www.abisupport.com...
Page 19: Footnotes
Footnotes Email: support@abiattachments.com Call Toll Free: 877-788-7253...
Page 20 Contact Information Customer Support ABI Attachments, Inc Email: support@abiattachments.com 520 S. Byrkit Ave. Phone: 877-788-7253 Mishawaka, IN 46544 Website: www.abisupport.com To order parts or to speak to one of ABI’s Customer Service Representatives contact us Monday to Friday 9am to 5pm EST.

This manual is also suitable for:

Ww500dflabi Ww1000flabi Ww1600flabi
