INSTALLATION GUIDE

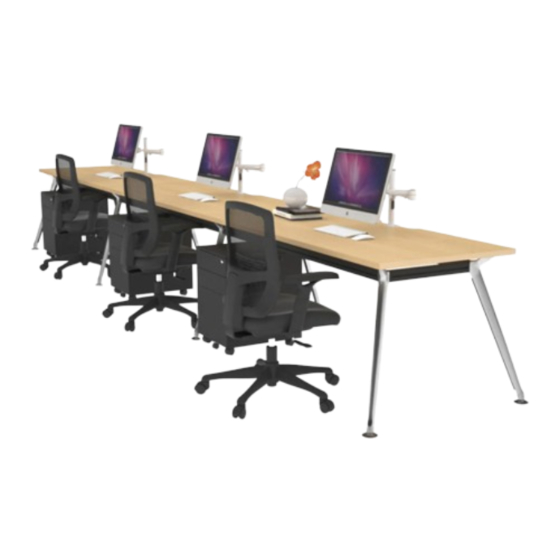

San Fran 3 Person
Run Workstation
Size: 1600x800 mm
Tools Required: Power screwdriver.
Special Note: Please ignore any pre-drilled holes or nut inserts that maybe present in your top(s).
They will not match your particular table/desk base and woods screws will be required to be screwed
directly into the underside of the top.
www.jasonl.com.au
Need help!
Call us on
1300 527 665
Page 1 of 4
