- Page 1 Installer Reference Guide Rev 1.30 ® SMART RF RF120 Base Station RF121 Base Station With Relay Outputs RoHS...

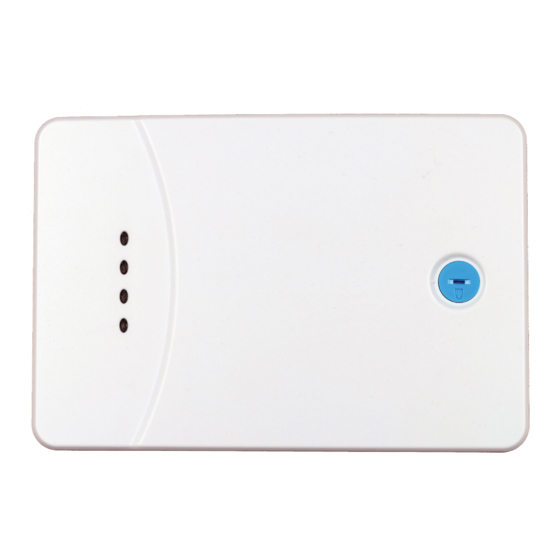

- Page 2 RF120-RF121-SMART RF Base Stations - RS485 The SMART RF Base Station is an advanced 2-Way 433Mhz transceiver that interfaces directly to compat- ible control panels via an RS485 LAN connection. There 2 3 4 5 are two built in radio transmitters and receivers with dual diversity internal antennas.
- Page 3 ers as required in strategic locations. Up to 4 receiv- points as necessary. Secure the case using fix- ers can be added. tures appropriate for the wall construction type. Make sure to fit the rear tamper screw when Installation mounting as shown. Step 3) Feed any wires into the case via the knockouts The receiver should be installed onto a solid surface provided and then replace the PCB by inserting...
- Page 4 Receiver Operation Multiple Receiver Wiring Connection At start up the control panel will configure the receiver Wiring Legend with all the necessary information. The Base Station will Control Panel receive information and then send an acknowledge to = LAN + the RF device if it supports 2-way communication.
- Page 5 Configuring RF110 Keyfob Button Functions Disabled MENU 6-2-6 is used to customise the button functions Disarm on the RF110 SMART RF 2-way keyfobs. Each of the 5 buttons can be programmed with two independent functions if required with buttons 1 to 5 being a single Part 1 press function and buttons 6 to 10 being hold down Part 2...
- Page 6 Optional RF110FK Fascia Kit Programming An option fascia kit is available to allow customers to Output programming options are fully detailed in the personalise their keyfob or to match corporate colours control panel installation manual and quick reference etc. Each kit is supplied with 7 different coloured facias guides.
- Page 7 Switch 5 can be used the terminate the LAN if necessary. Connection point for CM799 Service Keypad. Panel LAN connection. Refer to full wiring DIGIFLEX instructions in DF70 control Panel Relay test switches. These installation manual DIGIFLEX can be used on RF121 to...
- Page 8 IGIFLE 18 Brumby Street Seven Hills NSW 2147 AUSTRALIA Phone:(+612) 97417000 Email:sales@digiflex.com.au www.digiflex.com.au Our Vision Is Your Peace Of Mind Made in Australia Copyright © 2002-2021 Digiflex Pty Ltd P/N : RF120-RF121IRG Rev 1.30...
