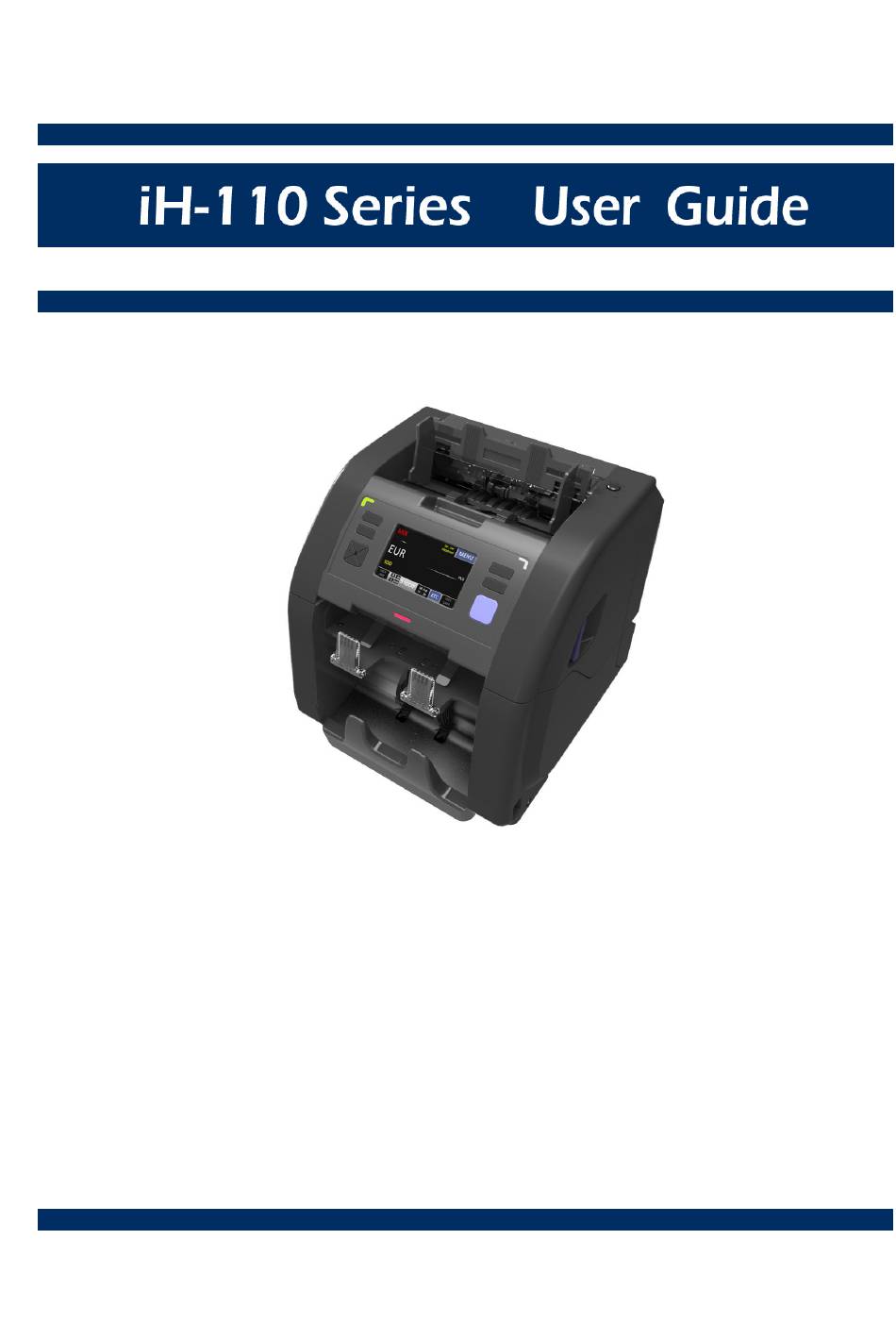

Innovative and sophisticated 2 pocket banknote counter &authenticator
Are you searching for a high efficient banknote detector?
Then look no further!
iH-110 is a machine to obtain all your needs and requirements.
It can accurately count notes and safely detect counterfeit all at high speed operation.
This compact machine performs more than you might imagine.
Experience one for yourself and you will find your search is finally over!
Rev. 1.1.2
Date: 2016. 10. 21
Advertisement
Table of Contents
Related Manuals for SeeTech H-110 Series
Summary of Contents for SeeTech H-110 Series
- Page 1 Innovative and sophisticated 2 pocket banknote counter &authenticator Are you searching for a high efficient banknote detector? Then look no further! iH-110 is a machine to obtain all your needs and requirements. It can accurately count notes and safely detect counterfeit all at high speed operation. This compact machine performs more than you might imagine.
-
Page 2: Table Of Contents
4-7. Machine Info........................43 5. Machine Status 5-1. MOTOR ..........................44 5-2. SOL ............................ 44 5-3. CNT............................ 45 5-4. Monitor ..........................45 5-5. FR-LED ..........................45 6. Specification ..........................46 7. Error Code ..........................47 8. Maintenance ..........................48 SEETECH... -
Page 3: Introduction
This symbol indicates prohibited matters, do not attempt. Please read the indications well. Never try any prohibited matters. This symbol denotes that there are indication matters which should be done without fail. Please read the indicated matters thoroughly and always perform them as shown. SEETECH... - Page 4 1m or less from heating apparatus such as stoves, heaters etc. Any place with direct winds blown from air conditioners, ventilating openings etc. There are safety problems and deterioration of the product may be accelerated, which leads to any cause for failure. SEETECH...
- Page 5 Water pipes or faucets with plastic materials at their intermediate part. Do not use or put the combustible materials such as thinner, combustible gas, or a high-volatile object around/inside the product. Otherwise, it may cause explosion and/or fire due to heating from the product or flashing from power supply.. SEETECH...
- Page 6 2. The product should be used at the specified frequency. If it is used at other than the specified frequency, it may cause an accident. SEETECH...
- Page 7 4. Do not turn off air heating suddenly when the product is completely cold. Moisture may adhere inside the product due to sudden air heating and it may cause electric shock. SEETECH...
- Page 8 2. When closing a door, pay attention not to not cause body injury or damage property. 3. When working ensure that all doors of the machine are locked. If a door is left open it may cause body injury or damage to property. Do not touch the gear etc. It may cause injury. SEETECH...
- Page 9 Then, please contact our distributor near you or our designated dealers. It used or left as it is, it may cause fire and/or electric shock. SEETECH...
-
Page 10: Packing List
Accurate recognition of serial MICR recognition of cheque Barcode recognition with full number with full color image and voucher with full color color image. and accurate recognition of Image and OCR of MICR. OCR for serial number. SEETECH... -
Page 11: Appearance
User Guide Appearance <Front View> LCD Display Hopper Hopper Guide Operation Keys Reject Pocket Stacker <Rear View> Gap Adjust Knob Power Supply Socket USB-H Power Switch (PC) External USB-S Printer Display (Devices) SEETECH... -
Page 12: Before Using
Check for foreign matter (paper chips, rubber bands, clips, dust etc.) mixed with notes. Remove folds or end from notes beforehand. Spread and separate brand new notes well for some of them are slightly adhesive. Align all the four corners and edges of notes. Any unevenness may cause an error. SEETECH... -
Page 13: Key Operation
When Stacker is full, LED(L) is blinked. Turn on when Teller 1 is selected. LED(R) When Batch is full, LED(L) is blinked. Turn on when Teller 2 is selected. LED(B) When CF is detected or Reject is full, LED(B) is blinked with Red(CF) and Green(Reject). SEETECH... - Page 14 User Guide ※ Special Key or Drag Pattern Operation Screen Mode(screen) Combination Drag Pattern L1 + R1 L1 + R2 L2 + R1 L2+ R2 None SEETECH...
- Page 15 User Guide None Long press L1 None Long press L2 None SEETECH...
-
Page 16: Display Operation
Display and change Batch quantity of Reject and Stacker. Go to P. 31 Enter Menu screen. Go to P. 24 User Setting Mode. Display and set date and time. Date&Time Go to P. 38 User Display the current user. SEETECH... -
Page 17: Normal Operation
By touch the screen, Count Mode is changed from Mix, SP and SG. Mix -> SP -> SG -> Mix ① ② ③ ① View total counting result. ② View counting result from Stacker Pocket. ③ View counting result from Reject Pocket. SEETECH... - Page 18 User Guide SG Mode A user can select the version and denomination which he counts. SEETECH...
-
Page 19: Sn Reading
User Guide 3-2. SN Reading A user can check the serial numbers about all counted notes on screen. SEETECH... -
Page 20: Barcode Reading
User Guide 3-3. Barcode Reading (Only iH-110B) By long touch of Currency area, a user can select Barcode mode directly. In this mode, a user can count Barcode tickets and check the recognized Barcode directly. SEETECH... -
Page 21: Check Reading (Micr)
User Guide 3-4. Check Reading(MICR) (Only IH-110S) By long touch of Currency area, a user can select Check Reading mode directly. In this mode, a user can count Checks and see the recognized information directly. SEETECH... -
Page 22: Multi Mix
In Multi Currency mode, a user can count the mixed currencies together. A user can also check the counting result in detail about each currency separately. When touch left or right side of Display, a user can see the details counting result of each currency. SEETECH... -
Page 23: Multi Sc
3-6. Multi SC (Auto Mode) From Multi(Mix) screen, user can enter Multi SC mode. In Multi SC mode, the first recognized currency is accepted only and the others are rejected. Error code of the rejected other currencies is DIFF CURRENCY. SEETECH... -
Page 24: Settings
A user can turn on or off CF, UV and ① MG separately. ② ② Option CF LED When CF is detected, LED(B) is turned on. CF BUZZER When CF is detected, the warning buzzer is turned on. CF STOP when CF is detected, the machine is stopped. SEETECH... - Page 25 User Guide 2) Dispenser Batch by total value. SEETECH...
- Page 26 ③ SN Black-list (Max 100 ea) If a serial number is entered, the banknote with the serial number is ③ rejected. ╋ : Enter serial number to black list. ━ : Delete serial number from black list. SEETECH...
- Page 27 When next Batch is started, the displayed value is started from 0. V.continue When next Batch is started, the displayed value is started from the previous counting result. V. Clear When next Batch is started, the displayed value is started from 0. SEETECH...
- Page 28 Enter the client information, account no, type of deposit and keep and print value of the deposit. ① ② ③ ① Customer information - Keypad Enter all information by keypad. ② Barcode Scanner ON/OFF Enter all information by Barcode Scanner. ③ Data export method User can select the data export method. SEETECH...
- Page 29 Log data can be exported by Printer, USBH or ENET. ③ Log list The created log lists are shown. ④ If the same serial number is counted within 10 minutes, the data is not saved. ⑤ View View Log data. SEETECH...
- Page 30 Stacker condition 1 A user can sort banknotes by Version and Direction. ② Stacker condition 2 A user can sort banknotes by Version, Direction and Orientation of the first counted note ③ ④ ③ ADD function ④ MANUAL START SEETECH...
-
Page 31: Operation
4-2. Operation When touch from Main Screen, the hidden menus are show. Select(or enter) Operation. 1) FLAG Select the display currency is Flag or Symbol. 2) LCD-BRIGHT Adjust LCD brightness level. 3) DENON-disp Show the denomination info. On Main screen. SEETECH... -
Page 32: System Setting
When ENET is connected, LCD screen is transferred to PC. 6) LANGUAGE Select the displayed language. 7) HISTORY Save Counting result about each boundle. 4-3. System Setting When touch from Main Screen, the hidden menus are show. Select(or enter) System Setting. SEETECH... - Page 33 - A/M - Select Auto Print or Manual Print. ② Option - User - A user can print user name, bank name and branch name to Receipt. - SN - A user can select the printed data type of Serial Number. SEETECH...
- Page 34 DP MODE - AUTO The same screen of Machine is displayed on External Display. - Count/Value Only quantity and amount are displayed. - DENOM Count result by denominations is displayed. 4) KEY A user can change Key operation personally. SEETECH...
-
Page 35: Com. Info
User Guide 5) TACO User can see Tacometer of the machine. 4-4. Comm. Info (Comminication Setting) When touch from Main Screen, the hidden menus are show. Select(or enter) Comm. Info. SEETECH... - Page 36 Select – Select the file for special upgrading. ③ Load – Load data and settings from USB to Machine. For example, User Info, Exported data and etc. ④ Export – Export data to USB. 2) ENET ① ② ③ ④ SEETECH...
- Page 37 - Note info Counting information, Serial Number, MICR, Barcode and Sensor Information are tranferred.. - Data Acq Including Note info, CIS Full Image is saved. - SCANNER only for iH-100(B) and iH-110(S) model. Including Note info, CIS Color Image is tranferred. SEETECH...
- Page 38 You can enter the hidden screen by enterring Pincode. 5) TELLER Set 2 Teller mode. Before user 2 Teller mode, you need to add thesecond User to the machine first. (1) Press L1 and RS2 Key together from Main screen. SEETECH...
- Page 39 (4) Touch INFORMATION area and enter USER, BANK and BRANCH information. (5) After enter all information, press RS1 Key for saving. You can delete the information by pressing RS2 Key. When press START Key, you can exit the menu. SEETECH...
- Page 40 User Guide Teller 2 Teller 1 LS 1: Select Teller 1. RS 1: Select Teller 2. LS 2: Print Counting result RS 2: Print Counting result of Teller 1. of Teller 2. SEETECH...
-
Page 41: User Setting
4-5. USER Setting (Pincode is needed.) When touch from Main Screen, the hidden menus are show. Select(or enter) USER Setting. Enter User name, Bank name and Brach name for each user. The entered data can be printed to Receipt. SEETECH... -
Page 42: Local Setting
① A user can adjust IR, UV, MG and DBL(Double Level). (Range 0 ~ 100) ② Changed Levels can be applied for all included currencies, version or denomination at once. ③ A user can load or export local levels. SEETECH... -
Page 43: Machine Info
By Network, USB Cable and USB Stick, Note Information, Data Acquistion and Scanned data are tranferred - LOCAL Check all installed currencies. - Multi Check the currencies which are availble int Multi-Mix mode. - SN Check the currencies with Serial Reading function. - HELP Under developing SEETECH... -
Page 44: Machine Status
User Guide 5. Machine Status (Pincode is needed.) 5-1. MOTOR Test 3 kinds of Motor by a simple touch. 5-2. SOL Test Solenoid condition. SEETECH... -
Page 45: Cnt
Check the condtion of internal and external count sensors. 5-4. Monitor Check and monitor CPU internal power and temperature. If some problems are caused, warning message is shown on Main Screen. 5-5. FR-LED Test the conditions of 3 LEDs. SEETECH... -
Page 46: Specification
200 notes (Max 250 notes) Display 4.3 inch Color touch screen Interface LAN, USB, (EX-DP), (Printer) Dimension 300(W) x 320(D) x 315(H) Weight Approx. 13 Kg Power Supply 100 ~ 240V AC, 50/60 Hz External Display, Thermal Printer, OSD(ON Screen Accessories Display) SEETECH... -
Page 47: Error Code
DIFF CURRENCY A different currency is counted. (In Auto Currency mode) DOGEAR ERROR A Dog-Ear note is counted. SN DIFF A note with the different SN is counted. SN MISS The recognition of letters of serial numbers is failed. SEETECH... -
Page 48: Maintenance
The machine has many sensitive sensors to perform high technology functions, for example counterfeit detection, denominations, etc. Users are recommended to clean the machine sensors at least once a day. Refer to following section and clean the machine regularly. ※ Please turn the power off before cleaning the machine. SEETECH... - Page 49 User Guide Up Sensor Module Down Sensor Module Lower Drive Body Hopper sensor Stacker sensor Dust Tray SEETECH...
- Page 50 User Guide Office & Factory 7-6, 4-gil, Samsung 1-ro,Hwaseong-si, Gyeonggi-Do, Korea TEL: 82 31 211 8761 / FAX: 82 31 211 8763 www.e-seetech.com SEETECH...
