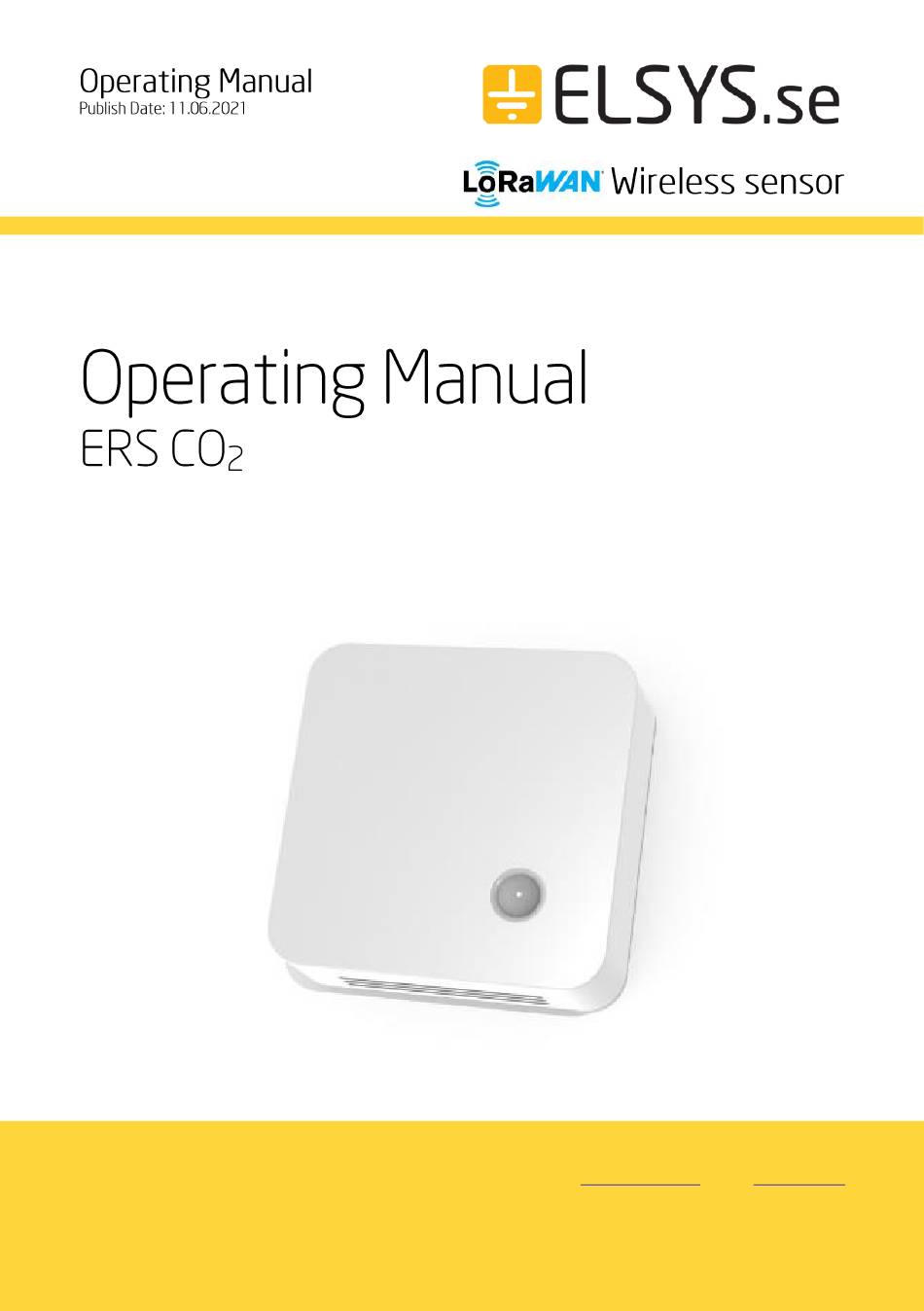

- Page 1 Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se Specifications in this document are subject to change without notice. ©Elektroniksystem i Umeå AB 2020...
-
Page 2: Important Safety Information
For additional information and how to carry out disposal, please contact the certified disposal service providers. The sensors contain a lithium battery, which must be disposed of separately. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 3: Table Of Contents
Schedule Transmission ..................... 13 Motion detection range .................... 14 PIR Lens detection pattern ..................14 Traffic light LED ......................15 Specifications ........................16 Sensor payload format ....................16 Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... - Page 4 Regulations ........................17 Legal Notices ......................17 Federal Communication Commission Interference Statement ......17 Declaration of conformity ..................18 Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se...
-
Page 5: Description
NFC (Near Field Communication) and can easily be configured from a smartphone. The barcode contains DevEUI and sensor type. This label is located at the back of your device, Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 6: Main Features Of Ers Co
After approximately 24 days the sensor will be self-calibrated. Forced calibration is not required in normal environments. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 7: How To Calibrate
For these applications, the ABC function must be turned off. Without ABC operating, the sensor should be calibrated manually every two or three years. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 8: Installation
Caution: Using batteries other than the ones provided may result in loss of performance and battery life, and also damage to the device. Dispose of properly, observing environmental protection rules. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 9: Service And Maintenance
4. Attach the sensor part to the back panel. Service and maintenance No serviceable parts inside. If service is needed other than battery replacement, please contact your distributor. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 10: Sensor Configuration
NFC to make end-users unable to read or change settings on the sensor. NFC Configuration 1. Download ELSYS “Sensor Settings” application from Google Play and install it on a smartphone or tablet. The device must support NFC. 2. Enable NFC on the device and start the application. -
Page 11: Over The Air Configuration
When you have written data to the sensor, let the sensor reboot and restart before trying to write again. You should always validate your settings by reading the NFC data after the sensor has restarted. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 12: Sensor Startup
After successful connection to a network, the sensor sends a settings packet and enters sampling mode. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 13: Sampling Mode / Periodic Measurement
Note: The configured sending interval can be overridden by network limitations. Due to this, the spreading factor and sending interval settings might result in longer intervals than intended. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 14: Motion Detection Range
Note: The PIR Lens has a blanking time of 20 seconds right after motion event and transmission. Any movements during this time will be ignored PIR Lens detection pattern Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 15: Traffic Light Led
High/Mid/Low value indication: Choose the color of the LED, and with what time interval you want the LED to flash. Output: Will be sent as settings to the sensor. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 16: Specifications
Specifications Sensor payload format The device uses the standard ELSYS payload format. Please see the specified document on our webpage. Power supply: 3.6V DC Battery type: AA 14505 (Li-SOCI EU directives compliance: RoHS 2011/65/EU WEEE 2012/19/EU Radio protocol: LoRaWAN® Radio frequency band: US902-928, EU863-870, AS923, AU915- 928, KR920-923, RU864, IN865 &... - Page 17 All information, including, but not limited to, information regarding the features, functionality, and/or other product specification, are subject to change without notice. ELSYS reserves all rights to revise or update its products, software, or documentation without any obligation to notify any individual or entity. ELSYS and ELSYS logo are trademarks of Elektroniksystem i Umeå...
