Page 4: Description

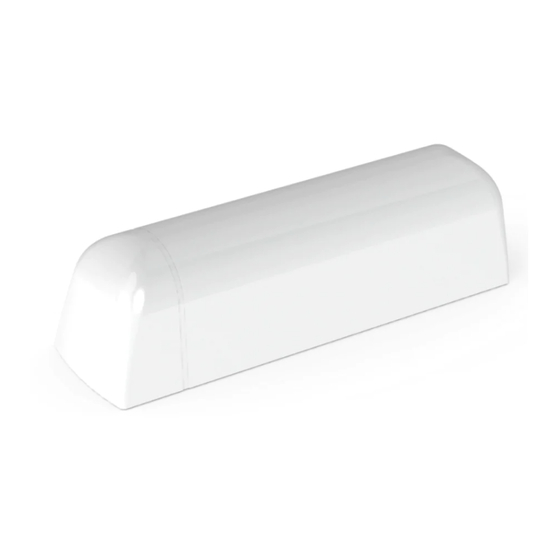

Description EMS Desk is a sensor slightly larger than an AA-battery and ideal for mounting under desks. It can be used for measuring desk occupancy or as a discrete indoor environment sensor. With the body heat sensor, it can detect when somebody is standing/sitting by a desk. -
Page 5: Main Features Of Ems Desk
Main features of EMS Desk • Compatible with LoRaWAN® specification 1.0.3 • Detects occupancy with an infrared temperature sensor • Can detect occupancy even if people are sitting/standing still • Measures ambient temperature • Measures ambient humidity • Detects acceleration •... -
Page 6: Installation
Installation The EMS Desk should be mounted under a desk or table where the occupancy needs to be measured. When installing, place the device far enough from the edge of the table to make sure it is not possible to reach by the user. Mounting close to the edge may result in damage to the device. -
Page 7: Service And Maintenance
Make sure that the sensor is not faced by direct sunlight or placed near air vents or other places where it may measure values that are not representative for the rest of the room. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 8: Sensor Configuration
NFC to make end-users unable to read or change settings on the sensor. NFC Configuration 1. Download ELSYS “Sensor Settings” application from Google Play and install it on a smartphone or tablet. The device must support NFC. 2. Enable NFC on the device and start the application. -
Page 9: Sensor Behavior
When you have written data to the sensor, let the sensor reboot and restart before trying to write again. You should always validate your settings by reading the NFC data after the sensor has restarted. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 10: Sensor Startup
After a successful connection to a network, the sensor sends a settings packet and enters sampling mode. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 11: Sampling Mode / Periodic Measurement
Note: The configured sending interval can be overridden by network limitations. Due to this, the spreading factor and sending interval settings might result in longer intervals than intended. Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 12: Desk Sensor
Desk sensor Elektroniksystem i Umeå AB Industrivägen 12, 90130 Umeå, Sweden E-mail: support@elsys.se ǀ Web: www.elsys.se... -
Page 13: Specifications
Specifications Sensor payload format The device uses the standard ELSYS payload format. Please see the specified document on our webpage. Power supply 3.6V DC Battery type AA 14505 (Li-SOCI EU directives compliance RoHS 2011/65/EU WEEE 2012/19/EU Radio protocol LoRaWAN® Radio frequency band... -
Page 14: Regulations
All information, including, but not limited to, information regarding the features, functionality, and/or other product specification, are subject to change without notice. ELSYS reserves all rights to revise or update its products, software, or documentation without any obligation to notify any individual or entity. ELSYS and ELSYS logo are trademarks of Elektroniksystem i Umeå...
