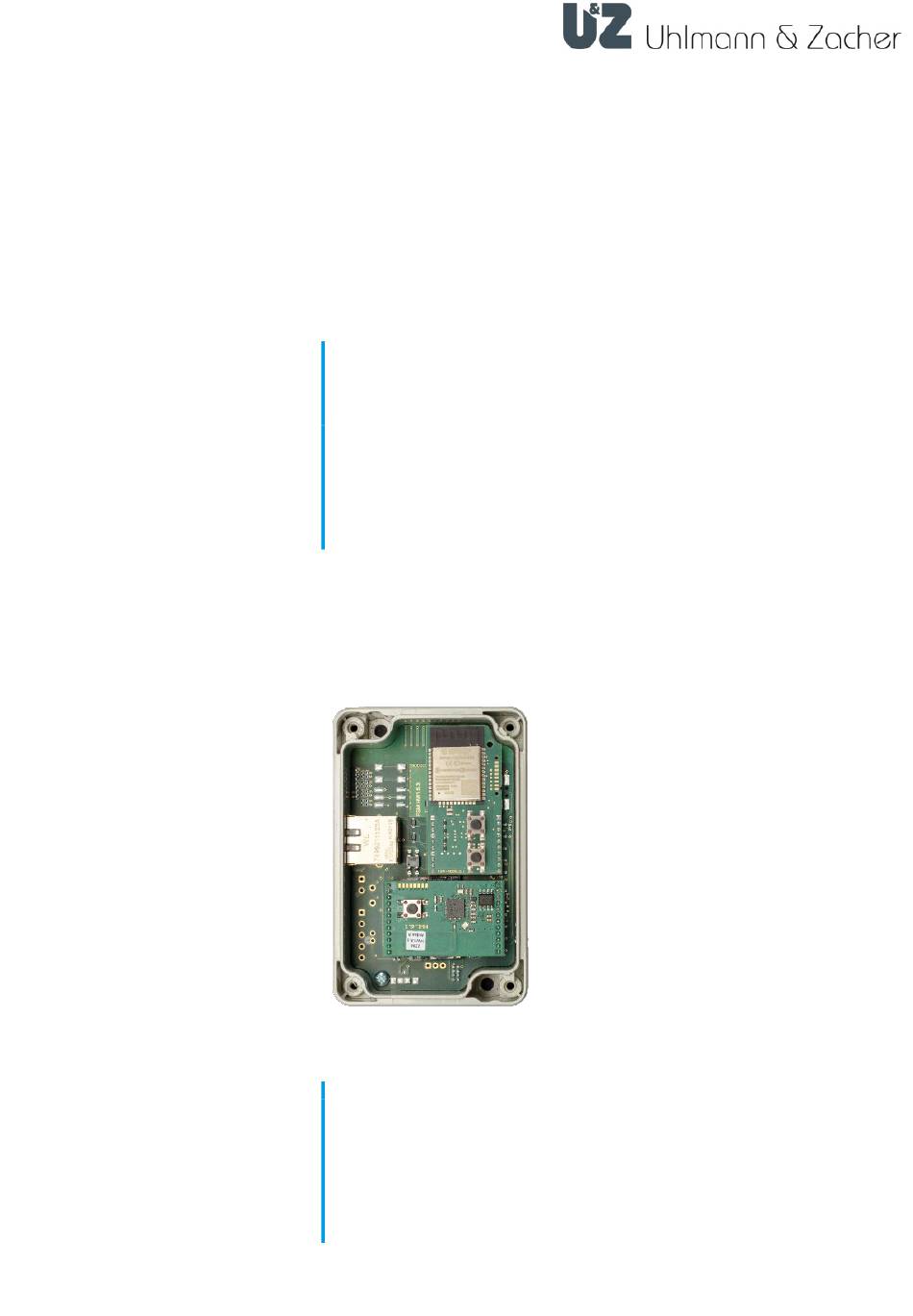

- Page 1 CX8946 Clex Online module LAN ® Bluetooth Low Energy Operating and assembly instructions...
- Page 2 CX8946 ABLE OF CONTENTS Legal Notice Operating and installation instructions (translated version) CX8946 Clex online module LAN Bluetooth Low Energy ® Document number: 16AC Version: 1.0 Date: 11.07.2023 Manufacturer Uhlmann & Zacher GmbH Gutenbergstraße 2–4 97297 Waldbüttelbrunn Germany Tel.: +49 931 40672-0 Email: contact@UundZ.de...
-
Page 3: Table Of Contents
CX8946 ABLE OF CONTENTS Table of contents About this document ................ 3 Warnings .................... 3 Symbols ....................3 Safety .................... 4 Proper use ..................4 Improper use ..................4 General safety information ..............4 Product description ................5 Technical data ..................5 Overview .................... -
Page 4: About This Document
LAN. They are part of the product and contain important information required for correct operation and maintenance. These operating and installation instructions apply for all versions of the CX8946 and are intended both for specialist personnel responsible for assembly and disassembly and for end customers. -
Page 5: Safety
CX8946 AFETY Safety Proper use The CX8946 online module LAN is used as an interface between Bluetooth ® Energy-capable Uhlmann & Zacher products and a third-party system via LAN. Improper use Products from Uhlmann & Zacher GmbH must not be used to lock up persons or animals, as well as aids that are vital in an emergency (for example defibrillators, emergency medication, fire extinguishers, etc.). -
Page 6: Product Description
CX8946 RODUCT DESCRIPTION Product description The Clex online module LAN in the Clex public system is used as an interface between Bluetooth ® Low Energy-capable Uhlmann & Zacher products and a third-party system via an Ethernet LAN connection. The product is used for the realization of radio opening, design of authorization changes and transfer of event protocols for Clex public or Clex private locking units. -
Page 7: Overview
CX8946 RODUCT DESCRIPTION Overview 0. Without figure: Housing cover and screw(s) 1 screw for Article number 8946 0000 0000 4 screws for Article numbers 8946 0000 0004 and 8946 0000 0005 1. Screw connection for housing cover 2. Mounting holes (screws not included in the scope of delivery) 3. -
Page 8: Structure And Scope Of Delivery
CX8946 RODUCT DESCRIPTION Structure and scope of delivery Variant gray rectangular housing... - Page 9 CX8946 RODUCT DESCRIPTION White oval housing...
- Page 10 CX8946 RODUCT DESCRIPTION White rectangular housing...
-
Page 11: Connection And Installation
Do not paint over, paste over or cover the online module. Power supply The CX8946 can only be supplied with current via the Ethernet cable PoE class 0. Requirements for Ethernet cabling When using the white oval housing and the white rectangular housing, a highly flexible flat cable or a patch cable with RJ45 angle plug should be used angled against the latching lug. -
Page 12: Installation
CX8946 ONNECTION AND INSTALLATION Installation Specify the installation position. Ensure that the surface is smooth, dry and firm enough. Do not place the units close to each other, to avoid radio interferences. Unscrew and remove the housing cover. ... -
Page 13: Commissioning
CX8946 OMMISSIONING Commissioning Connecting locking units To connect a locking unit with the online module, you have to perform the following steps: Manual pairing To this purpose users must have access to the circuit board of the module to be able to press the button. -
Page 14: Network Identification And Authentication
CX8946 OMMISSIONING are difficult to access (e.g. false ceiling). The locking unit to be connected must be brought to programming mode by using the service key card. Now the bus master must send the coupling command to the online module, which initiates a coupling. - Page 15 CX8946 OMMISSIONING Web interface Two of the four MAC addresses (numbers 1+2) can be viewed in the web interface: Start the web interface as described in the chapter "Configuration of the network interface". Tap on the button "Info".
- Page 16 OMMISSIONING 5.2.3 Configuration of the network interface To carry out own settings of the IP addresses, the CX8946 has a web interface. This can be addressed either via the LAN interface or the Wi-Fi interface of the CX8946. Starting via Wi-Fi For the configuration the CX8946 acts as a Wi-Fi Access Point (hotspot).
- Page 17 CX8946 OMMISSIONING Changing the Tap the button "Configure network". password Select the "HTTP Basic Auth" under the item "Configure portal protection". Select a secure password for the user "admin". Access to If the module is started by pressing the button in the Wi-Fi configuration mode as described above, the LAN interface is not active.
-
Page 18: Configuring The Online Module
CX8946 OMMISSIONING Configuring the online module The configuration of the online mode normally takes place through the connected third-party system and the corresponding function of the respective protocols. Individual parameters of the online module can also be set directly via a BLE connection or bus commands in the service mode. -
Page 19: Operation
CX8946 PERATION Operation If an authorized transponder is held in front of the connected locking unit, a BLE connection is established with the online module and, depending on the version, the authorization is requested via the corresponding protocol of the third-party system. -
Page 20: Signaling
CX8946 PERATION Signaling Meaning Blue Normal signaling after a reset 1x lighting up after reset Blue Module tries to wake up a locking unit in the "wake 2x/s flashing on radio" mode (WOR) or service mode Blue Module has connection to at least one paired... -
Page 21: Cleaning
CX8946 PERATION Cleaning Clean the housing with a soft, lint-free and only slightly moistened cloth. When cleaning do not use corrosive liquids or liquids that decompose plastic such as benzine, turpentine, etc. Sharp detergents may damage or discolor the surface. Do not use any detergents which act on a mechanical basis (e.g. -
Page 22: Disassembly And Disposal
CX8946 ISASSEMBLY AND DISPOSAL Disassembly and disposal Disassembly Disposal Do not dispose of the device with household waste, but at a municipal collection point for special electrical waste in accordance with European Directive 2002/96/EC. Dispose of packaging as environmentally friendly recycling. -
Page 23: Glossary
CX8946 LOSSARY Glossary Term Meaning Bluetooth ® Low Energy German "Verband der Elektrotechnik" [Registered Association of the Electrical, Electronic and Information Technology] Power supply via Ethernet (abbreviation of: Power over Ethernet) phg_crypt Standard protocol of the company phg Peter Hengstler...
