Zafferano swap LD1010B3 Quick Start Manual

swap
Rechargeable table lamp
1. Tips for use:
This product is exclusively for lighting purposes and:
A) It must not be exposed to heavy mechanical loads or contamination; B) It can be installed and used only after checking the state of the product;
check that is not dirty and has not been damaged during storage; C) Installation and maintenance must be carried out when the appliance is swi-
tched off; D) Any alterations to the product, any tampering and any failure to comply with the instructions provided may make the appliance hazar-
dous; E) When fully assembled, the lamp, reaches an IP65 rating, making it ideal for outdoor use. The lamp placed on the recharging base has an IP20
rating, making it unsuitable for outdoor use; F) All metal and plastic surfaces should be cleaned with a soft dry cloth; G) The company Zafferano shall
not be held liable for any damage caused due to its products being assembled in any manner that does not comply with the instructions provided.
2. Technical data of the lamp:
- Power: 2 W
- Volt: DC 5 V
- Color temperature: 2700 K
- Lumen lamp-LED: 267 lm
- Lithium battery pack included (see section accessories included); for instructions about how to replace the battery pack, please consult the
website: www.zafferanoitalia.com. Use only original batteries for replacement.
- Charge: 6 h
- Battery life: 13 h
- Class: III
- Protection rating: IP65
- CRI>90
3. Battery charger technical data:
- Contact charging base: INPUT/OUTPUT 5Vdc - 1A; cavo USB 1.2 Mt.
- Charger: INPUT AC100-240V 50/60Hz; OUTPUT 5Vdc- 1A.
- The lamp works correctly even when connected to the charging base.
- It is advisable to use the original charger and charging base. Alternatively, you can use a certified 1A max. charger.
4. Important:
- We recommend cleaning using only a soft, dry cloth.
- The support surface for the lamp must not exceed a 15° tilt or it will fall.
- The battery has an overload protection function.
- To preserve the integrity of the battery, we recommend keeping the charge between minimum 20% and maximum 80%; if the lamp is not used for
long periods, it is advisable to regularly charge/discharge the product.
- Please refer to local laws for the proper disposal and recycling of the battery.
DESIGNED BY ZAFFERANO SRL IN ITALY, MADE IN PRC • Zafferano srl, Viale dell'Industria, 26 - 31055 Quinto di Treviso - TV - Italia • For more information
and updates visit our website • www.zafferanoitalia.com
3
LD1010B3 white
LD1010N3 black
LD1010R3 corten
INCLUDED
Single-contact
charging station
This product contains a class C light source
LED DIMMER
2W • 267lm • 2700K
IP65
• 100-240V • 50-60Hz
CRI>90 • 5Vdc max 1A

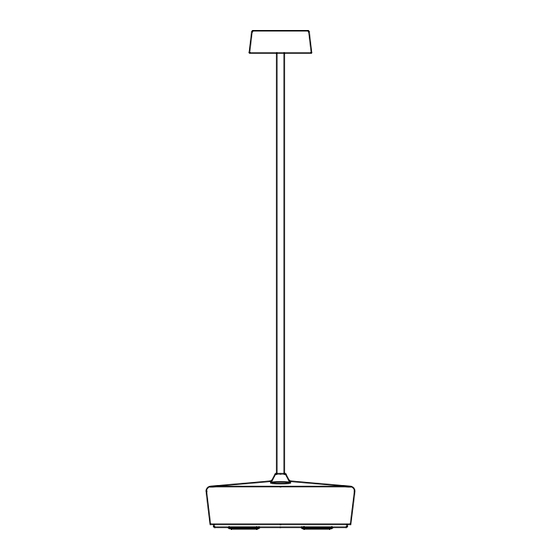

Ø 10 x h 32,5 cm / Ø 3,9 x h 12,8 in
NOT INCLUDED
LD0350RP
Multi-contact
charging base (max. 6 pc)
LD0340RA
Multi-socket USB
charger (8xUSB)
BAT04701906701902
Replacement battery pack
x 2 pz
